Barometric Pressure Sensor Breakout - BMP180 Retail

SKU: RTL-12623

$25.37 AUD, inc GST
$23.06 AUD, exc GST

More Views

Barometric Pressure Sensor Breakout - BMP180 Retail

SKU: RTL-12623

$25.37 AUD, inc GST
$23.06 AUD, exc GST

Retired Product

This product has been retired and kept here for reference.

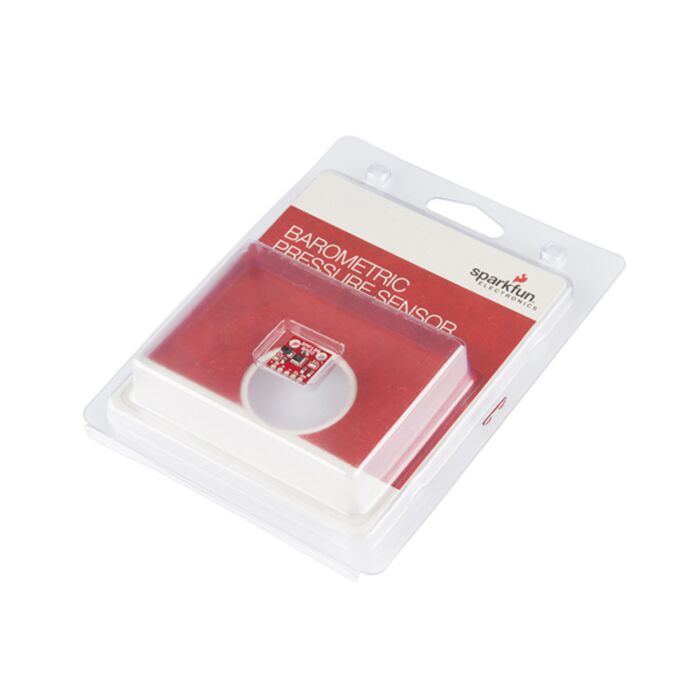

This is the retail version of our BMP180 Breakout Board. This is the same as our regular barometer, but in retail packaging.

This is a breakout board for the Bosch BMP180 high-precision, low-power digital barometer. The BMP180 offers a pressure measuring range of 300 to 1100 hPa with an accuracy down to 0.02 hPa in advanced resolution mode. It’s based on piezo-resistive technology for high accuracy, ruggedness and long term stability. These come factory-calibrated, with the calibration coefficients already stored in ROM. What makes this sensor great is that it is nearly identical to its former rev, the BMP085!

This breadboard-friendly board breaks out every pin to a 5-pin 0.1" pitch header. VCC can be from 1.8V to 3.6V and is 5V tolerant; we typically run it on a clean, regulated 3.3V supply. The analog and digital supplies (VDDD and VDDA) are tied to a single header pin, but are separately decoupled. It connects to a microcontroller via I²C bus (also known as TWI, or on the Arduino, the “Wire” library).

Features:

  • Digital two wire (I²C, TWI, “Wire”) interface
  • Wide barometric pressure range
  • Flexible supply voltage range (1.8V to 3.6V)
  • Ultra-low power consumption
  • Low noise measurements
  • Factory-calibrated
  • Includes temperature sensor
  • Low-profile with a small footprint
