Barometric Pressure Sensor - BMP180

SKU: COM-11823 Brand: Sparkfun

Retired Product

Search for an alternative

This product has been retired. It is no longer available, but this page has been kept for reference.

The BMP180 is a high-precision, ultra-low power digital barometer. It offers a measuring range of 300 to 1100 hPa with an absolute accuracy of down to 0.02 hPa. The BMP185 is based on piezo-resistive technology for EMC robustness, high accuracy and linearity as well as long term stability. What makes this sensor great is that it is nearly identical to its former rev, the BMP085!

This sensor supports a voltage supply between 1.8 and 3.6VDC. It is designed to be connected directly to a micro-controller via the I²C bus

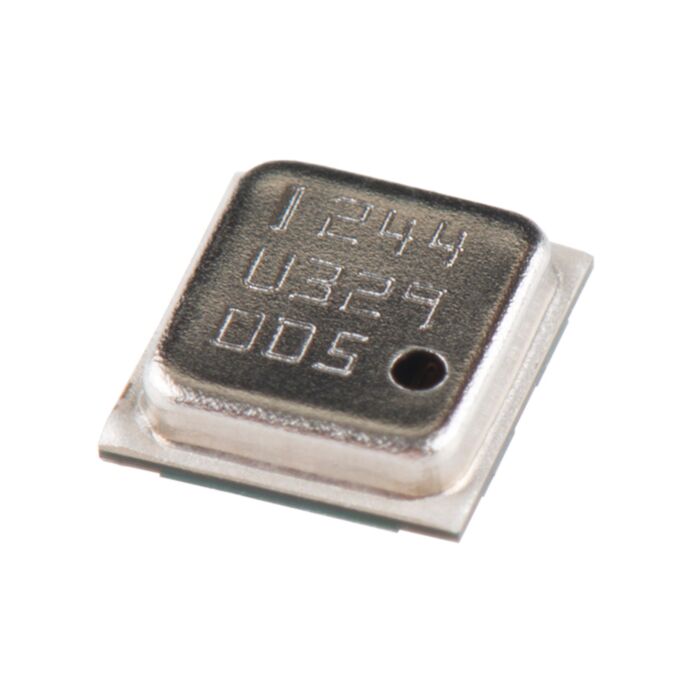

The BMP180 comes in an ultra-thin, 8-pin ceramic lead-less chip carrier (LCC) package.

Features:

Wide barometric pressure range
Digital two wire (I²C) interface
Flexible supply voltage range
Ultra-low power consumption
Low noise measurement
Fully calibrated
Temperature measurement included
Ultra-flat, small footprint

Documents:

Datasheet
