Audio Amplifier Kit - STA540

SKU: KIT-09612 Brand: Sparkfun

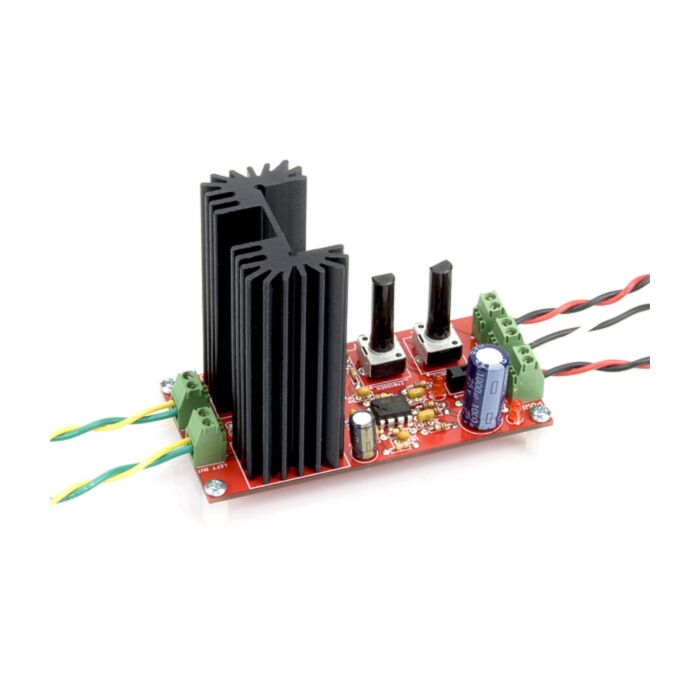

This is a stereo amplifier kit designed to make use of the STA540 power amplifier IC. Once this kit is completed you have a fully functional, two-channel audio amplifier, complete with a standby switch, volume control and indicator LEDs. The kit also includes a 6400BG heatsink for the STA540 to dissipate any damaging heat.

$75.35 AUD, inc GST

$68.50 AUD, exc GST

Quantity Discounts:

6-12 $66.45 (exc GST)
12+ $65.07 (exc GST)

Out of Stock

In this kit, the STA540 is configured as a dual bridge amplifier capable of delivering up to 2x 38W (4O at 18V). Power supplied to the kit directly powers the STA540 and should be within 8 to 22V.

This kit comes as a bag of parts, you’ll need to solder everything to the PCB. All components are through-hole, so it shouldn’t be too difficult; but this kit is a bit more complex than our other through-hole kits.

Kit Includes:

1x STA540 Audio Amplifier Kit PCB
1x STA540 Dual/Quad Power Amplifier
1x 6400BG Heatsink
1x LM358 Op Amp
3x LED - Basic Red
1x SPDT Mini Power Switch
Resistors:
- 5x 10K Ohm
- 3x 1.0K Ohm
- 2x 47k Ohm
- 2x 100k Ohm
- 2x 10k Giant Trimpot
Capacitors:
- 1x 0.1uF-50V-20%
- 1x 100uF - 25V
- 4x 0.47uF-25V
- 2x 10pF - 200V - 5%
- 3x 1uF - 50V - -20,+80%
- 1x 1000uF/25V
5x 2-Pin Screw Terminal - 3.5mm
4x Nylon Round Female Standoff
5x Phillips Screw with 4-40 Thread
1x #4-40 Hex Nut
