Arduino Uno Mini Limited Edition

SKU: DEV-19145 Brand: Sparkfun

Retired Product

Replaced by: Arduino

This product has been replaced by: Arduino
This product is no longer available. This page is only for reference.

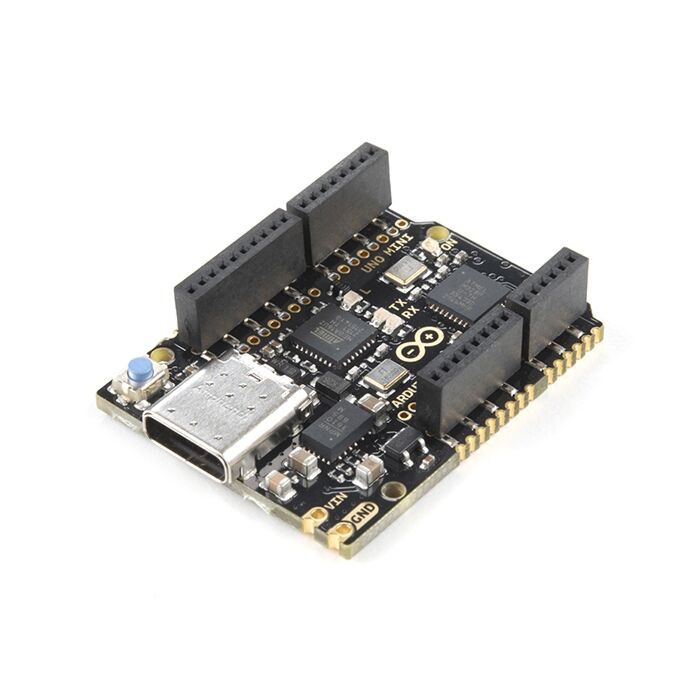

In celebration of the most popular Arduino board, the Uno, Arduino has made and Arduino Uno Mini! Featuring similar specs to the full-sized Uno and based on the ATMega328 microcontroller, this board is just as capable and is a neat momento for those of us who love the board or brand.

In addition to the classic microcontroller, the board features 14 digital pins and six analog, just like the full sized Uno. It uses 5V logic and has six PWM pins, too! The big difference besides size is the use of a USB Type C Connector instead of the classic USB-B.

Each item is unique and numbered on the PCB, and includes a hand-signed letter from the founders. It is a limited run, so Sparkfun will not have additional stock after it has sold out!

Note: Due to expected demand and its limited nature, there is a limit of two boards per customer for the Arduino Uno Mini Limited Edition.

Microcontroller: ATmega328P
USB connector: USB-C
Built-in LED Pin: 13
Digital I/O Pins: 14
Analog input pins: 6
PWM pins: 6
UART, I2C, SPI
Circuit operating voltage: 5V
Input voltage (limit): 6-12V
DC Current per I/O Pin: 20 mA
DC Current for 3.3V Pin: 50 mA
Main Processor: ATmega328P 16 MHz
USB-Serial Processor: ATmega16U2 16 MHz
Memory ATmega328P: 2KB SRAM, 32KB FLASH, 1KB EEPROM
Weight: 8.05 g
Width: 26.70 mm
Length: 34.20 mm

Features
