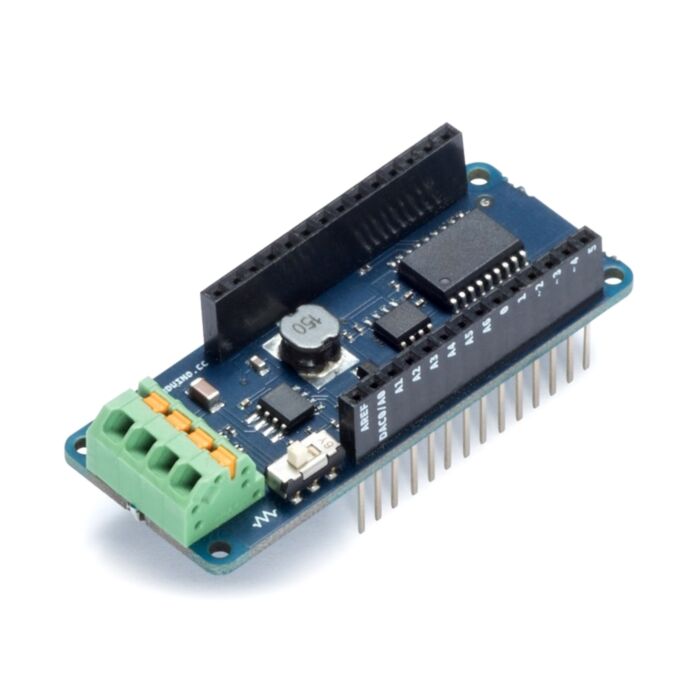

Arduino MKR CAN Shield

SKU: ASX00005 Brand: Arduino
Need to connect a device to a CAN (Controller Area Network) for communication within an automobile and with other CAN devices? The Arduino MKR CAN shield will provide automotive CAN connectivity.
$75.75 AUD, inc GST
$68.86 AUD, exc GST

In stock, ships same business day if ordered before 2PM
Delivered by Wed, 27th of Nov

Quantity Discounts:

  • 5-10 $68.17 (exc GST)
  • 10+ $67.49 (exc GST)
  • 30+ $66.80 (exc GST)
- +

3 from local stock, 1 supplier stock; your order will dispatch between Dec 1 to Dec 10. And yes, stock levels and lead times are accurate!

Shipping:

  • $7+ Standard (5+ days*, tracked)
  • $11+ Express (2+ days*, tracked)
  • FREE Pickup (Newcastle only - must order online*)

Shipping costs may increase for heavy products or large orders.

Exact shipping can be calculated on the view cart page.

*Conditions apply, see shipping tab below.

With this shield, you can easily connect to a CAN (Controller Area Network) Bus. Discover new possibilities of interaction between your Arduino MKR Board and the CAN ecosystem.

The MKR CAN shield can simplify the connection of the MKR boards with industrial systems and especially with automotive applications. This shield opens a new set of possible applications like smart vehicles, autonomous cars, and drones. A CAN connection also provides the possibility to connect an MKR board directly with several types of industrial grade sensors, motors, and displays.

Technical Specifications

Protocol CAN Bus
Interface SPI<
Circuit Operating Voltage 3.3V
Controller Microchip MCP2515 (datasheet)
Transceiver NXP TJA1049 (datasheet
Vin (screw connector) 7V - 24V
Vin (header) 5V
Compatibility MKR size
Switchable onboard termination resistor

OSH: Schematics

The Arduino MKR CAN Shield is open-source hardware! You can build your own board using the following files:

This product is listed in:

Arduino>Shields>MKR Shields
