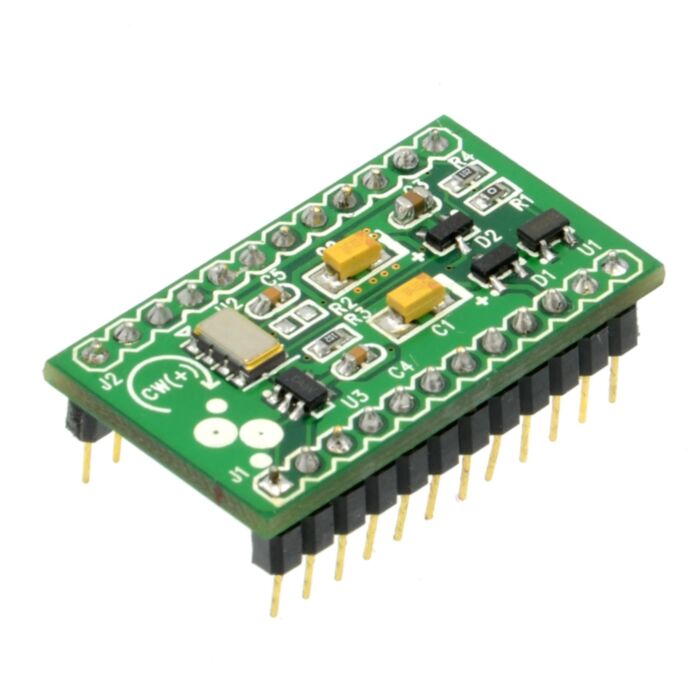

Angular Rate Sensor XV-3500CB Prototype PCB (DC-SS010)

SKU: CE05192

$27.45 AUD, inc GST
$24.95 AUD, exc GST

More Views

Angular Rate Sensor XV-3500CB Prototype PCB (DC-SS010)

SKU: CE05192

$27.45 AUD, inc GST
$24.95 AUD, exc GST


  • $6.95 Standard (2-4 days, tracked)
  • $9.95 Express (Overnight*, tracked)
  • $3 Economy Post* (3-7 days, no tracking)
  • FREE Pickup (Newcastle only)

Shipping costs may increase for heavy products or large orders.

Exact shipping can be calculated on the view cart page.

*Conditions apply, see shipping tab below.

This product has been retired and kept here for reference.

This sensor will output 0.65mV/deg/second. It has a deflection range of -100 deg/s to +100 deg/s and operates from either 3.3V or 5V.


  • Size:32(L) ×  19(W)  ± 0.2mm
  • For testing the angular rate of objects
  • Both analog voltage and I2C are supported as way of output
  • Double-row pin header is provided for connection with PCB for testing
  • Power supply by either 5V or 3.3V
  • Small and tiny sensor which can be attached on large objects
  • Low power consumption, as low as no more than 10mW in normal use


Operating Temperature 0℃to+80℃
Storage Temperature -10℃ to 85℃
Defection Range -100deg/s to +100deg/s
Scale Factor 0.65mV/deg/s

Voltage output of sensor in static

Typical Value
