Adafruit Sunken USB Type C Breakout Board - Downstream Connection

SKU: ADA6050 Brand: Adafruit

When you want a svelte USB C build, a 'sunken' type connector that straddles the PCBA will let you keep your build super slim. This breakout gives...

Special Price $4.39 AUD, inc GST

Regular Price $5.85 AUD, inc GST

$3.99 AUD, exc GST

Special pricing ends 17 March 2025

* this special may end earlier than shown

Available with a lead time
Expect dispatch between Dec 30 and Jan 03

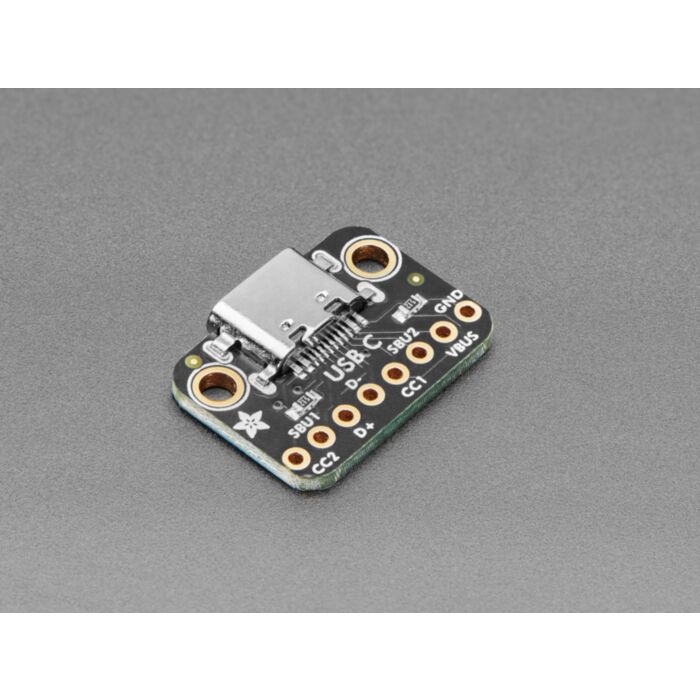

When you want a svelte USB C build, a 'sunken' type connector that straddles the PCBA will let you keep your build super slim. This breakout gives you all the contacts for a USB Type C connector, but lower than the classic 'horizontal' USB-C breakout and a vertical version.

USB C features a symmetric/reversible connector, more data pins, and higher current output capability. But, for most developers, the pin usage you know and love from older USB will work just fine. This breakout gives you all the basics you need and a resistor configuration that mimics classic USB 2.0 for a downstream connection

The two 5.1K resistors on the CC pins indicate to the upstream port to provide 5V and up to 1.5A (whether the upstream can supply that much current depends on what you're connecting to.

For most usages, you can connect VBUS to your 5V input, GND to ground, and D+ and D- as you expect. You can monitor the CC and SBU pins to determine cable polarity or send side-band data. Or leave them disconnected.

For more details, Adafruit like this Introduction to USB C app note.

Technical Details

Product Dimensions: 20.4mm x 14.7mm x 3.3mm / 0.8" x 0.6" x 0.1"

Product Weight: 1.0g / 0.0oz

This product is listed in:

Connectors & Sockets>USB
