Mini OLED USB C Power Analyzer
Available with a lead time
Expect dispatch between Jul 07 and Jul 09

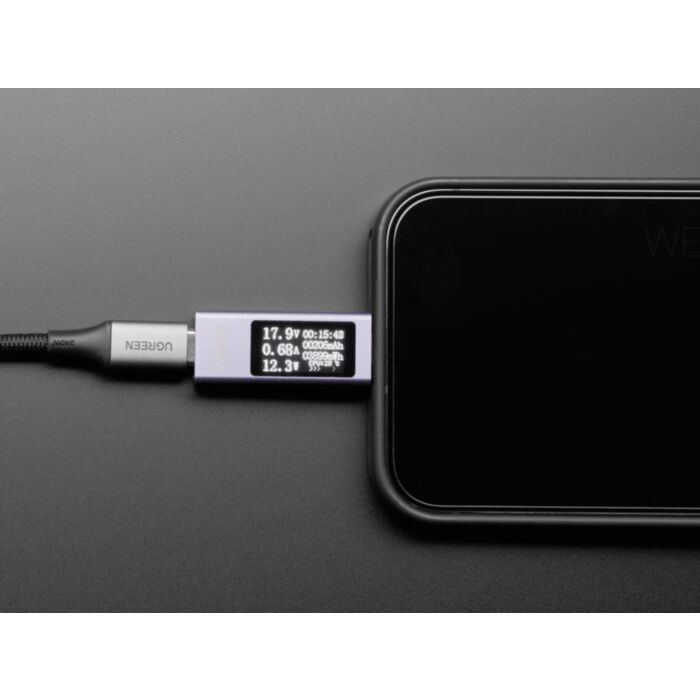

Here is a handy measurement data display to help you see in real time the load flowing into your devices as they charge via USB-C. You'll have immediate readings of voltages, amps, and watts along with their peaks.
This Tootsie Roll-sized power meter has a small OLED display (18mm x 10mm) that shows off voltage, watts, amps, and mAh and instantly reads the numbers for testing devices, such as chargers, cables, and devicess. It comes packed with a few nice extras, such as showing the ambient temperature (press the button on the back) and calculating the cumulative Watt-hours and milliAmp-hours over a running time. Basically, it's an all-in-one power management solution that doesn't require any calculation or data logging on your part.
Adafruit use it to help analyze Adafruit's USB PD projects, and also to do rough power measurements on circuits when Adafruit don't want to haul out Adafruit's power supply - or to do it on the go!
Pairs nicely with Adafruit's switch-able Adafruit USB C power delivery dummy board: get power over the terminal blocks and monitor voltage and current input.
If you need a power meter for projects with a non-USB connector, consider the Mini Power Meter with Voltage, Current, Watts, mAh & mWh Display.
This embedded content is from a site (www.youtube.com, flickr.com, etc) that does not comply with the Do Not Track (DNT) setting now enabled on your browser. Clicking through to the embedded content will allow you to be tracked by the embed provider.
Technical Details
Specifications:
- Voltage 4-30V
- Current 0-12A
- Timing 0-99 hours
- Power 0-360W
- Capacity 0-99999MAH
- Current Direction Indicator.
- Record the maximum power recorded.
- Record a maximum current measurement.
- Record a maximum voltage at a single point. 10: Electricity 0-99999WH
- CPU temperature
- Dimensions (excluding USB-C connector): 38mm x 16.4mm x 9mm
Product Weight: 7.8g / 0.3oz
