Adafruit Grove and Stemma QT FeatherWing for all Feathers

SKU: ADA5862 Brand: Adafruit
The Adafruit Grove and Stemma QT FeatherWing for all Feathers allows folks to use many Grove devices with Feather boards! It fits nicely on top and has 3x...
$10.45 AUD, inc GST
$9.50 AUD, exc GST

Available with a lead time
Expect dispatch between Jun 03 and Jun 06

Quantity Discounts:

  • 10-25 $9.12 (exc GST)
  • 25+ $8.84 (exc GST)
- +

0 from local stock, 1 supplier stock; your order will dispatch between Dec 1 to Dec 10. And yes, stock levels and lead times are accurate!

Shipping:

  • $6+ Standard (5+ days*, tracked)
  • $10+ Express (2+ days*, tracked)
  • FREE Pickup (Newcastle only - must order online*)

Shipping costs may increase for heavy products or large orders.

Exact shipping can be calculated on the view cart page.

*Conditions apply, see shipping tab below.

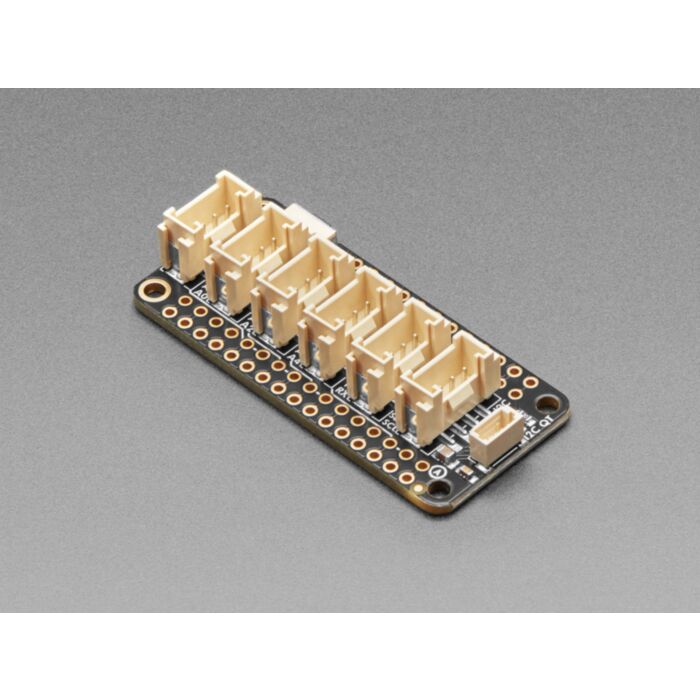

The Adafruit Grove and Stemma QT FeatherWing for all Feathers allows folks to use many Grove devices with Feather boards! It fits nicely on top and has 3x Analog/Digital connectors, 1x UART connector and 2x I2C connectors. Not a ton, but enough to get many small projects going! Adafruit even managed to fit a vertical Stemma QT port on the end for another I2C connection.

Grove is a plug-and-play system from Seeed that features a 4-pin 2mm pitch connector (that is not JST PH). One thing to note is that the same connector is used for analog, digital, I2C, PWM, or UART: power, ground and two signals. So before plugging in a Grove sensor please make sure that you have the right 'matching' port: UART Groves should only go into UART port. I2C Groves go only into the I2C ports. Also, not every Feather has 6 Analog inputs, for example the RP2040 Feathers have only 4, or have hardware UART that's available for peripheirals, like the ESP8266 - so be aware of the underlying Feather boards' capabilites!

Comes with an assembled FeatherWing and two pieces of 16-pin header. Some light soldering is required to attach the header so it can be plugged into your Feather or doubler.

Technical Details

Product Dimensions: 50.7mm x 23.0mm x 9.9mm / 2.0" x 0.9" x 0.4"

Product Weight: 6.4g / 0.2oz
