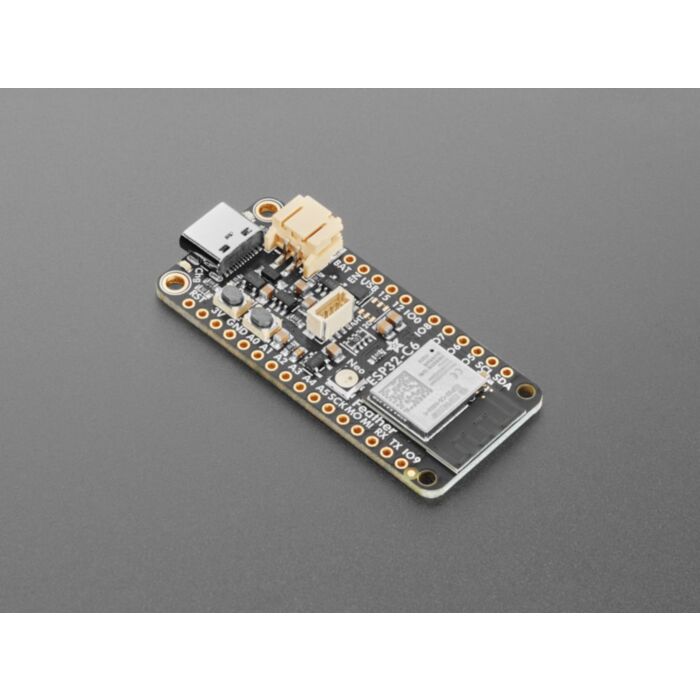

Adafruit ESP32-C6 Feather - STEMMA QT

SKU: ADA5933 Brand: Adafruit
The ESP32-C6 is Espressif’s first Wi-Fi 6 SoC integrating 2.4 GHz Wi-Fi 6, Bluetooth 5 (LE) and the 802.15.4 protocol. It brings the goodness you...
$28.90 AUD, inc GST
$26.27 AUD, exc GST

Available with a lead time
Expect dispatch between Dec 02 and Dec 04

Quantity Discounts:

  • 10-25 $25.22 (exc GST)
  • 25+ $24.44 (exc GST)
- +

0 from local stock, 1 supplier stock; your order will dispatch between Dec 1 to Dec 10. And yes, stock levels and lead times are accurate!

Shipping:

  • $7+ Standard (5+ days*, tracked)
  • $11+ Express (2+ days*, tracked)
  • FREE Pickup (Newcastle only - must order online*)

Shipping costs may increase for heavy products or large orders.

Exact shipping can be calculated on the view cart page.

*Conditions apply, see shipping tab below.

The ESP32-C6 is Espressif’s first Wi-Fi 6 SoC integrating 2.4 GHz Wi-Fi 6, Bluetooth 5 (LE) and the 802.15.4 protocol. It brings the goodness you know from the low-cost C3 series and improves it with Zigbee/802.15.4 at 2.4Ghz. That means it could make for great Matter development hardware!

Adafruit took Adafruit's Feather ESP32-S2 and swapped out the 'S2 for a C6. Plus some re-routing and here's what Adafruit have got: a C6 Feather with lots of GPIO, lipoly charging and monitoring with the MAX17048, NeoPixel, I2C Stemma QT port, and a second low-quiescent LDO for disabling the I2C and NeoPixel when Adafruit want ultra-low power usage - as low as 17uA in deep sleep.

One thing to watch for is that, like the C3, the C6 does not have native USB. It does have a 'built in' USB Serial core that can be used for debugging, but it cannot act like a mouse, keyboard, or disk drive. That means if you are running CircuitPython you will need to use WiFi, Bluetooth or WebSerial for transferring files back and forth rather than drag-and-dropping to a drive. Ditto for the bootloader side, this chip cannot run UF2.

Another thing to be aware of, is  the ESP32-C6 does not have as many GPIO as the ESP32-S2 or ESP32-S3, so A2 is the same GPIO pin as IO6 and A3 is the same pin as IO5. However, this gives it the most compatibility with Adafruit's existing FeatherWings.

Feather Specifications:


Technical Details

RoHS 2 2011 65 EU Compliant
