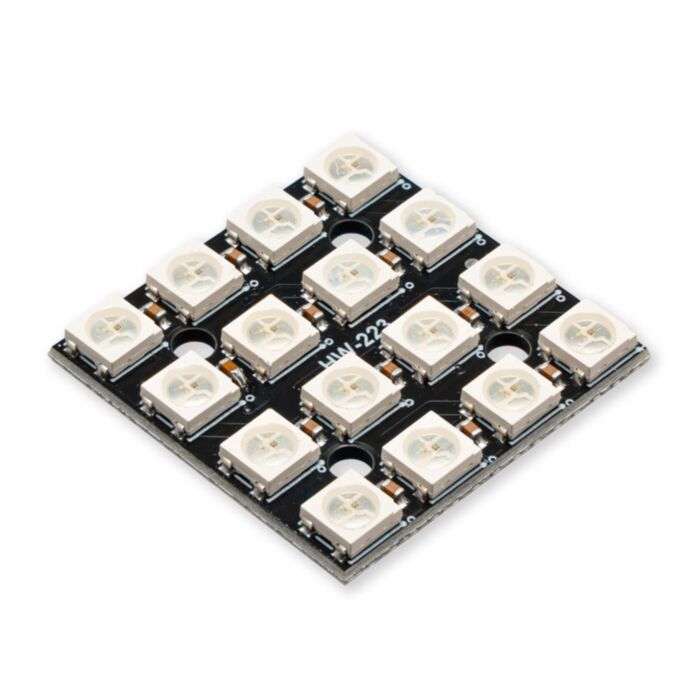

4x4 Addressable LED Matrix
Add some sparkle to your projects!
In stock, ships same business day if ordered before 2PM
Delivered by Tue, 26th of Nov
Perfect for showing basic data or making some flashy cosplay pieces!
This 4x4 WS2812 Matrix has lots of libraries for different development boards.
Talk to each pixel individually through the single-wire protocol.
Specifications
- 4x4 WS2812 LED's
- 16 million colours per pixel (24-bit colour)
Examples
Raspberry Pi Pico - Micropython
import glowbit
from utime import sleep
def remap_4x4_zigzag(x, y):
if 0 <= x <= 3 and 0 <= y <= 3:
if y == 0:
return x
elif y == 1:
return 7 - x
elif y == 2:
return 8 + x
elif y == 3:
return 15 - x
else:
raise ValueError("Invalid input: x and y must be between 0 and 3")
matrix = glowbit.matrix4x4(brightness = 20, pin=16, mapFunction = remap_4x4_zigzag)
######## Set individual pixels ########
matrix.pixelSetXY(1,1, matrix.white())
matrix.pixelsShow()
sleep(1)
######## Blank pixels ########
matrix.pixelsFill(matrix.black())
matrix.pixelsShow()
sleep(1)
######## Set all ascending ########
print('testin')
matrix.pixelsFill(matrix.black())
for i in range(4):
for j in range(4):
matrix.pixelSetXY(j,i, matrix.white())
matrix.pixelsShow()
sleep(.2)
matrix.pixelsShow()
sleep(1)
######## Graphing data ########
matrix.pixelsFill(matrix.black())
matrix.pixelsShow()
graph = matrix.graph1D(originX = 0, originY = 3, length = 4, direction = "Up", minValue = 0, maxValue = 255)
for i in range(255):
matrix.updateGraph1D(graph, i)
matrix.pixelsShow()
for i in range(255, 0, -1):
matrix.updateGraph1D(graph, i)
matrix.pixelsShow()
######## Demo ########
matrix.demo()
