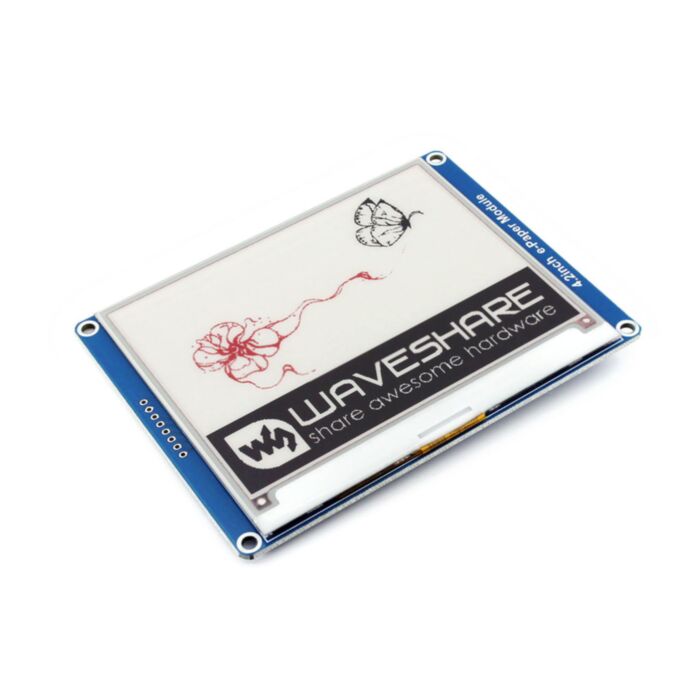

4.2 inch 3-Colour E-Ink display module (400x300 Pixels)

SKU: WS-13454 Brand: Waveshare

400x300 pixel, 4.2inch E-Ink display module, three-color, SPI interface

$60.40 AUD, inc GST

$54.91 AUD, exc GST

In stock, ships same business day if ordered before 2PM
Delivered by Tue, 25th of Feb

Quantity Discounts:

6-12 $52.71 (exc GST)
12+ $51.06 (exc GST)

Details

400x300, 4.2inch E-Ink display module, three-color, SPI interface

Overview

This is an E-Ink display module, 4.2inch, 400x300 resolution, with embedded controller, communicating via SPI interface, supports red, black, and white three-color display.

Due to the advantages like ultra low power consumption, wide viewing angle, clear display without electricity, it is an ideal choice for applications such as shelf label, industrial instrument, and so on.

Features

No backlight, keeps displaying last content for a long time even when power down
Ultra low power consumption, basically power is only required for refreshing
SPI interface, for connecting with controller boards like Raspberry Pi/Arduino/Nucleo, etc.
Onboard voltage translator, compatible with 3.3V/5V MCUs
Comes with development resources and manual (examples for Raspberry Pi/Jetson Nano/Arduino/STM32)

Specifications

Operating voltage: 3.3V~5V
Interface: 3-wire SPI, 4-wire SPI
Outline dimension: 103.0mm × 78.5mm
Display size: 84.8mm × 63.6mm
Dot pitch: 0.212 × 0.212
Resolution: 400 × 300
Display color: red, black, white
Grey level: 2
Full refresh time: 15s
Refresh power: 26.4mW(typ.)
Standby power: <0.017mW
Viewing angle: >170°

Interface

SYMBOL	DESCRIPTION
VCC	3.3V~5V
GND	Ground
DIN	SPI MOSI pin
CLK	SPI SCK pin
CS	SPI chip selection, low active
DC	Data/Command selection (high for data, low for command)
RST	External reset, low active
BUSY	Busy status output, low active

Dimensions

Development Resources

Wiki : www.waveshare.com/wiki/4.2inch_e-Paper_Module_(B)
