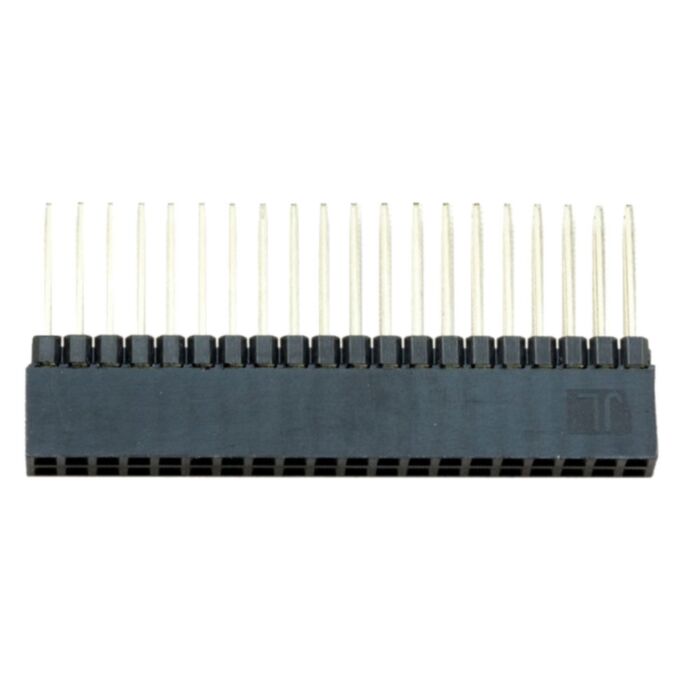

Stack multiple HATs & breakouts boards onto your Raspberry Pi Model B+/2/3 with this custom-made extra-tall 2 x 20 pin female header!
This is a push fit version of our extra tall header designed to match with our Raspberry Pi HAT Socket Headers. The pins are extra tall (14.70mm from the main body to end of the pin), and extra fat (0.65mm x 0.70mm) to ensure a good solid fit with socket headers!
The header features a single black shroud, which makes the body of the header 10.60mm tall when placed on a Pi - enough to clear the Ethernet & USB jacks. The black shrouds are not removable on the push fit version of our extra tall headers. We've also got a 14mm mounting kit for use with this header.
If you need an extra tall header with slimmer pins for soldering applications we also stock a solderable version designed to be soldered to breakout boards/HATs.
