If you don't have room for a monitor there is also a built in 3.5" colour screen.

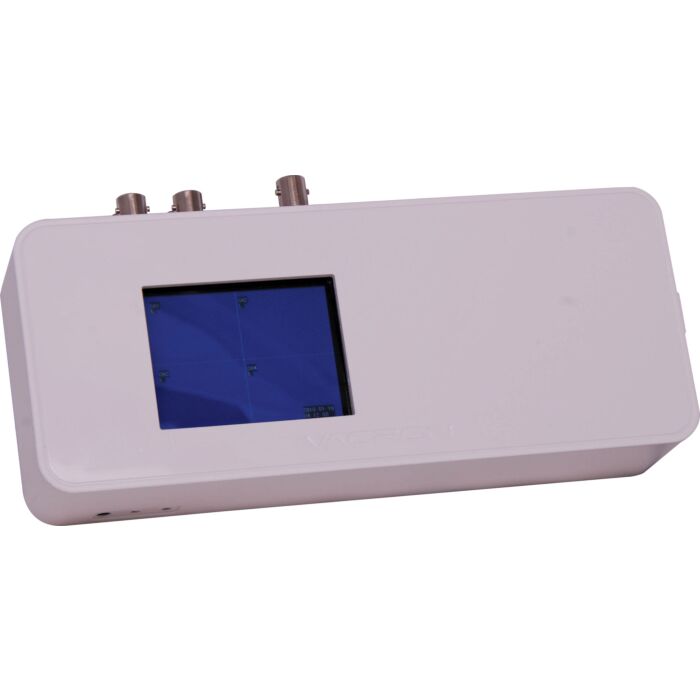

The S 9332 is perfect for a small home or office installation with all the features you need.
Features
- Advanced H.264 compression technology to provide maximized recording time.
- Friendly user-interface to provide best operability.
- Sleek and space-saving modern design.
- Smart HDD installation.
- Eco-smart, energy-saving design to reduce the power consumption and running costs.
- Ideal for HOME/SOHO surveillance security.
- Built in colour screen
Specifications
- Video format: NTSC, PAL
- Video input: 4 Channel BNC
- Video output: BNC/VGA
- Display Resolution (video output): 720 x 480 NTSC, 720 x 576 PAL
- Recording resolution
- Highest: 720 x 480 NTSC, 720 x 576 PAL
- High: 720 x 240 NTSC, 720 x 288 PAL
- Normal: 360 x 240 NTSC, 360 x 288 PAL
- Recording frame rate: 120fps NTSC, 100fps PAL
- Compression algorithm: H.264
- Operating system: Embedded linux
- Pentaplex: Live / Record / Playback / Network / Mobile Phone
- Recording mode: Manual, schedule, event
- Schedule recording: Full recording, motion, manual recording
- Status indicators: Power, HDD
- Event mode: Motion trigger, video loss
- Recording duration: 10-60 seconds
- Playback mode:
- Fast forward: x2, x4, x8, x16, x32 multiple speed
- Slow forward: 1/2, 1/4, 1/8 multiple speed
- Fast rewind: x2, x4, x8, x16, x32
- Frame by frame playback: forward
- Search function: time, event
- Network protocol: TCP/IP, PPPoE, DHCP, SMTP, DDNS, 3G
- HDD Type: Sata 2.5" HDD x 1 (Not included)
- HDD Management: Automatic
- Backup device: USB 2.0 Flash drive
- Firmware update: Host USB
- Control mode: IR Remote control, USB Mouse GUI, Internet
- Network Control: Internet explorer
- Network function: Live display, playback, system setup
- Power supply: 5V DC plugpack supplied
- Dimensions: 219 x 97 x 43mm
- Weight (including HDD): ≈500g
Downloads
