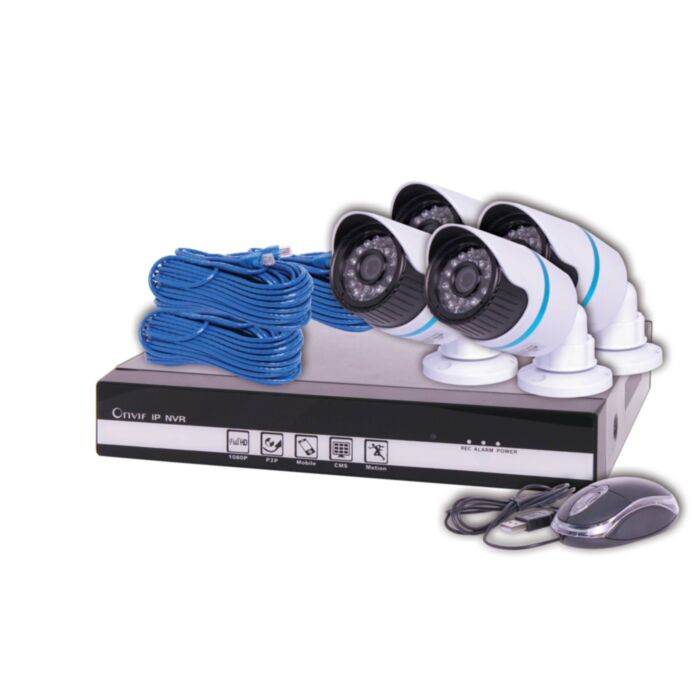

This incredibly easy to set up package includes a four channel network video recorder (NVR), four 720p HD bullet cameras and ethernet connection leads (18m). Installation is made easier than traditional CCTV systems thanks to the ‘power over ethernet’ feature which sends power to the cameras directly from the NVR unit over the included UTP cabling. No need to worry about having power where the camera is installed! It offers simple plug and play set up with the NVR automatically scanning for connected cameras when switched on. The NVR is equipped with HDMI, VGA and composite outputs for direct connection to a monitor. Audio input, output and USB backup are also available. Pentaplex operation allows simultaneous live viewing, recording, playback, backup and remote viewing. A single SATA hard drive can be fitted internally. Includes power supply.
The package includes day/night infra-red bullet cameras with adjustable mounting brackets. Each camera has 20m IR night time IR coverage with a rating down to 0.001 lux. Cameras are powered over ethernet.
Link to Android phone app
Vacron NVR Viewer - Link to Google Play Store
Link to iOS app
Vacron NVR iOS app - Link to iTunes Store
NOTE:
WE ARE UNABLE TO PROVIDE DETAILED TECHNICAL SUPPORT FOR THIS PRODUCT AS INSTALLATIONS VARY GREATLY IN CONFIGURATION. WE RECOMMEND OUR DVR'S BE INSTALLED BY A SECURITY PROFESSIONAL AS INSTALLATION CAN BE A COMPLEX PROCESS REQUIRING TECHNICAL KNOWLEDGE.
Specifications
- Bullet Camera Specifications
- 1080p HD
- 3.6mm lens f2.0 lens
- 20m IR night time coverage
- Ethernet socket with PoE
- 0.001 lux
- IP66 rated for outdoor use
- 1/3” HDIS sensor
- NVR Specifications
- Operating system: Embedded LINUX OS
- Video compression format: H.264
- Display Image Resolution: 720P@30fps;960P@30fps;1080P@30fps
- Playback Image Resolution: 720P@30fps;960P@30fps;1080P@30fps
- Motion Detection: can setup 192(16×12)pcs motion detection area each channeland multi-level sensitivity(1-6 levels adjustable)
- Recording Mode: Manual Recording, Motion Detection Recording, Time Recording, Alarm Recording
- Recording storage: HDD,Network
- Frame rate: 30 fps NTSC;25fps PAL
- Recording Playback: Max suport 4ch 720P
- Backup Mode: Support HDD,USB Flash Disk store & backup
- Network Video Input: 4ch
- Video output: 1ch VGA and 1ch HDMI
- Network: 1x10/100Mbps,RJ45 port
- USB: 2 USB 2.0 ports
- HDD Support: 1 x Internal 3TB SATA HDD
- Power: DC +12V /4A
- Power consumption: 16W-18W(not include HDD and PoE)
- Operation temperature: 0℃－＋55℃
- Operation humidity: 10%－90%
- Dimension: 252*213*42mm(0.8u height)
- Weight: 1.5--1.8KG(not include HDD)
