3pi+ 2040 Control Board

SKU: POLOLU-5006 Brand: Pololu

This is the control board for the 3pi+ 2040 robot, and it is included as part of the Standard Edition, Turtle Edition, and Hyper Edition 3pi+ 2040 kits...

$119.95 AUD, inc GST

$109.05 AUD, exc GST

Available with a lead time
Expect dispatch between May 16 and May 20

Quantity Discounts:

5-10 $105.77 (exc GST)
10+ $103.59 (exc GST)

The 3pi+ 2040 Control Board is designed to be assembled with a 3pi+ Chassis Kit, a pair of 6V Micro Metal Gearmotors with extended motor shafts, and a graphical OLED display to create a 3pi+ 2040 robot. This product is primarily intended as a replacement product for the 3pi+ 2040 robots and kits that already include it or for those who want to build a 3pi+ 2040 robot with different gearmotor versions than the ones offered with those complete kits and assembled robots.

This control board is already included as part of the following 3pi+ 2040 assembled robots and kits:

Included components

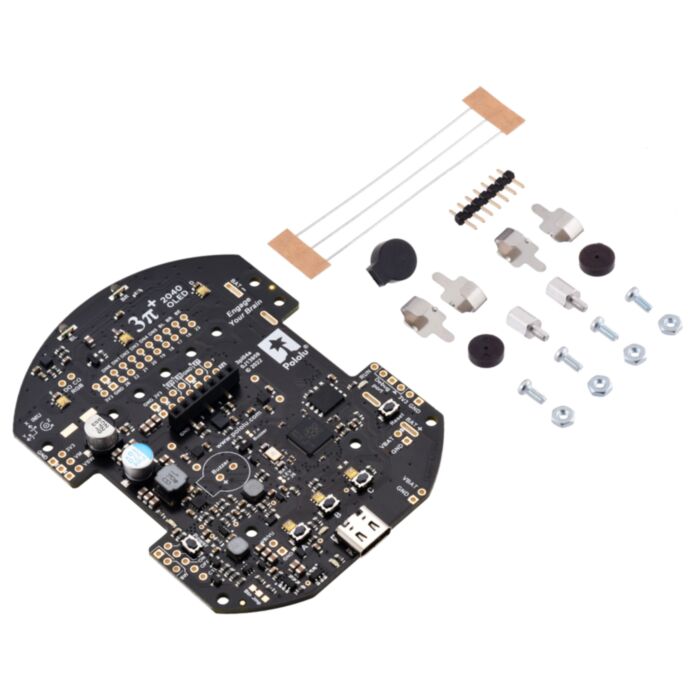

The 3pi+ 2040 Control Board ships with all of its surface-mount components populated, and it includes the following through-hole parts and mounting hardware:

one buzzer
jumper wires for soldering motors to the board
two magnetic encoder discs
one low-profile 1×7 male header for use with a graphical OLED display (not included)
four single battery contacts
four 3/16" #2-56 screws, two 1/4" #2-56 standoffs, and four nuts for mounting the board to a 3pi+ Chassis and an OLED display to the board

Please note that assembly (including soldering) is required; see the user’s guide for assembly instructions.

What else you will need

To build a robot with the 3pi+ 2040 Control Board, you will need a few additional parts:

a 3pi+ Chassis Kit
two Micro Metal Gearmotors with extended motor shafts (6V MP or 6V HPCB versions recommended)
a graphical OLED display (this is not required for operation, but it is strongly recommended)
four AAA batteries: the 3pi+ chassis and control board work with both alkaline and NiMH batteries, though Pololu recommend rechargeable NiMH cells
a USB A to Micro-B cable to connect the robot to your computer for programming and debugging
tools to help with kit assembly; see the user’s guide for a list of specific tools

Optional accessories

You might also consider getting these for your 3pi+ 2040 robot:

more sensors
connectors (headers, jumper wires, etc) for adding those sensors or other peripherals to the 3pi+ 2040 expansion ports

Dimensions

Size:	2.6" × 3.4"
Weight:	20 g¹

General specifications

Processor:	RP2040 @ 125 MHz
RAM size:	264 Kbytes
Program memory size:	16 Mbytes
Motor driver:	DRV8838
Motor channels:	2
Minimum operating voltage:	2.7 V
Maximum operating voltage:	8.5 V
Continuous output current per channel:	1.8 A
Logic voltage:	3.3 V
Reverse voltage protection?:	Y
External programmer required?:	N

Identifying markings

PCB dev codes:	3pi04a
Other PCB markings:	0J13959

Notes:

1: Without included hardware.

Documentation and other information

Pololu 3pi+ 2040 User’s Guide

User’s manual for the Pololu 3pi+ 2040 robot.

File downloads

Schematic diagram of the 3pi+ 2040 Control Board (305k pdf)
Pinout and power distribution diagrams of the 3pi+ 2040 Control Board (1MB pdf)
Dimension diagram of the 3pi+ 2040 Control Board (2MB pdf)
Dimension diagram of the 3pi+ 2040 Robot (2MB pdf)
3D model of the 3pi+ 2040 Control Board (27MB step)
3D models of the 3pi+ 2040 Robot (18MB zip)

This file contains 3D models (in the STEP file format) of the 3pi+ 2040 Robot. These models use a simplified model of the control electronics to reduce the file size. A more detailed model of the 3pi+ 2040 Control Board (27MB step) is available separately.
Front, top, and side views of the 3pi+ 2040 Robot (420k zip)

These DXF drawings make it possible to get various dimension measurements of the 3pi+ 2040 Robot.
Drill guide for the 3pi+ 2040 Control Board (65k dxf)

This DXF drawing shows the locations of all of the board’s holes.
