3m Digital Thermal Tank Sensor Vertical Tank - DS18B20

SKU: 017-MB-SM17115

$11.18 AUD, inc GST
$10.16 AUD, exc GST

More Views

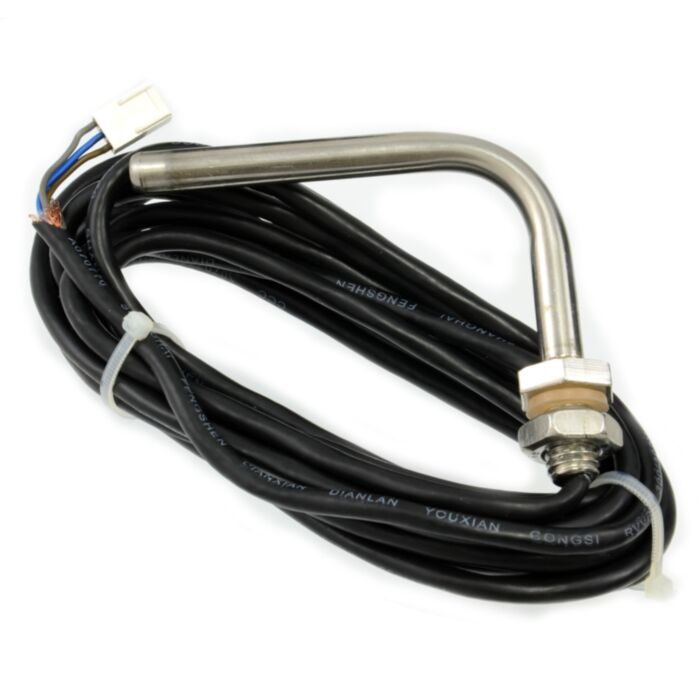

3m Digital Thermal Tank Sensor Vertical Tank - DS18B20

SKU: 017-MB-SM17115

$11.18 AUD, inc GST
$10.16 AUD, exc GST

Shipping:

  • $6.95 Standard (2-4 days, tracked)
  • $8.95 Express (Overnight*, tracked)
  • $3 Economy Post* (3-7 days, no tracking)
  • FREE Pickup (Newcastle only)

Shipping costs may increase for heavy products or large orders.

Exact shipping can be calculated on the view cart page.

*Conditions apply, see shipping tab below.

This product has been retired and kept here for reference.

This Maxim-made item is a digital thermo probe or sensor that employs the DALLAS 18B20. The special probe makes it easy to fit inside a tank. It can measure a wide range of temperature from –55°C to +125°C (–67°F to +257°F). It can be used in the water tanks and fuel tanks. Last but not least, like other common thermo probe, its stainless steel probe head makes it suitable for any wet or harsh environment.

Specification:

  • Power supply range: 3.0V to 5.5V
  • Operating temperature range:-55°C to +125°C (-67°F to +257°F)
  • Storage temperature range:-55°C to +125°C (-67°F to +257°F)
  • Accuracy over the range of -10°C to +85°C: ±0.5°C.
  • 3-pin 2510 Female Header Housing:
    Red - VCC
    Black - GND
    Yellow - DATA
  • Length of wire: 3m
  • Stainless steel sheath

Applications:

  • Thermostatic Controls
  • Industrial Systems
  • Consumer Products
  • Thermometers
  • Any Thermally Sensitive System
