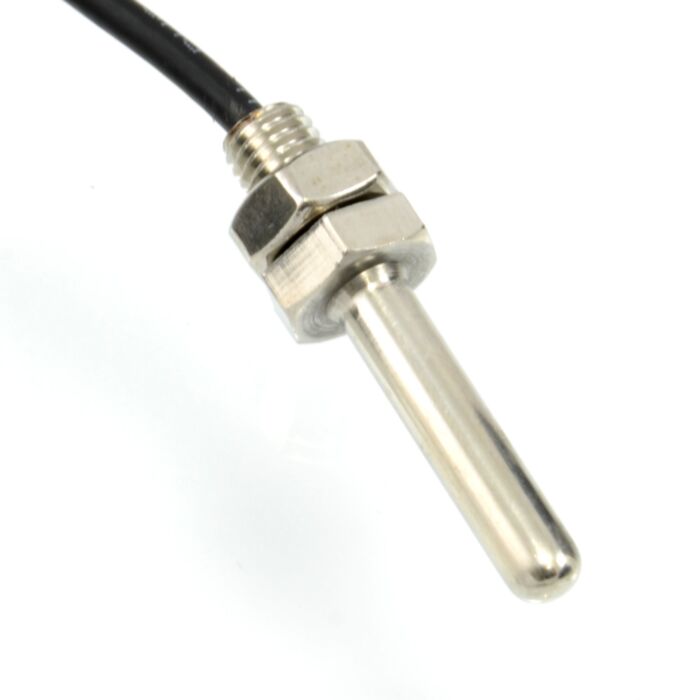

3m Digital Thermal Tank Sensor Horizontal - DS18B20

SKU: 017-MB-SM17116

$11.18 AUD, inc GST
$10.16 AUD, exc GST

More Views

3m Digital Thermal Tank Sensor Horizontal - DS18B20

SKU: 017-MB-SM17116

$11.18 AUD, inc GST
$10.16 AUD, exc GST
1 reviews 0 5 5


  • $6.95 Standard (2-4 days, tracked)
  • $9.95 Express (Overnight*, tracked)
  • $3 Economy Post* (3-7 days, no tracking)
  • FREE Pickup (Newcastle only)

Shipping costs may increase for heavy products or large orders.

Exact shipping can be calculated on the view cart page.

*Conditions apply, see shipping tab below.

This product has been retired and kept here for reference.

This Maxim-made item is a digital thermo probe or sensor that employs DALLAS 18B20. This probe head is horizontal. The special probe makes it be fixed to the inside of a tank easily. It can measure a wide range of temperature from –55°C to +125°C (–67°F to +257°F). It can be used in the water tanks and the fuel tanks. Last but not least, like other common thermo probe, its stainless steel probe head makes it suitable for any wet or harsh environment.


  1. Power supply range: 3.0V to 5.5V
  2. Operating temperature range:-55°C to +125°C (-67°F to +257°F)
  3. Storage temperature range:-55°C to +125°C (-67°F to +257°F)
  4. Accuracy over the range of -10°C to +85°C: ±0.5°C.
  5. 3-pin 2510 Female Header Housing:
    Red - VCC
    Black - GND
    Yellow - DATA
  6. Length of wire: 3m
  7. Stainless steel sheath


  1. Thermostatic Controls
  2. Industrial Systems
  3. Consumer Products
  4. Thermometers
  5. Any Thermally Sensitive System


This product is listed in:

Documentation and Resources:
  • The Maker Revolution
  • The Maker Revolution celebrates the creation of new devices and the modification of existing ones - the transition from a consumer buying goods to eventually having a major part in their creation. The Maker Revolution places strong emphasis on free (...

Product Comments

Customer Reviews

  1. Review by Alex verified purchaser

    Pros; it comes with shielded cable =D, is hooked with the three wire hookup so your not forced to use parasite power mode which is sllllllloooow.
    Con's; no gasket for the fitting. (Posted on 9/06/2016)
