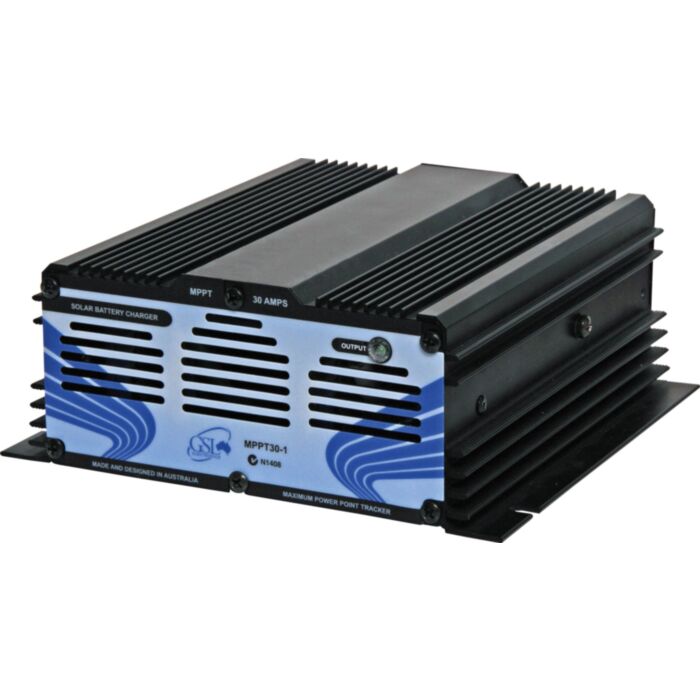

30A Programmable MPPT Solar Charger

SKU: AN2032

Retired Product

Search for an alternative

This product has been retired. It is no longer available, but this page has been kept for reference.

These programmable models have all of the features of the above MPPT chargers, plus the option of remote monitoring and control. The optional N 2050 remote displays system parameters such as instantaneous battery charge current, battery charging ampere hours, instantaneous load current , load ampere hours usage, PV voltage, and MPPT internal temperature. It will also allow programming of the output voltage from 5V to 70V, and set battery disconnect voltage. These units feature a night load function suitable for powering loads only required at night or in low light conditions.

Features

Optional remotemonitor & programming panel (N 2050)
LED status indicator
Thermal protection
Auto battery voltage detect
Up to 20% improved panel efficiency
Suits vented or sealed lead acid batteries
High efficiency, typically 97%

GSL® Solar Chargers - Designed in Australia
Maximum Power Point Trackers (MPPT): These revolutionary MPPT chargers incorporate technology that won the prestigious ‘2008 EDN innovation award’. They are specialised switchmode converters that maximise the electrical power attainable from a solar panel, while optimising the battery charging process. MPPTs can provide 20% more charging current than conventional regulators. The GSL MPPT chargers automatically detect battery voltage and are designed to operate with panel input voltages much higher than the battery voltage. Panel voltage must be about 5V above the battery absorption voltage. That is, a 12V lead acid battery has a maximum charging voltage of about 14.4V, and for best panel efficiency will require a panel input voltage of at least 18V. GSL MPPTs are an ideal upgrade from conventional solar regulators. The higher efficiency may be offset with a smaller panel size to reduce costs.

Specifications

Input voltage: 15-95V (cell open circuit voltage)
Output voltages: 13.5V / 27V / 54V float
14.5V / 29V / 58V absorption (vented LA batt.)
14.2V / 28.4V / 56.8V absorption (SLA batt.)
Output: 30A max (1700W)
No load (Quiescent current): 0.05A
Dimensions: 170 x 145 x 67mm
Connections: 8 gauge 7.7mm² wire

Downloads

Operating Instructions
