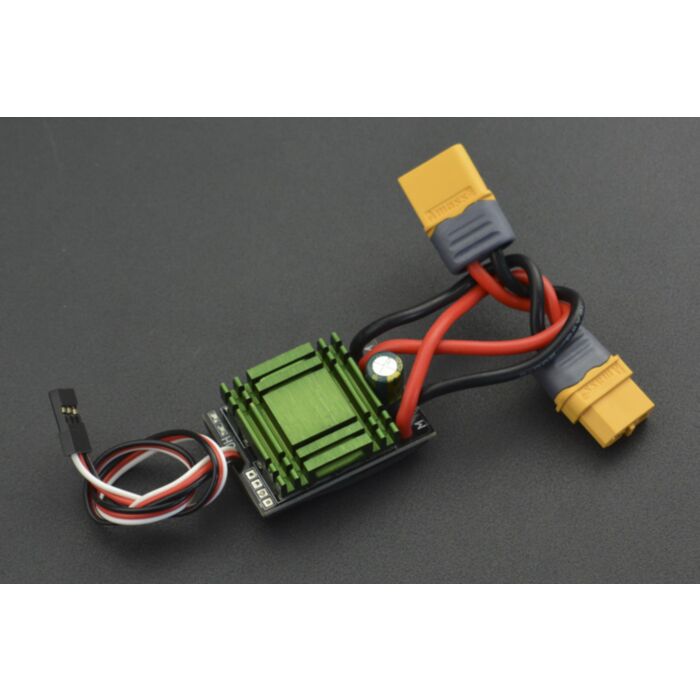

20A Bidirectional Brushed ESC Speed Controller without Brake (XT60 Connector)

SKU: DRI0047 Brand: DFRobot

ESC (Electronic Speed Controller) can be divided into brushed ESC and brushless ESC according to the different motor types. It is widely used in the RC remote control...

$27.20 AUD, inc GST

$24.73 AUD, exc GST

Available with a lead time
Expect dispatch between Jan 23 and Jan 27

Quantity Discounts:

10-25 $23.98 (exc GST)
25+ $23.49 (exc GST)

ESC (Electronic Speed Controller) can be divided into brushed ESC and brushless ESC according to the different motor types. It is widely used in the RC remote control system and we can use signal to control the speed. This is a 20A bidirectional brushed ESC without Brake. It can support up to 20A continuous current and 320A instantaneous current. It is controlled by PPM signal and can drive the forward and reverse rotation of the motor. Support RC remote controller of commonly used brands on the market.

NOTE:

Please carefully read the product specifications before using the equipment, do not overpressure or overload.
Signal Status: After the ESC is energized, the indicator light flashes once again. After the remote controller back to middle position, the indicator light flashes once again. After the signal is lost, the indicator light flashes rapidly.
How to calibrate?

Plug the ESC signal cable into the corresponding channel of the receiver, turn on the power of the remote controller, push the joystick of the corresponding channel to the maximum position, then, turn on the power of ESC, the indicator light will be blinking, after a few seconds, the indicator light will flash twice, then turn the joystick to the middle position, the indicator light flashes three times again, success!

Specifications

Type: bidirectional brushed ESC
Continuous current: 20A
Voltage range: 4.8V-8.4V (lithium battery 2S)
Peak current: 320A forward, 320A backward
Output line: power line and motor line 16AWG-100mm
Control signal type: PPM
Power Connector: XT60 banana plug
Motor Connector: 4mm banana plug
Motor: Brushed motor (260/370/380/540)
Dimensions: L42mm, W28mm, H15mm (including heat sink)
Weight: 30g

Contains

20A Bidirectional Brushed ESC Speed Controller without Brake(XT60 Connector) x1
