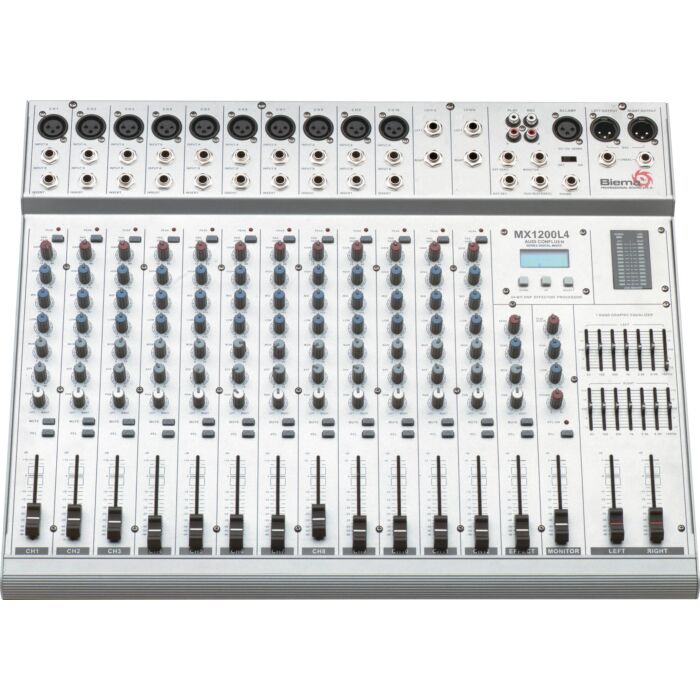

14 Channel Professional Mixing Desk

SKU: AA2654

Retired Product

Search for an alternative

This product has been retired. It is no longer available, but this page has been kept for reference.

A professional mixer engineered for studio or live performance. It is compact, stylish and designed for ease of use. The uncluttered control layout enables hassle free adjustment in live or studio mixing environments. Utilising the latest in surface mount technology and ultra-low noise circuitry, a high level of performance is achieved.

Channels 1 to 10 are identical and feature:
- balanced XLR, unbalanced 6.35mm and an insert input for external effects
- 20db input pad
- separate high, mid, low frequency controls
- monitor mix level
- gain, effects level and left/right pan
- mute and pre-fade listen (PFL) switches
- peak output LED.

Two stereo 6.35mm inputs form channels 11, 12, 13 and 14. The mixer also features a 24 bit digital effects unit with 20 DSP effects including hall, room, delay, echo and reverb/delay. These can be applied to the master output, or an external processor may be used via the effects send and return 6.35mm jacks. A separate monitor output fader and 6.35mm output is provided for use with a mixing room monitor amp and speakers. Headphone volume control with 6.35mm socket is also included. RCA connectors are provided for master record and playback via PC/cassette deck, and a 6.35mm socket is provided for line input eg CD player for BGM. Master outputs, with volume controls, are via balanced XLR or unbalanced 6.35mm jack. Includes 7 band EQ for both channels.

Features

All audio inputs & outputs top mounted for easy access
XLR balanced & 6.35mm unbalanced inputs & outputs
Ultra low noise amplifiers & sealed slider controls
Extremely high headroom on all inputs
Gain, monitor, effect, pan, high, mid & low levels controls plus PFL, mute and 20dB pad on all channels
LED VU output level meter
XLR socket for lamp
Internal 24-bit effects unit with 20 effects
External effects send & return
Selectable phantom power
Separate main mix, monitor and headphone controls
7 band graphic EQ on Master output.

Specifications

Mic inputs: 10 x XLR balanced
Stereo inputs: 4 x 6.35mm jacks
Total THD: 0.01%
Gain bandwidth: 80kHz
Gain control range: -5dB to +60dB
Max input: +22dB
Channel fader range: -85dB to +10dB
Monitor send range: -85dB to 0dB
Effect send range: -85dB to 0dB
Hi shelving: 12kHz, ±15dB, Q fixed 2 Oct
Mid shelving: 350Hz-8kHz, ±15dB, Q fixed 1 Oct
Low shelving: 120Hz, ±15dB, Q fixed 2 Oct
Ch insert max in/Out: +22dBμ
Ch to ch cross talk: ≤-95dB (1kHz)
LINE input max input: +22dBμ
PLAY input max input: +10dBμ
LINE input gain range: -85dB to 0dB
Effect
Effect send/return: +10dBμ max
Tone: ±12dB, 8kHz
Send & return gain: -85dB to 0dB
Monitor Output
Max output: +22dBμ
Hi shelving: ±15dB, 8kHz
Low shelving: ±15dB, 120Hz
Mixer Output
Max output: +22dBμ balanced XLR & unbalanced 6.35mm
7 band stereo EQ: 2.5 multiple freq, Q fixed at 10 Oct. ±12dB
Signal to noise ratio: 90dB
THD: 0.01%, 1kHz
Freq response: 10Hz to 120kHz, ±3dB
Power: 240V AC
Dimensions (mm): 90H x 510L x 405D
Weight: 7.5kg

Downloads

Instructions
