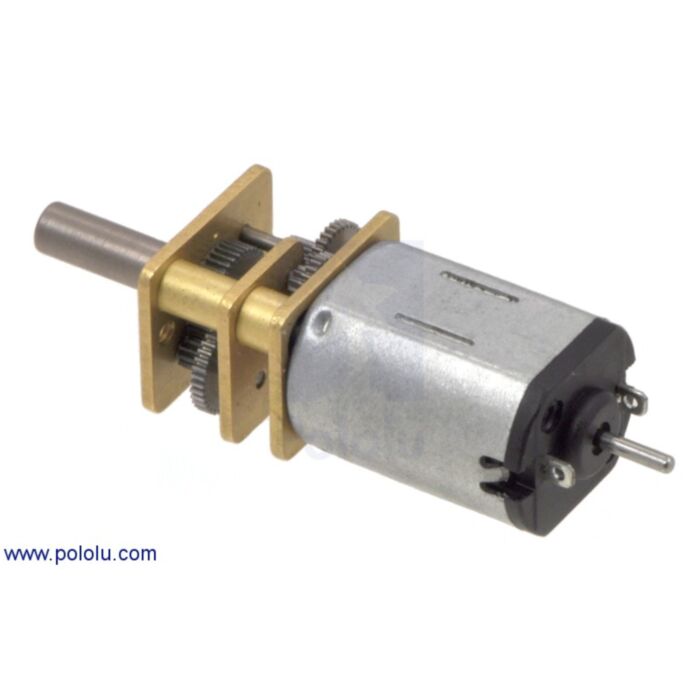

10:1 Micro Metal Gearmotor HP with Extended Motor Shaft

These tiny brushed DC gearmotors are available in a wide range of gear ratios—from 5:1 up to 1000:1—and with five different motors: high-power 6 V and 12 V motors with long-life carbon brushes (HPCB), and high-power (HP), medium power (MP), and low power (LP) 6 V motors with shorter-life precious metal brushes. The 6 V and 12 V HPCB motors offer the same performance at their respective nominal voltages, just with the 12 V motor drawing half the current of the 6 V motor. The 6 V HPCB and 6 V HP motors are identical except for their brushes, which only affect the lifetime of the motor.

The HPCB versions (shown on the left in the picture below) can be differentiated from versions with precious metal brushes (shown on the right) by their copper-colored terminals. Note that the HPCB terminals are 0.5 mm wider than those on the other micro metal gearmotor versions (2 mm vs. 1.5 mm), and they are about 1 mm closer together (6 mm vs. 7 mm).

Versions of these gearmotors are also available with an additional 1 mm-diameter output shaft that protrudes from the rear of the motor. This 4.5 mm-long rear shaft rotates at the same speed as the input to the gearbox and offers a way to add an encoder, such as Pololu's encoders for micro metal gearmotors (see the picture on the right), to provide motor speed or position feedback.

With the exception of the 1000:1 gear ratio versions, all of the micro metal gearmotors have the same physical dimensions, so one version can be easily swapped for another if your design requirements change.

Please see the micro metal gearmotor datasheet (5MB pdf) for more information, including detailed performance graphs for each micro metal gearmotor version. You can also use Pololu's dynamically sortable micro metal gearmotor comparison table to search for the gearmotor that offers the best combination of speed, torque, and current draw for your particular application. A more basic comparison table is available below.

Rated Voltage	Motor Type	Stall Current	No-Load Current	No-Load Speed (RPM)	Extrapolated Stall Torque		Max Power (W)	Single-Shaft (Gearbox Only)	Dual-Shaft (Gearbox & Motor)
					(kg · cm)	(oz · in)
12 V	high-power, carbon brushes (HPCB)	0.75 A	100 mA	6800	0.09	1.3	–	5:1 HPCB 12V	5:1 HPCB 12V dual-shaft
			80 mA	3400	0.17	2.4	1.5	10:1 HPCB 12V	10:1 HPCB 12V dual-shaft
				2200	0.25	3.5	1.4	15:1 HPCB 12V	15:1 HPCB 12V dual-shaft
				1100	0.39	5.4	1.1	30:1 HPCB 12V	30:1 HPCB 12V dual-shaft
				650	0.67	9.3	1.1	50:1 HPCB 12V	50:1 HPCB 12V dual-shaft
				450	1.0	14	1.1	75:1 HPCB 12V	75:1 HPCB 12V dual-shaft
				330	1.3	18	1.1	100:1 HPCB 12V	100:1 HPCB 12V dual-shaft
				220	1.8	25	1.0	150:1 HPCB 12V	150:1 HPCB 12V dual-shaft
				160	2.5	35	1.0	210:1 HPCB 12V	210:1 HPCB 12V dual-shaft
				130	3.0	42	1.1	250:1 HPCB 12V	250:1 HPCB 12V dual-shaft
				110	3.3	46	1.0	298:1 HPCB 12V	298:1 HPCB 12V dual-shaft
				85	5.0	69	1.1	380:1 HPCB 12V	380:1 HPCB 12V dual-shaft
				35	10	140	–	1000:1 HPCB 12V	1000:1 HPCB 12V dual-shaft
6 V	high-power, carbon brushes (HPCB)	1.5 A	170 mA	6500	0.09	1.3	–	5:1 HPCB 6V	5:1 HPCB 6V dual-shaft
			150 mA	3300	0.17	2.4	1.3	10:1 HPCB 6V	10:1 HPCB 6V dual-shaft
				2100	0.25	3.5	1.3	15:1 HPCB 6V	15:1 HPCB 6V dual-shaft
				1100	0.45	6.2	1.2	30:1 HPCB 6V	30:1 HPCB 6V dual-shaft
				650	0.74	10	1.2	50:1 HPCB 6V	50:1 HPCB 6V dual-shaft
				430	1.1	15	1.3	75:1 HPCB 6V	75:1 HPCB 6V dual-shaft
				330	1.6	22	1.3	100:1 HPCB 6V	100:1 HPCB 6V dual-shaft
				220	2.0	28	1.1	150:1 HPCB 6V	150:1 HPCB 6V dual-shaft
				160	2.8	39	1.1	210:1 HPCB 6V	210:1 HPCB 6V dual-shaft
				130	3.2	44	1.1	250:1 HPCB 6V	250:1 HPCB 6V dual-shaft
				110	3.4	47	1.0	298:1 HPCB 6V	298:1 HPCB 6V dual-shaft
				85	5.0	69	1.1	380:1 HPCB 6V	380:1 HPCB 6V dual-shaft
				33	11	150	–	1000:1 HPCB 6V	1000:1 HPCB 6V dual-shaft
6 V	high-power (HP)	1.6 A	120 mA	6100	0.11	1.5	–	5:1 HP 6V	5:1 HP 6V dual-shaft
			100 mA	3100	0.22	3.0	1.6	10:1 HP 6V	10:1 HP 6V dual-shaft
				2000	0.30	4.2	1.5	15:1 HP 6V	15:1 HP 6V dual-shaft
				1000	0.57	7.9	1.5	30:1 HP 6V	30:1 HP 6V dual-shaft
				590	0.86	12	1.3	50:1 HP 6V	50:1 HP 6V dual-shaft
				410	1.3	18	1.4	75:1 HP 6V	75:1 HP 6V dual-shaft
				310	1.7	24	1.3	100:1 HP 6V	100:1 HP 6V dual-shaft
				210	2.4	33	1.2	150:1 HP 6V	150:1 HP 6V dual-shaft
				150	3.0	42	1.1	210:1 HP 6V	210:1 HP 6V dual-shaft
				120	3.4	47	1.1	250:1 HP 6V	250:1 HP 6V dual-shaft
				100	4.0	56	1.1	298:1 HP 6V	298:1 HP 6V dual-shaft
				84	5.5	76	1.1	380:1 HP 6V	380:1 HP 6V dual-shaft
				31	12	170	–	1000:1 HP 6V	1000:1 HP 6V dual-shaft
6 V	medium-power (MP)	0.67 A	80 mA	4400	0.06	0.8	–	5:1 MP 6V	5:1 MP 6V dual-shaft
			70 mA	2200	0.11	1.5	–	10:1 MP 6V	10:1 MP 6V dual-shaft
				1400	0.20	2.8	0.70	15:1 MP 6V	15:1 MP 6V dual-shaft
				720	0.33	4.6	0.57	30:1 MP 6V	30:1 MP 6V dual-shaft
				420	0.54	7.5	0.55	50:1 MP 6V	50:1 MP 6V dual-shaft
				290	0.78	11	0.54	75:1 MP 6V	75:1 MP 6V dual-shaft
				220	0.94	13	0.50	100:1 MP 6V	100:1 MP 6V dual-shaft
				150	1.3	18	0.48	150:1 MP 6V	150:1 MP 6V dual-shaft
				100	1.7	24	0.46	210:1 MP 6V	210:1 MP 6V dual-shaft
				88	2.2	31	0.48	250:1 MP 6V	250:1 MP 6V dual-shaft
				73	2.4	33	0.44	298:1 MP 6V	298:1 MP 6V dual-shaft
				57	3.6	50	0.53	380:1 MP 6V	380:1 MP 6V dual-shaft
				22	6.7	93	–	1000:1 MP 6V	1000:1 MP 6V dual-shaft
6 V	low-power (LP)	0.36 A	50 mA	2500	0.05	0.7	–	5:1 LP 6V	5:1 LP 6V dual-shaft
			40 mA	1300	0.10	1.4	–	10:1 LP 6V	10:1 LP 6V dual-shaft
				860	0.17	2.4	0.37	15:1 LP 6V	15:1 LP 6V dual-shaft
				450	0.29	4.0	0.31	30:1 LP 6V	30:1 LP 6V dual-shaft
				270	0.44	6.1	0.29	50:1 LP 6V	50:1 LP 6V dual-shaft
				180	0.64	8.9	0.29	75:1 LP 6V	75:1 LP 6V dual-shaft
				130	0.74	10	0.25	100:1 LP 6V	100:1 LP 6V dual-shaft
				90	1.1	15	0.25	150:1 LP 6V	150:1 LP 6V dual-shaft
				65	1.6	22	0.25	210:1 LP 6V	210:1 LP 6V dual-shaft
				54	1.7	24	0.23	250:1 LP 6V	250:1 LP 6V dual-shaft
				45	2.0	28	0.22	298:1 LP 6V	298:1 LP 6V dual-shaft
				36	2.9	40	0.27	380:1 LP 6V	380:1 LP 6V dual-shaft
				13	5.5	76	–	1000:1 LP 6V	1000:1 LP 6V dual-shaft

Note: Stalling or overloading gearmotors can greatly decrease their lifetimes and even result in immediate damage. The recommended upper limit for instantaneous torque is 2.5 kg-cm (35 oz-in) for the 380:1 and 1000:1 gearboxes, and 2 kg-cm (25 oz-in) for all the other gear ratios; Pololu strongly advise keeping applied loads well under this limit. Stalls can also result in rapid (potentially on the order of seconds) thermal damage to the motor windings and brushes, especially for the versions that use high-power (HP and HPCB) motors; a general recommendation for brushed DC motor operation is 25% or less of the stall current.

In general, these kinds of motors can run at voltages above and below their nominal voltages; lower voltages might not be practical, and higher voltages could start negatively affecting the life of the motor.

Details for item #2211

Exact gear ratio: 35×3713×10≈9.96:135×3713×10˜9.96:1$\frac{35\times 37}{13\times 10}˜9.96:1$

This gearmotor is a miniature high-power, 6 V brushed DC motor with a 9.96:1 metal gearbox. It has a cross section of 10 × 12 mm, and the D-shaped gearbox output shaft is 9 mm long and 3 mm in diameter. This version also has a 4.5 × 1 mm extended motor shaft.

Key specifications:

Gearmotor Dimensions

In terms of size, these gearmotors are very similar to Sanyo’s popular 12 mm NA4S DC gearmotors, and gearmotors with this form factor are occasionally referred to as N20 motors. The versions with carbon brushes (HPCB) have slightly different terminal and end-cap dimensions than the versions with precious metal brushes, but all of the other dimensions are identical.

Dimensions of versions with carbon brushes (HPCB)

Dimensions of the Pololu micro metal gearmotors with carbon brushes (HPCB). Units are mm over [inches].

Dimensions of versions with precious metal brushes (LP, MP, and HP)

Dimensions of the Pololu micro metal gearmotors with precious metal brushes: low-power (LP), medium-power (MP), and high-power (HP). Units are mm over [inches].

These diagrams are also available as a downloadable PDF (262k pdf).
