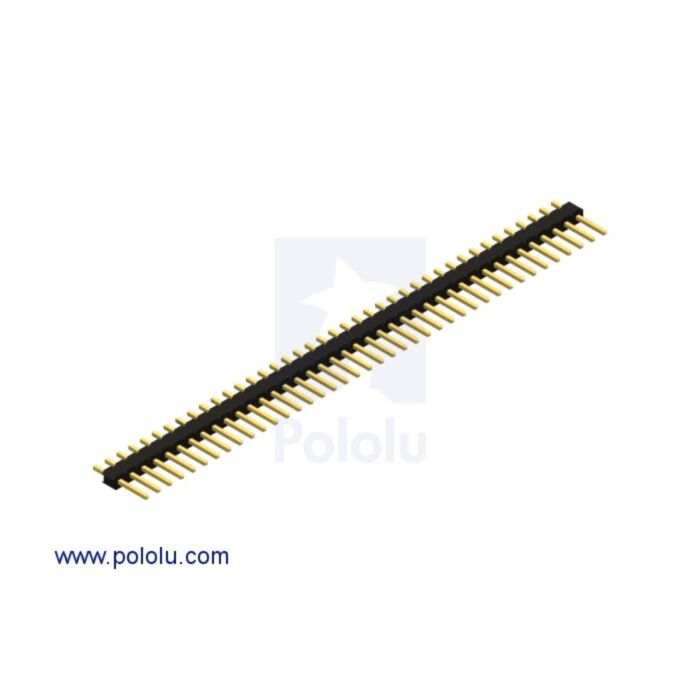

0.100" (2.54 mm) Breakaway Male Header: 1x40-Pin, Straight

SKU: POLOLU-965 Brand: Pololu

Retired Product

Replaced by: CE07828

This product has been replaced by: CE07828
This product is no longer available. This page is only for reference.

These 0.1"/2.54mm-pitch header strips are commonly used as low-cost connectors. The standard spacing allows use with solderless breadboards, perforated prototyping PCBs, female headers, and Pololu's premium and pre-crimped jumper wires. The single-row header strips can easily be snapped into smaller strips to fit your application. The double- and triple-row strips can also be broken into smaller strips, but it takes a little more effort, and it is sometimes easier to use wire/diagonal cutters.

Pololu carry the following 0.1"-pitch breakaway male headers:

1×40-Pin, Straight.

1×40-pin, straight, available in five colors:
- Black
- Red
- Yellow
- Blue
- White

1×40-pin, straight, double-sided (Both sides of the strip are long, allowing for unique connections that cannot be made with standard male header strips. For example, this header can be used as a female-to-male adapter, and both sides are compatible with wire wrap.)

2×40-pin, straight

1×40-pin, right angle

2×40-pin, right angle

3×40-pin, right angle

People often buy this product together with:

0.100" (2.54 mm) Breakaway Male Header: 1×40-Pin, Right Angle

0.1" (2.54mm) Crimp Connector Housing: 1x1-Pin 25-Pack

0.1" (2.54mm) Crimp Connector Housing: 1x2-Pin 25-Pack

Dimensions

Pins:	1 × 40
Spacing:	0.100 in

General specifications

Gender:	male
Pin type:	straight
Current rating:	3 A
Color:	black
Material:	PBT UL94V-0 plastic base, brass pins with gold-flash

This product is listed in:
