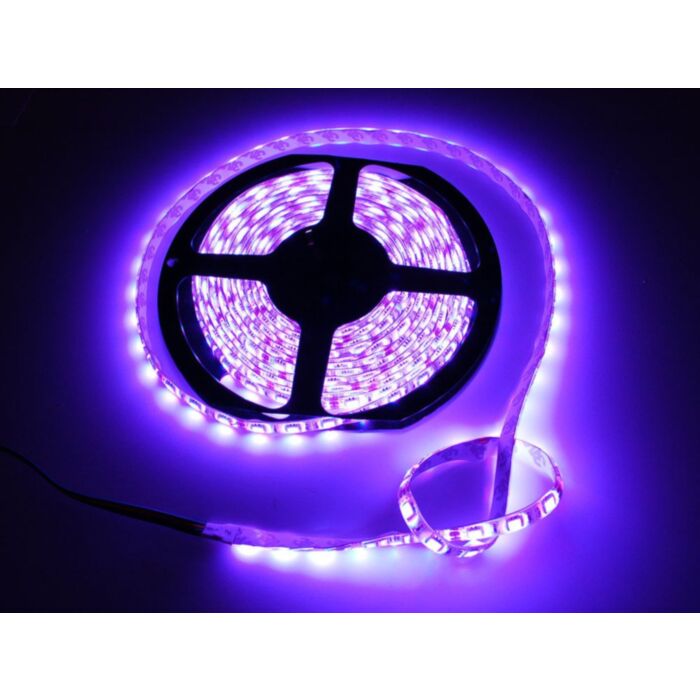

RGB LED Weatherproof flexi-strip 60 LED/m

SKU: ADA346 Brand: Adafruit

Retired Product

Search for an alternative

This product has been retired. It is no longer available, but this page has been kept for reference.

These LED strips are fun and glowy. There are 60 RGB LEDs per meter - twice as many as Adafruit's other strip, and you can control the entire strip at once with any microcontroller and three transistors. The way they are wired, you will need a 9-12VDC power supply and then ground the R/G/B pins to turn on the three colors. Use any NPN or N-channel MOSFET (although the big powerful kind is good for a large strip) and PWM the inputs for color-mixing.

Adafruit splurged and got the weatherproof kind with white background color. There's a 3M adhesive strip on the back which should stick to most smooth surfaces. Great for decorating your bike or art project, costuming or funky fashion.

For powering, a good 12V supply is key. The one We carry will do well for fixed installations. For portable use, we suggest a 8xAA battery holder

Please Note: these strips are weatherproof so they'll be more rugged than uncoated strips, but they not designed for long term submersion in water, especially chlorinated water, or exposed to UV (eg sunlight) for extended periods of time. They are for indoor use or light outdoor use without direct sun/water. That means you cannot put them into a pool, lake, aquarium, etc. The silk-screening and LED brightness of the strips may vary slightly from reel to reel. Once the adhesive backing has been removed, the strips are not returnable!

You can cut this stuff pretty easily with wire cutters, there are cut-lines every 5cm (3 LEDs each), and trim off the weatherproof cover with a hobby knife. Solder to the 0.1" copper pads and you're good to go. The 60-LED strips use twice as much power and look twice as good!

They come in 5 meter reels, and are sold by the meter! If you buy 5m at a time, you'll get full reels. If you buy less than 5m, you'll get a single strip, but it will be a cut piece from a reel which may or may not have a connector on it. If the piece comes from the end of the reel, the connector may be on the output end of the strip!

Adafruit have a full tutorial with details, diagrams, schematics and code for using your RGB LED strip, please check it out!

Technical Details

10.5mm (0.41") wide, 3mm (0.12") thick, 50mm (2") long per segment
Clear weatherproof molded
3M adhesive strip on back
Maximum 12V @ 60mA draw per strip segment
Max 1.2 Amps per meter (all LEDs lit full brightness)
3 common-anode RGB LEDs per segment, 20 segments per meter
LED wavelengths: 630nm/530nm/475nm
No microcontroller or chip controller ('analog' only!)
