Wireless Charging Module 12V/3A

SKU: FIT0703 Brand: DFRobot

This wireless charging module, composed of transmitting and receiving ends, can transfer energy through medias such as air, paper, or plastic. Based on “magnetic-coupled...

$49.70 AUD, inc GST

$45.18 AUD, exc GST

Quantity Discounts:

10-25 $43.83 (exc GST)
25+ $42.93 (exc GST)

Out of Stock

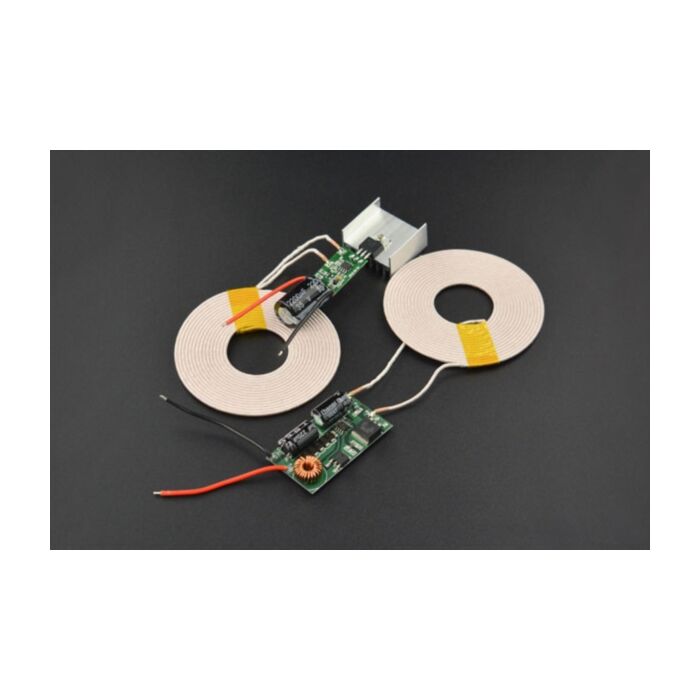

This wireless charging module, composed of transmitting and receiving ends, can transfer energy through medias such as air, paper, or plastic. Based on “magnetic-coupled resonance”technology and high-current wireless supply chip, it can achieve the energy transfer with minimal consumption.

The module can realize long-distance energy transmission of 152mm with a maximum output of 12V/3A and up to 95% efficiency. It can provide very stable performance even under long working hours. Due to the non-contact charging design, the module can be completely sealed for being waterproof and dustproof, thus extending its service life and making it more convenient to use.

The module can be used in mobile electronic products such as phones, game console, digital cameras, and shavers, or even to replace the existing charging mode of intelligent vehicles and UAVs to achieve wireless charging.

Note:

Do not inversely connect the input power supply of the transmitting end.
Do not short-circuit the output load-line of the receiving end.
Do not place any large metal objects near the coil.

Specification

Magnetic-Coupled Resonance Technology
Transmitting Voltage: 24V
Output Power: 36W
Output Voltage & Current: 12V, 3A
Coil Size: outer diameter 82mm; inner diameter 30mm
Transmitting Module Size: 17mm*30mm (Smaller PCB with larger capacitor and aluminium heatsink)
Receiving Module Size: 30mm*54mm (Larger PCB with large inductor/core)

Shipping List

Wireless Charging Module 12V/3A x1
