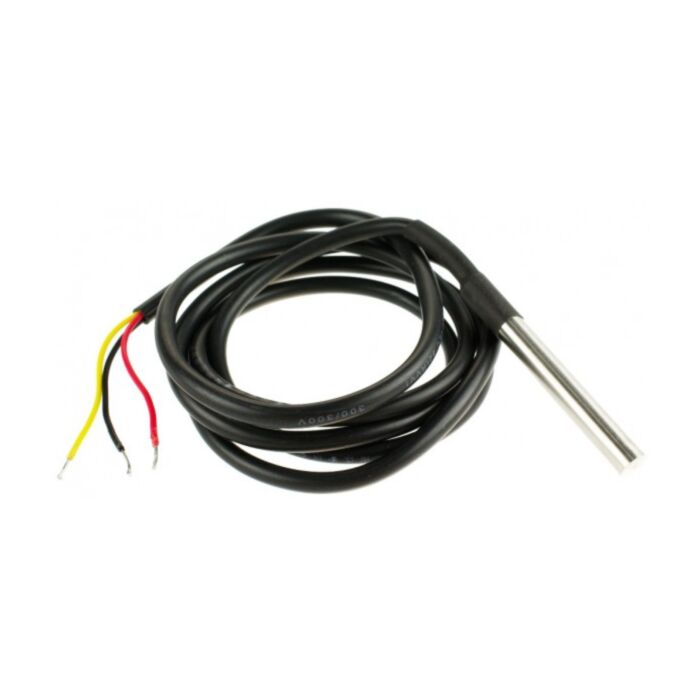

Take temperature readings from a distance, or underwater, using this Waterproof DS18B20 Digital Temperature Sensor. It's got a 90cm (0.9m) cable with a stainless steel, PVC coated probe at the end. You'll be able to use it with any 3V-5V system, and take temperature readings with an accuracy of 9-12 Bits (configurable in code). The best part is that it's digital, meaning you won't suffer any signal degradation over the longer distance.
- Waterproof - Take the temperatures of liquids/moist environments with the stainless steel probe. It's shrouded in PVC plastic too, meaning it will hold it's own in temperatures up to 100 degrees Celsius.
- Temperature - Usable from -55 degrees Celsius to 125 degrees Celsius. Accuracy of ~0.5 degrees.
- Digital - The digital interface used to relay the readings guarantees minimal signal degradation over the longer distances (~90cm for this standard cable)
- 1-wire interface - You can have multiple DS18B20s connected to the same central micro-controller pin as each device has a unique identifier hard-coded in.
- Long range - 1.5 meters of cable by default, but you can make it longer if needed!
- Maker friendly - The DS18B20 chip is able to be powered with 3v - 5.5v which is perfect for maker platforms (Arduino, Raspberry Pi, etc)
This sensor is simple, you've got 3 wires (Power, Ground and Data). You simply need to connect the data pin to an input pin on your micro-controller (Arduino, etc) and the power and ground to power and ground!
You'll also need to connect a resistor between power and signal wires, as shown in the circuit diagram on the Sensor's wiki page.
You can simply use the One-wire library for any Arduino projects (See the examples below for more in-depth information). We've even made our own tutorial on using this sensor with a Raspberry Pi! As always, we're full time maker's with experience using this gear and we're here to help. Make a post in our forum to get more information on anything maker related.
- Compatible with 3.0V to 5.5V systems (Arduino, Raspberry Pi, micro:bit, etc)
- Within 0.5 degrees Celsius accuracy
- Recommended usable temperature range: -55 to 125 degrees Celsius
- Select-able 9-12 bit resolution (Factory Default at 12-bit)
- 1 Wire Interface
- Unique 64 bit ID for each sensor
- Query time is less than 750ms
- Stainless steel tube 6mm diameter by 35mm long
- Cable diameter: 4mm
- Cable Length: 90cm
