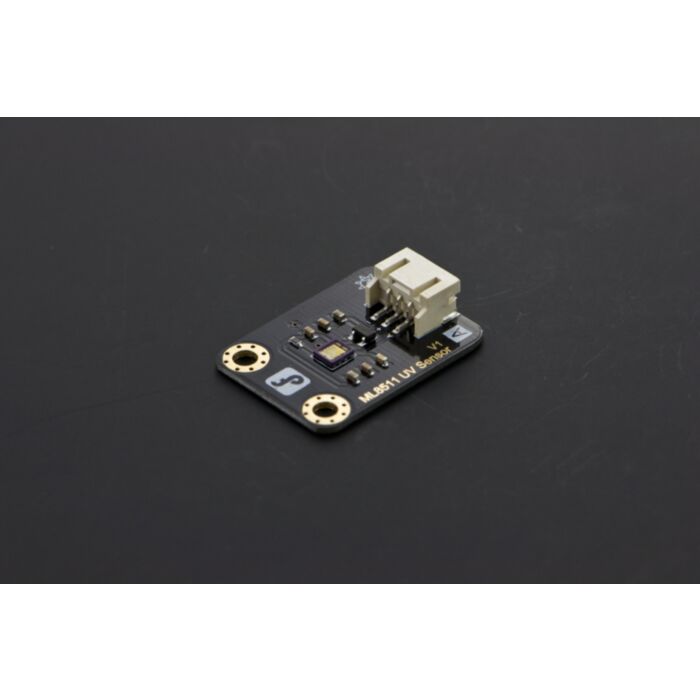

UV Sensor v1.0 - ML8511

SKU: SEN0175

$21.07 AUD, inc GST
$19.15 AUD, exc GST

More Views

UV Sensor v1.0 - ML8511
21.07 AUD

SKU: SEN0175

$21.07 AUD, inc GST
$19.15 AUD, exc GST
In stock, with a short lead time. 101 units dispatch in 3 to 5 days (in addition to the shipping method you choose). Our timing and stock is accurate. Delivery to you by Wed, 25th of Oct with Express Post within Australia.

Introduction

The ML8511 is a UV sensor, which is suitable for acquiring UV intensity indoors or outdoors. iT is equipped with an internal amplifier, which converts photo-current to voltage depending on the UV intensity. This unique feature offers an easy interface to external circuits such as ADC. In the power down mode, typical standby current is 0.1A, thus enabling a longer battery life.

This sensor detects 280-390nm light most effectively. This is categorized as part of the UVB (burning rays) spectrum and most of the UVA (tanning rays) spectrum. It outputs a analog voltage that is linearly related to the measured UV intensity (mW/cm2). If your microcontroller can do an analog to voltage conversion then you can detect the level of UV.

FEATURES

  • Photodiode sensitive to UV-A and UV-B
  • Embedded operational amplifier
  • Analog voltage output
  • Low supply current (300A typ.) and low standby current (0.1A typ.)
  • Small and thin surface mount package (4.0mm x 3.7mm x 0.73mm, 12-pin ceramic QFN)

APPLICATIONS

  • Smart phone
  • Watch
  • Weather station
  • Bicycle navigation
  • Accessary
  • Gaming

Specification

  • Supply Voltage: DC 5V
  • Operating Temperature: -20~70°C
  • Sensitivity Region:UV-A and UV-B
  • Sensitivity Wave Length:280-390nm
  • Module Size: 30 x 22mm
  • UV Sensor v1.0-ML8511 x1
Documentation and Resources:
  • Handheld UV Meter
  • UV is important to reptiles (and people) in processing vitamin D3 which is needed to absorb calcium. Without it reptiles often suffer from Metabolic Bone Disease (MBD) which leads to weak bones and can be fatal. Thankfully, pet shops have the answer, UV producing globes which can stave off the dreaded MBD. These are in the form of T8 florescent tubes or compact florescent globes and go for $50+ each. And, yeah, they need to be re...
