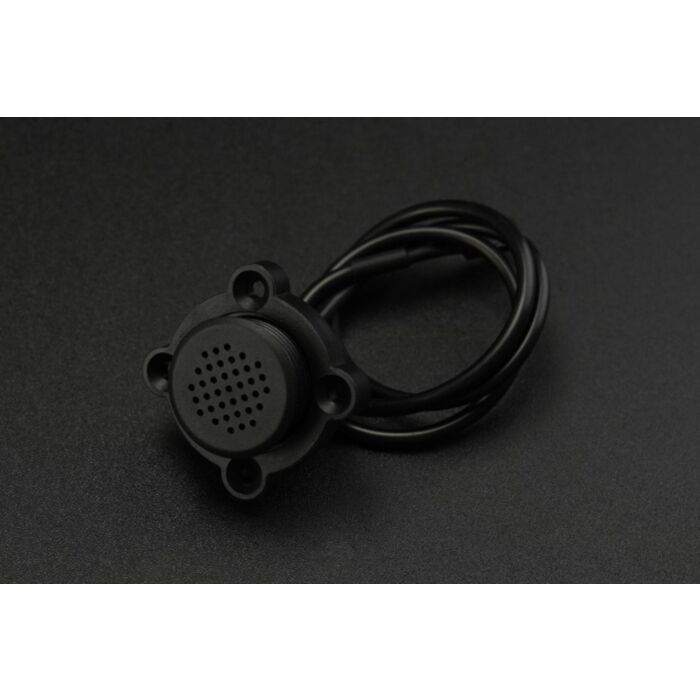

Threshold Carbon Monoxide Detection Sensor (0-1000ppm)

SKU: SEN0596 Brand: DFRobot

Arduino carbon monoxide CO gas sensor can monitor the environment. Perfect for safety, occupational health, and research and development Indoor Air...

$37.95 AUD, inc GST

$34.50 AUD, exc GST

Available with a lead time
Expect dispatch between Jul 23 and Jul 26

Quantity Discounts:

10-25 $33.46 (exc GST)
25+ $32.77 (exc GST)

This carbon monoxide gas sensor differs from most gas sensors on the market as it does not provide specific gas concentration data.Instead, it detects whether the surrounding environment exceeds or falls below a fixed threshold.It operates on a wide voltage range of 5-24V, with high and low-level outputs.

The sensor is equipped with an indicator light for easy observation of its status, making it user-friendly.When the sensor detects a gas concentration above the threshold, it outputs a high-level signal and the indicator light illuminates.Conversely, when the concentration falls below the threshold, it outputs a low-level signal and the indicator light turns off.

Carbon Monoxide Detection Sensor Overview

Note: The threshold of this sensor is factory-fixed and cannot be modified by the user. Custom threshold parameters can be set for bulk orders.

If you need to measure Carbon Monoxide concentration accurately,we recommend the Fermion: MEMS Carbon Monoxide CO Gas Detection Sensor.

Dimension Diagram of Carbon Monoxide Detection Sensor

Connection Port Diagram of Carbon Monoxide Detection Sensor

Features

Threshold-based detection

Wide voltage range, 5-24V

High and low-level outputs

Indicator light for status observation

User-friendly design

Applications

Indoor air quality monitoring

Safety and occupational health

Environmental monitoring

Smart home systems

Research and development

Specification

Power Supply Voltage: 5-24V

High level output range: 5-24V(Output high voltage = supply voltage)

Load Current: <100mA

Static Current: <10mA

Detectable Gas: Carbon Monoxide (CO)

Repeatability: <2% of the output value

Threshold: 20ppm (Factory-fixed threshold, cannot be modified by the user)

Maximum Load: 1000ppm

Response Time: <15s

Zero-Point Output: ±2ppm

Output Mode: High-level and low-level signals

Line sequence: Black line -OUT, Brown line -VCC, Blue line -GND

Pressure Range: 1±0.1 standard atmospheric pressure

Lifespan: 8 years (in air)

Storage Environment: 10°C ~ 30°C

Operating Temperature Range: -10°C ~ 50°C

Operating Humidity Range: 15% ~ 90% RH

Dimensions: L*W*H=30.35*47.4*47.4mm

Cable Length: 50cm

Housing Material: Black PCV0 flame-retardant material

Parts List

Carbon Monoxide Detection Sensor x1
