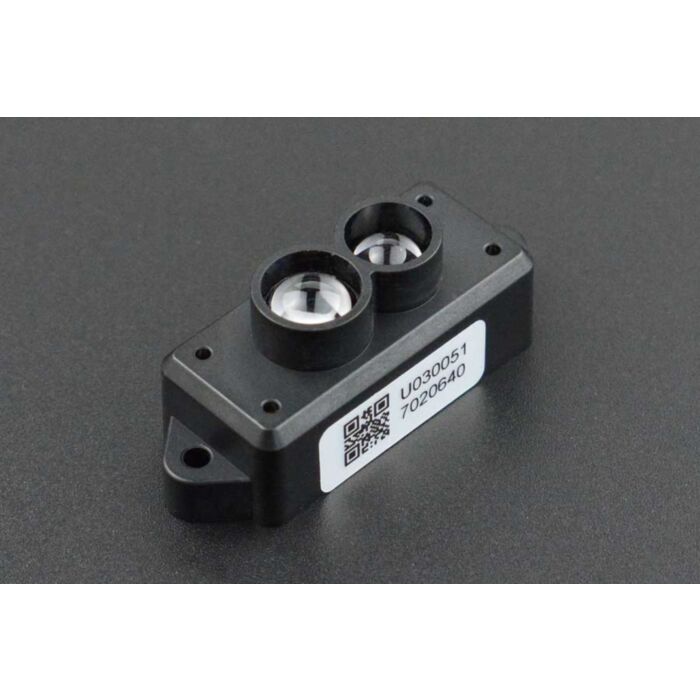

TF Mini LiDAR(ToF) Laser Range Sensor

Rating:
100% of 100
SKU: SEN0259 Brand: DFRobot
The TF Mini LiDAR is an unidirectional laser range finder based upon time-of-flight (ToF) technology. It consists of special optical and electronic devices, which...
$72.70 AUD, inc GST
$66.09 AUD, exc GST

In stock, ships same business day if ordered before 2PM
Delivered by Fri, 18th of Oct

Quantity Discounts:

  • 6-12 $64.11 (exc GST)
  • 12+ $62.78 (exc GST)
- +

1 from local stock, 1 supplier stock; your order will dispatch between Dec 1 to Dec 10. And yes, stock levels and lead times are accurate!

Shipping:

  • $7+ Standard (5+ days*, tracked)
  • $11+ Express (2+ days*, tracked)
  • FREE Pickup (Newcastle only - must order online*)

Shipping costs may increase for heavy products or large orders.

Exact shipping can be calculated on the view cart page.

*Conditions apply, see shipping tab below.

Introduction

The TF Mini LiDAR is an unidirectional laser range finder based upon time-of-flight (ToF) technology. It consists of special optical and electronic devices, which integrates adaptive algorithm for indoor and outdoor application environment. It has tiny body and high performance in distance measurement.

The laser sensor can be used as a distance-measuring tool to detect the distance from it to obstacles. It can also be used as an eye of a robot; it provides distance information for robotic safe avoidance and route selection. It supports for system automation in a variety of machine control scenarios. Because of its small size, light weight and low power consumption, it is also suitable for altitude hold quad-copters and terrain following.


Figure 1: TF Mini Optical Stimulation Light Path


TF Mini's maximum detection distance is 12 meters. TF Mini also supports 100Hz sampling resolution, within 6 meters, its accuracy is within 4cm, 6~12 meters, accuracy within 6 cm. FOV of 2.3 degree. Its anti-interference is strong, and can work in outdoor light; the overall weight is 4.7g.

Measurement range schematic diagram


TF Mini LiDAR adopts UART (TTL) communication interface, can supplied by standard 5V, and its average power consumption is 0.6w. It can be compatible with a variety of Arduino controllers. With the DFRobot Gravity IO Expansion Shield, Arduino can be plugged in directly without additional wiring.

It can be easily integrated into the system when used with the Arduino library developed by DFRobot.

Arduino TF mini Connection Diagram


NOTE:
  • The product may be invalid when probing objects with high reflectivity, such as mirrors and smooth tiles.
  • When there are transparent objects, such as glass and water, between the product and the tested object, it may become invalid.
  • Do not touch the circuit board with your bare hands. If necessary, please wear an electrostatic wristband or antistatic gloves.

  • FEATURES

  • Unidirectional laser range finder
  • Maximum Detection Range: 12m
  • Perform excellent in distance measurement, high precision.
  • Support 100Hz sampling resolution, responsive.
  • Small size and low power consumption.
  • APPLICATIONS

  • Machine control and safety measurement systems
  • Laser range finder robot
  • Altitude hold quad-copters and terrain following
  • Specification

  • Voltage Range: 4.5V-6V
  • Communication Interface: UART (TTL)
  • Working Range: 0.3m-12m (indoor)
  • The Maximum Range of Reflectivity 10%:5m
  • Average Power: 0.6W
  • Acceptance Angle: 2.3°
  • Minimum Resolution: 5mm
  • Refresh Frequency: 100Hz
  • Ranging Accuracy: 1% (<6m), 2% (6 ~ 12m)
  • Ranging Unit: mm
  • Band: 850nm
  • Size: 1.65in x0.59in x0.63in / 42mm x15mm x16mm
  • Operating Temperature: 0°C ~ 60°C
  • Storage Temperature: -20°C~75°C
  • Anti-light Environment: 70Klux
  • Weight: 4.7g
  • Documents

    Product wiki
    More Documents

    Parts List

  • TF Mini LiDAR(12m) x1
  • TF Mini LiDAR(12m) A wire x1
  • TF Mini LiDAR(12m) B wire x1
