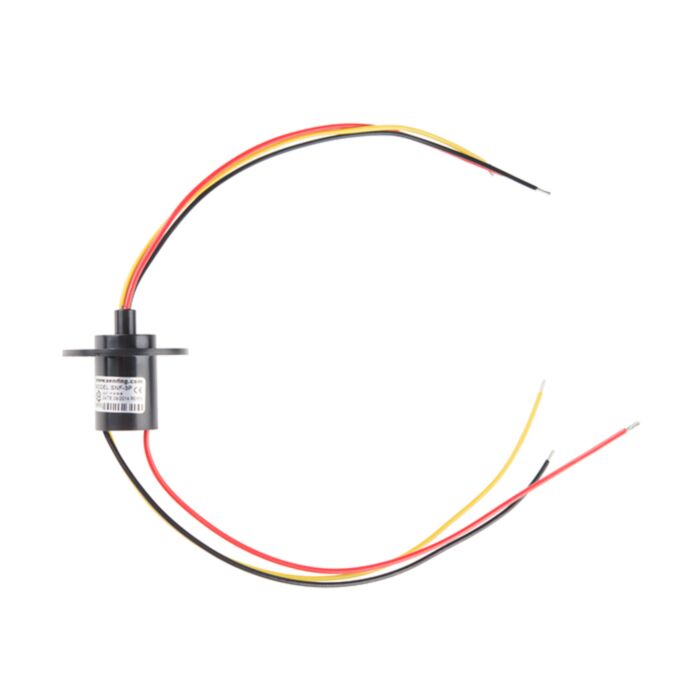

Slip Ring - 3 Wire (10A)

Rating:

87% of 100

SKU: ROB-13063 Brand: Sparkfun

This is a 3 wire slip ring, a remarkably simple electromechanical assembly that allows for electronic signals and power to be passed through its rotating innards. Commonly, you’d find slip rings in wind turbines, radar antennae, or anything else that requires continuous 360° rotation while maintaining an electrical connection. This particular slip ring provides you with a compact body with precious metal alloy fiber brush to silver plated ring contacts inside. We like using these slip rings to specifically transfer power in our spinning projects because regardless of the wires position in its rotation the power remains consistent!

$53.50 AUD, inc GST

$48.64 AUD, exc GST

In stock, ships same business day if ordered before 2PM
Delivered by Mon, 18th of Nov

Quantity Discounts:

6-12 $46.69 (exc GST)
12+ $45.24 (exc GST)

This is a 3 wire slip ring, a remarkably simple electromechanical assembly that allows for electronic signals and power to be passed through its rotating innards. Commonly, you'd find slip rings in wind turbines, radar antennae, or anything else that requires continuous 360° rotation while maintaining an electrical connection. This particular slip ring provides you with a compact body with precious metal alloy fiber brush to silver plated ring contacts inside. Sparkfun like using these slip rings to specifically transfer power in our spinning projects because regardless of the wires position in its rotation the power remains consistent!

Each slip ring is capable of handling a continuous working speed of 250RPM, a current rating of (a whopping) 10A, and an operating voltage of 380VDC/AC. Sparkfun aren't kidding about how compact this little guy is, with only and outer diameter of 22mm for the body an 44mm diameter flange, you should have no issues fitting these into your next project. Additionally, the 250mm stranded wires protruding from each side of the slip ring have a thickness of 16AWG while the whole assembly has a water protection rating of IP51.

Note: Sparkfun have used these Slip Rings at 15A with no issue.

Features

3 wires
Voltage: 380VDC/AC
Current Rating: 10A
Max Current Rating: 25A
Operating Speed: 250RPM
Compatible with data bus protocols
Transfers analog and digital signals
22mm Diameter x 33mm Length w/ 44mm Diameter Flange
