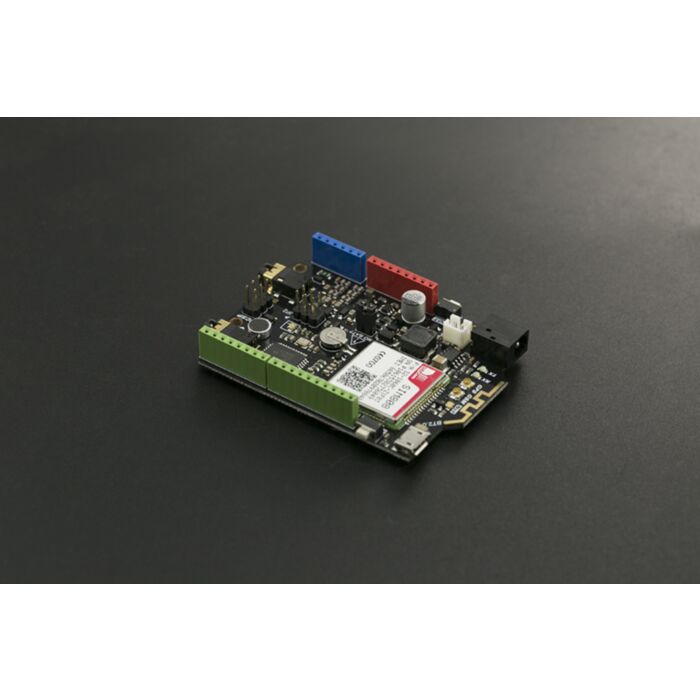

SIM808 with Leonardo Mainboard

SKU: DFR0355 Brand: DFRobot

Retired Product

Replaced by: 3G

This product has been replaced by: 3G
This product is no longer available. This page is only for reference.

Introduction

The SIM808 with Leonardo mainboard is the latest Arduino board developed by DFRobot for multi-purpose applications. The onboard SIM808 module includes an integrated quad-band GSM/GPRS and GPS satellite navigation module, and a 4 layer PCB integrates the microcontroller, microphone, headphone jack and GPRS/GPS, giving this board the tiny footprint of a regular credit card! Meanwhile, the board includes a sleep mode feature for extra-low power consumption. And an on-board 3.7V Lipo battery power supply and battery-charging circuit has been integrated into the board, making it ideal for applications such as real-time car tracking, security patrolling and IoT projects.

Compared with the existing SIM808 modules on the market, this SIM808 uses the latest version with better stability.

APPLICATIONS

GPRS network nodes
Remote communications
Satellite positioning
Real-time car tracking systems
Security
Internet of things (IoT)

Specification

AVR Arduino MCU: ATmega32u4 (Bootloader: Leonardo)
Operating voltage: 5V
Input Voltage: 5V (USB)/7~23V(Vin)/3.5~4.3V (BAT)
Low-power consumption: (100mA@7V-GSM mode)
Digital I/O Pins: 20
PWM Channels: 7
Analog Input Pins: 12
DC Current per I/O Pin: 40 mA
DC Current for 3.3V Pin: 50 mA
Flash Memory: 32 KB (of which 4 KB is used by the bootloader)
SRAM: 2.5 KB
EEPROM: 1 KB
Clock Speed: 16 MHz
Wireless Module: SIM808 GSM/GPRS/GPS module
Quad-band 850/900/1800/1900MHz – 2G GSM network
GPRS multi-slot class 12/10
GPRS mobile station class B
Compliant to GSM phase 2/2+
- Class 4 (2 W @ 850/900MHz)
- Class 1 (1 W @ 1800/1900MHz)
Bluetooth: Compliant with 3.0 + EDR (Not open in this version)
Time-To-First-Fix
- Cold starts: 30s (typ.)
- Hot starts: 1s (typ.)
- Warm starts: 28s (typ.)
Accuracy: Horizontal position 2.5m CEP
Update rate: 5Hz
Control: AT command (GSM07.07, 07.05 and SIMCom enhanced AT commands)
Dimension: 73*54mm / 2.87* inches
Weight: 50g

Documents

Parts List

SIM808 with Leonardo mainboard x1
Built-in Spring GSM Antenna x1
Built-in GPS antenna x1
