Available with a lead time
Expect dispatch between Mar 24 and Mar 26

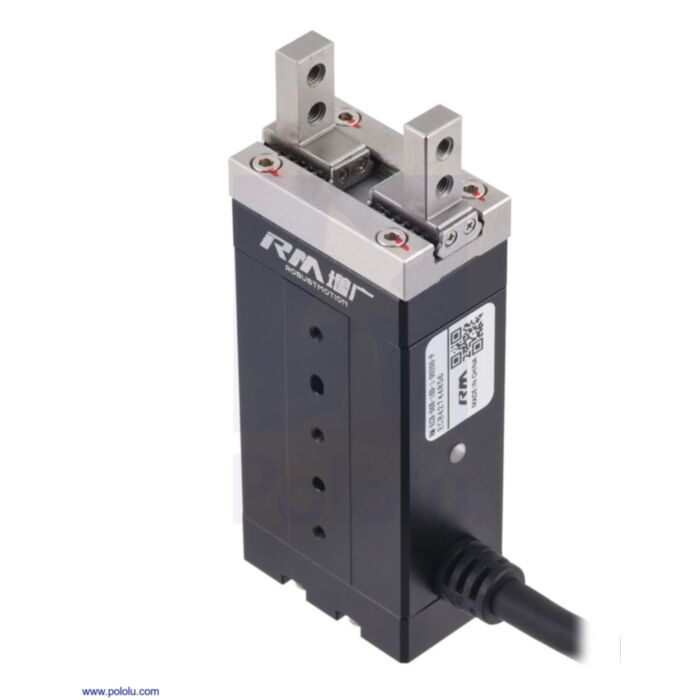

This compact RM-EGB Series gripper from RobustMotion fits small collaborative robots (cobots) such as the Dobot MG400. It operates at 24 VDC, which can be supplied from the MG400, and the simple PNP-type PLC interface can connect directly to the MG400 I/O ports. A simple 3D-printed adapter (139k STEP) can be used to mount the gripper to the MG400 arm.
The gripper operates by sliding a pair of fingers together or apart laterally to grip and release. These fingers, which are designed to serve as mounting points for customized (e.g. 3D-printed) extensions, are able to exert consistent force in both directions, allowing them to grab parts internally (by opening into a gap) or externally (by clamping down) with missed pickup and dropped part detection.
The gripper can cover its full 6 mm stroke length in under 0.1 s, and in addition to the fully open and fully closed extremes, two preset intermediate positions (at 2 mm and 4 mm) are achievable with ±0.02 mm repeatability. The grip strength can be controlled by selecting from four preset force levels up to 60 N. See the RM-EGB user’s manual (2MB pdf) for more information.
Specifications
Connections
|
|
The gripper has a 200 cm (80") cable with ten conductors terminating in a 12-pin, 2mm-pitch A2008H-12P connector. RobustMotion recommends cutting the connector off and using the individual wires. Note: pins 9 and 10 (DSW+/-) are not used on this version of the gripper.
Dimensions
Dimensions
Size: | 23.5 × 38 × 98 mm (0.93" × 1.50" × 3.86") |
---|---|
Weight: | 220 g1 |
General specifications
Interface: | simple PNP |
---|---|
Voltage: | 24 V |
Lead length: | 200 cm |
File downloads
User’s manual for the RobustMotion RM-EGB grippers (2MB pdf)
3D-printable adapter for connecting RobustMotion RM-EGB grippers to the Dobot MG400 robot arm (139k STEP)
This adapter is designed to work with the Dobot MG400 robot arm and the RobustMotion RM-EGB Series Grippers.
3D-printable adapter for connecting RobustMotion RM-EGB grippers to the Dobot MG400 robot arm (200k STL)
This adapter is designed to work with the Dobot MG400 robot arm and the RobustMotion RM-EGB Series Grippers.
3D model of the RobustMotion RM-EGB Series 16D Gripper (2MB STEP)
