Pololu Wheel 90x10mm Pair - Black

Rating:
100% of 100
SKU: POLOLU-1435 Brand: Pololu

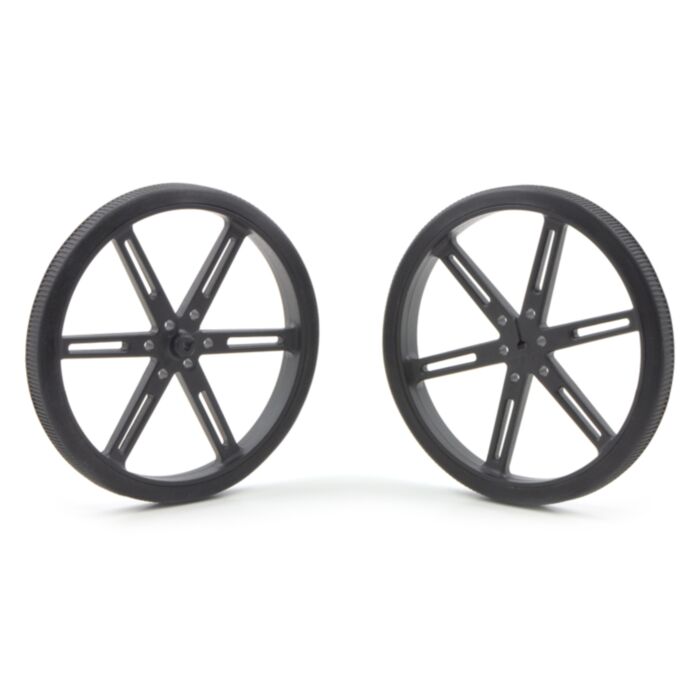

These black plastic wheels press-fit onto the 3mm D shafts on many of Pololu's motors, including Pololu's micro metal gearmotors and Pololu's plastic gearmotors with 3mm D-shafts, to make a nice drive solution for small robots. The wheels have silicone tires and measure 90 mm (3.54″) in diameter. Six additional mounting holes for 4-40 screws make it possible to use the wheel with several of Pololu's universal mounting hubs. The wheels are sold in pairs.
$13.45 AUD, inc GST
$12.23 AUD, exc GST

In stock, ships same business day if ordered before 2PM
Delivered by Thu, 21st of Mar

Quantity Discounts:

  • 10-25 $11.86 (exc GST)
  • 25+ $11.62 (exc GST)
- +

1 from local stock, 1 supplier stock; your order will dispatch between Dec 1 to Dec 10. And yes, stock levels and lead times are accurate!

Favourite product

Shipping:

  • $6+ Standard (5+ days*, tracked)
  • $10+ Express (2+ days*, tracked)
  • FREE Pickup (Newcastle only - must order online*)

Shipping costs may increase for heavy products or large orders.

Exact shipping can be calculated on the view cart page.

*Conditions apply, see shipping tab below.

These wheels are great for robotics, custom RC vehicles, or any other project you need to get rolling. They measure 90 mm (3.54") in diameter and are designed to press-fit securely onto D output shafts with a diameter of 3 mm. They are compatible with many of Pololu's gearmotors, including Pololu's micro metal gearmotors and Pololu's mini plastic gearmotors. Six mounting holes for #4 or M3 screws make it possible to use the wheel with any of Pololu's universal mounting hubs for those screw sizes, enabling these wheels to be used with Pololu's larger metal gearmotors and stepper motors. The slots in the six spokes fit #2 or M2 screws and allow additional accessories to be mounted to the wheel such as decorations or parts of an encoder system. The included silicone tires, which feature horizontal treads for improved traction, are also available separately.

The left picture below shows this wheel mounted to a 37D mm metal gearmotor with a universal mounting hub for 6mm shafts, and the right picture below shows this wheel mounted to a micro metal gearmotor.

Black Pololu Wheel 90×10mm on a Pololu 37D mm Metal Gearmotor.

Black Pololu Wheel 90×10mm on a Pololu Micro Metal Gearmotor.

Details for item #1435

Parts included with Pololu Wheel 90×8mm Pair – Black.

This is the black version of Pololu's 90×10mm wheel pair. These same-sized wheels are also available in red, yellow, blue, or white.

Other wheel options

Pololu have similar wheels available in different sizes and colors:

Alternatives available with variations in these parameter(s):size colorSelect variant…

Black Pololu Wheels with 90, 80, 70, 60, 40, and 32 mm diameters (other colors available).

Pololu Wheels with 90, 80, 70, and 60 mm diameters in three colors: blue, red, and yellow.

People often buy this product together with:

Pololu Universal Aluminum Mounting Hub for 4mm Shaft, #4-40 Holes (2-Pack)Pololu Universal Aluminum Mounting Hub for 4mm Shaft, #4-40 Holes (2-Pack)
Pololu Universal Aluminum Mounting Hub for 6mm Shaft, #4-40 Holes (2-Pack)Pololu Universal Aluminum Mounting Hub for 6mm Shaft, #4-40 Holes (2-Pack)
Pololu Stamped Aluminum L-Bracket Pair for 37D mm Metal GearmotorsPololu Stamped Aluminum L-Bracket Pair for 37D mm Metal Gearmotors

Dimensions

Size: 90 x 10 mm
Weight: 0.8 oz1
Shaft diameter: 3 mm2

General specifications

Color: black

Notes:

1
Per wheel, including tire.
2
D-shaped hole for press fit onto Pololu Micro Metal Gearmotors and Mini Plastic Gearmotors.

File downloads

  • Dimension diagrams for Pololu Wheels (2MB pdf)

    This file contains dimension diagrams for the 32×7mm, 40×7mm, 60×8mm, 70×8mm, 80×10mm, and 90×10mm Pololu Wheels with 3mm D-hubs as well as the 80×10mm Pololu Multi-Hub Wheels.

  • 3D models of Pololu Wheels 90×10mm (4MB zip)

    This file contains 3D models (in the step file format) of the Pololu Wheels 90×10mm.

This product is listed in:

Hardware>Wheels>General
