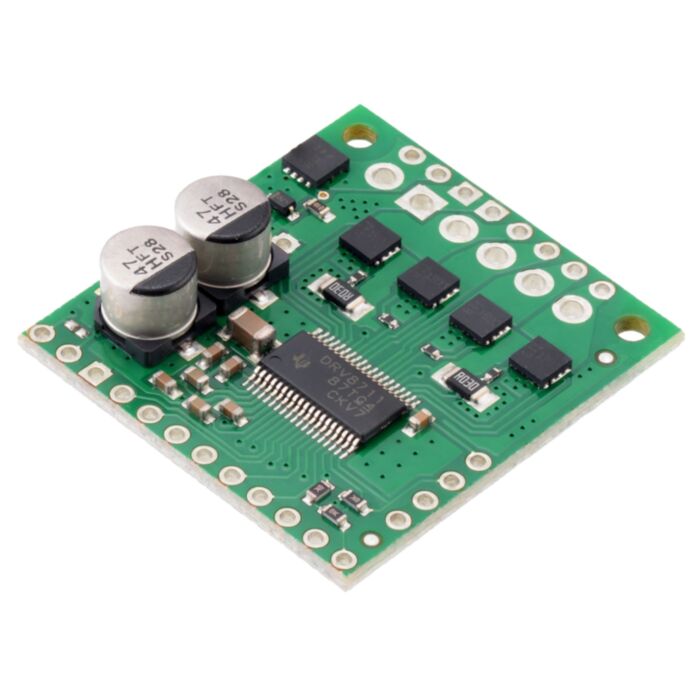

Pololu High-Power Stepper Motor Driver 36v4

SKU: POLOLU-3730 Brand: Pololu

This discrete MOSFET stepper motor driver enables control of one bipolar stepper motor. It supports a wide 8 V to 50 V operating voltage range and can...

$40.85 AUD, inc GST

$37.14 AUD, exc GST

In stock, ships same business day if ordered before 2PM
Delivered by Fri, 6th of Dec

Quantity Discounts:

10-25 $35.65 (exc GST)
25+ $34.54 (exc GST)

The Pololu High-Power Stepper Motor Driver 36v4 combines the DRV8711 stepper motor driver IC from Texas Instruments with external MOSFETs to enable control of large bipolar stepper motors at operating voltages from 8 V to 50 V. The DRV8711 has many configurable settings, so please see the DRV8711 datasheet for a detailed explanation of its features and how to use them (we also have an Arduino library that simplifies getting started by providing basic functions for configuring and operating the driver).

The driver’s power performance is a function of the external dual H-bridges, which allow the driver to deliver continuous currents up to 4 A per phase without any additional cooling such as heat sinks or forced air flow. (With sufficient additional cooling, the driver can support currents up to around 6 A per phase; see the Power dissipation considerations section below for more information, including important information about using this product safely.)

Key features

Wide 8 V to 50 V operating voltage range
High-power: can deliver up to 4 A continuous per phase without extra cooling (6 A max with sufficient additional cooling)
Highly configurable through SPI interface
Optional STEP/DIR control pins (stepping can also be controlled through SPI interface alone)
Nine different step resolutions down to 256 microsteps: full-step, half-step, 1/4-step, 1/8-step, 1/16-step, 1/32-step, 1/64-step, 1/128-step, and 1/256-step
Adjustable current control lets you set the maximum current output, enabling the use of voltages above your stepper motor’s rated voltage to achieve higher step rates
Adaptive blanking time, adjustable decay times, and various current decay modes enable the creation of ultra-smooth motion profiles through the SPI interface
Optional STALL output enables stall detection when microstepping
Optional BEMF output enables more advanced control and stall detection algorithms based on the back EMF of the stepper motor
Driver supports alternate operating mode for controlling two brushed DC motors with PWM inputs instead of one bipolar stepper motor with STEP/DIR inputs
Inputs compatible with 1.8 V, 3.3 V, and 5 V logic
Digital outputs are all open drain with pull-ups to externally supplied IOREF voltage for use with non-5V systems (IOREF can be connected to neighboring 5V OUT pin for use with 5V systems)
Under-voltage lockout, over-current protection, short circuit protection, and reverse-voltage protection (up to 40 V)
Arduino library and example sketches are available that provide basic functions for configuring and operating the driver

As an alternative to this stepper motor driver, Pololu's Tic 36v4 USB Multi-Interface High-Power Stepper Motor Controller has similar power characteristics and offers high-level interfaces (USB, TTL serial, I²C, analog voltage, quadrature encoder, and RC hobby servo pulses) that make it easier to use for some applications. The Tic’s configuration software allows you to change many of the driver’s settings over USB, eliminating the need to directly use SPI to configure the DRV8711.

19 September 2019 update: Pololu are now shipping a slight revision (md38b) with improved noise and fault tolerance at high input voltages and high current limits.

Included hardware

This product ships with all surface-mount components installed as shown in the product picture. However, soldering is required for assembly of the included through-hole parts. The following through-hole parts are included:

Two 1×12-pin breakaway 0.1" male header
Three 2-pin, 3.5 mm terminal blocks (for board power and motor outputs)
One 0.1" shorting block (for optionally connecting IOREF to neighboring V5 pin when using this driver in 5 V systems)

The 0.1" male headers can be broken or cut into smaller pieces as desired and soldered into the smaller through-holes. These headers are compatible with solderless breadboards, 0.1" female connectors, and Pololu's premium and pre-crimped jumper wires. The terminal blocks can be soldered into the larger holes to allow for convenient temporary connections of unterminated power and motor wires (see Pololu's short video on terminal block installation). You can also solder your motor leads and other connections directly to the board for the most compact installation.

Using the driver

Pinout

PIN	Description
VIN	8 V to 50 V board power supply connection (reverse-protected up to 40 V).
VM	This pin gives access to the motor power supply after the reverse-voltage protection MOSFET (see the board schematic at the bottom of this page). It can be used to supply reverse-protected power to other components in the system. This pin can also be used with the adjacent GND pin to add an external electrolytic capacitor in systems where additional bypass capacitance would be helpful.
GND	Ground connection points for the motor power supply and control ground reference. The control source and the motor driver must share a common ground.
AOUT1	Motor output: “positive” end of phase A coil.
AOUT2	Motor output: “negative” end of phase A coil.
BOUT1	Motor output: “positive” end of phase B coil.
BOUT2	Motor output: “negative” end of phase B coil.
V5 (OUT)	Regulated 5 V output: this pin gives access to the voltage from the internal regulator of the DRV8711. The regulator can only provide up to 10 mA, so it is primarily only useful for hard-wiring board inputs high and powering pull-ups for the board’s open-drain outputs. It is generally not intended for powering external devices. Note: this 5V output is disabled when the device is in sleep mode.
IOREF	All of the board signal outputs (except BEMF) are open-drain outputs that are pulled up to IOREF, so this pin should be supplied with the logic voltage of the controlling system (e.g. 3.3 V for use in 3.3 V systems). For convenience, it can be connected to the neighboring V5 (OUT) pin when it is being used in a 5 V system.
STEP/AIN1	Changes on this input move the motor current one step up or down in the translator table (even when the motor is disabled). Stepping can also be controlled through the SPI interface, so this pin is optional. In external PWM mode, this pin functions as AIN1 rather than STEP and directly controls the state of the AOUT1 output.
DIR/AIN2	Input that determines the direction of stepper motor rotation. The direction can also be controlled through the SPI interface, so this pin is optional. In external PWM mode, this pin functions as AIN2 rather than DIR and directly controls the state of the AOUT2 output.
SDATO	SPI data output. (This pin is also often referred to as “MISO”.) This pin is an open-drain output and is pulled up to IOREF on the board.
SDATI	SPI data input. (This pin is also often referred to as “MOSI”.)
SCLK	SPI clock input.
SCS	SPI chip select input. Logic transitions on this pin are required for SPI communication, even if this is the only device on the SPI bus.
SLEEP	By default, the driver pulls this pin low, which puts it in a low-power sleep mode where the motor driver circuitry and the internal 5 V regulator is disabled and all analog circuitry is placed into a low-power state. The digital circuitry still operates in sleep mode, so the device registers can still be accessed via the serial interface as long as IOREF is externally supplied. This pin must be driven high to enable the device.
RESET	Chip reset input. A logic high on this input resets all internal logic, including the indexer and device registers, and disables the driver outputs. Note: the RESET pin does not function while the device is in sleep mode.
FAULT	Open-drain output that drives low when an over-current, pre-driver, over-temperature, or under-voltage fault is occurring. This pin is pulled up to IOREF, making it high by default.
BIN1	In external PWM mode, BIN1 directly controls the state of the BOUT1 output. This pin is not used in indexer mode (i.e. when using this device as a stepper motor driver).
BIN2	In external PWM mode, BIN2 directly controls the state of the BOUT2 output. This pin is not used in indexer mode (i.e. when using this device as a stepper motor driver).
STALL/BEMFV	Open-drain output that is pulled up to IOREF on the board. In internal stall detect mode, output goes low when stall is detected. In external stall detect mode, output goes low when valid back EMF measurement is available.
BEMF	Analog output that represents the motor back EMF. The signal on this pin can be further processed by a microcontroller to implement more advanced control and stall detection algorithms.

For more information about these pins, please refer to the DRV8711 datasheet.

At high input voltages (especially above 30 V) and high current limits, the driver’s SPI interface is more likely to be affected by electrical noise from the driver and stepper motor, potentially leading to communication errors. You can reduce this interference with careful wiring and shielding, and you can lower the risk of unexpected behavior by taking appropriate precautions with SPI communication (for example, read and verify configuration settings after writing them, and avoid configuring the driver while the motor outputs are enabled). Alternatively, consider using Pololu's Tic 36v4 USB Multi-Interface High-Power Stepper Motor Controller, which provides high-level interfaces for configuration and control (making direct SPI communication unnecessary).

General typical wiring diagram

Typical wiring diagram for connecting a microcontroller to a Pololu High-Power Stepper Motor Driver 36v4.

While the High-Power Stepper Motor Driver 36v4 allows control of a stepper motor through a simple step and direction interface, it must first be enabled and configured through its SPI interface after each power-up. This means that the controlling microcontroller must be capable of acting as an SPI master (either with an SPI peripheral or software SPI), and it must be connected to the SDATI, SCLK, and SCS pins. While the SDATO and FAULT pins are not required to use this driver, it is generally a good practice to use them to monitor for error conditions.

Typical wiring diagram (5 V systems only)

Typical wiring diagram for connecting a microcontroller with a logic voltage of 5 V to a Pololu High-Power Stepper Motor Driver 36v4.

The High-Power Stepper Motor Driver 36v4 has an internal 5 V regulator that can be used to supply IOREF in cases where the board is being used in 5 V systems. Pololu provide a shorting block for connecting V5 to IOREF, or for a more compact connection, you can bridge the surface mount jumper located next to those pins (highlighted in the picture below).

Note that supplying IOREF from V5 does not allow the device registers to be accessed through SPI when the device is in sleep mode, since the V5 regulator output is disabled when SLEEP is low.

Surface mount jumper for V5 and IOREF pins on the Pololu High-Power Stepper Motor Driver 36v4.

Arduino library and example code

Controlling a Pololu High-Power Stepper Motor Driver 36v4 with an Arduino-compatible #3104 A-Star 32U4 Mini SV.

Pololu have written a High-Power Stepper Motor Driver library for Arduino that provides basic functions for configuring and operating the driver using an Arduino or Arduino-compatible controller. The library includes several example sketches.

Power dissipation considerations

The High-Power Stepper Motor Driver 36v4 can deliver up to 4 A continuous per phase under typical conditions, but the actual current it can deliver will depend on how well you can keep the module cool. The driver’s printed circuit board is designed to draw heat out of the MOSFETs, but performance can be improved by adding a heat sink or forced air flow. (Conversely, performance will be reduced in applications that limit heat dissipation, such as high ambient temperatures or operation in enclosures.) With sufficient additional cooling, the driver can deliver up to 6 A per phase before exceeding the 1 W power ratings of the 30 mO current sense resistors.

The driver’s current limit is set through its SPI interface. You can confirm you have set it correctly by using a multimeter to measure the actual current through one of the coils while the stepper motor is in full step mode and not stepping. The current you measure this way will be approximately 70% of the set limit. Please note that measuring the current draw at the power supply will generally not provide an accurate measure of the coil current. Since the input voltage to the driver can be significantly higher than the coil voltage, the measured current on the power supply can be quite a bit lower than the coil current (the driver and coil basically act like a switching step-down power supply). Also, if the supply voltage is very high compared to what the motor needs to achieve the set current, the duty cycle will be very low, which also leads to significant differences between average and RMS currents.

Warning: This motor driver has no meaningful over-temperature shut-off (while the DRV8711 IC has over-temperature protection, it is the external MOSFETs that will overheat first). An over-temperature condition can cause permanent damage to the motor driver. Pololu strongly recommend you do not increase the current limit setting beyond 4 A (or lower in applications with reduced heat dissipation) unless you can first confirm that the temperature of the MOSFETs will stay under 140°C. Note: When the driver powers up, the current limit setting defaults to the maximum (~18 A). Make sure you set it to something appropriate for both your stepper motor and the driver before activating the outputs! This product can get hot enough to burn you long before the chip overheats. Take care when handling this product and other components connected to it.

Schematic diagram

Schematic diagram of the Pololu High-Power Stepper Motor Driver 36v4.

This diagram is also available as a downloadable pdf (117k pdf).

Dimensions

Size:	1.3" × 1.2"
Weight:	4.9 g¹

General specifications

Minimum operating voltage:	8 V
Maximum operating voltage:	50 V
Continuous current per phase:	4 A²
Maximum current per phase:	6 A³
Minimum logic voltage:	1.5 V
Maximum logic voltage:	5.5 V
Microstep resolutions:	full, 1/2, 1/4, 1/8, 1/16, 1/32, 1/64, 1/128, 1/256
Current limit control:	SPI-programmable
Reverse voltage protection?:	Y⁴
Header pins soldered?:	N

Identifying markings

PCB dev codes:	md38a, md38b
Other PCB markings:	0J12286, 0J12459

Notes:

1: Without included optional headers or terminal blocks.
2: Without a heat sink or forced air flow.
3: With sufficient additional cooling. This limitation comes from the 30 mO current sense resistors, which are rated for 1 W.
4: To -40 V. Connecting supplies over 40 V in reverse can damage the device.

File downloads

Schematic diagram of the Pololu High-Power Stepper Motor Driver 36v4 (117k pdf)
Dimension diagram of the Pololu High-Power Stepper Motor Driver 36v4 (320k pdf)
3D model of the Pololu High-Power Stepper Motor Driver 36v4 (7MB step)
Drill guide for the Pololu High-Power Stepper Motor Driver 36v4 (81k dxf)

This DXF drawing shows the locations of all of the board’s holes.

Recommended links

Texas Instruments DRV8711 stepper motor controller datasheet
Arduino library for the Pololu High-Power Stepper Motor Driver

This library for Arduino makes it easy to interface with Pololu High-Power Stepper Motor Driver 36v4.
DRV8711 Decay Mode Setting Optimization Guide
DRV8711 documentation

Texas Instruments’ product page for the DRV8711 stepper motor gate driver IC, with links to its most up-to-date datasheet, application notes, and other resources.
