Pirate-4WD Mobile Platform

SKU: ROB0003

$71.90 AUD, inc GST
$65.36 AUD, exc GST

More Views

Pirate-4WD Mobile Platform
71.9 AUD

SKU: ROB0003

$71.90 AUD, inc GST
$65.36 AUD, exc GST

Shipping:

  • $6.95 Standard (2-4 days, tracked)
  • $9.95 Express (Overnight*, tracked)
  • $3 Economy Post* (3-7 days, no tracking)
  • FREE Pickup (Newcastle only)

Shipping costs may increase for heavy products or large orders.

Exact shipping can be calculated on the view cart page.

*Conditions apply, see shipping tab below.

Introduction

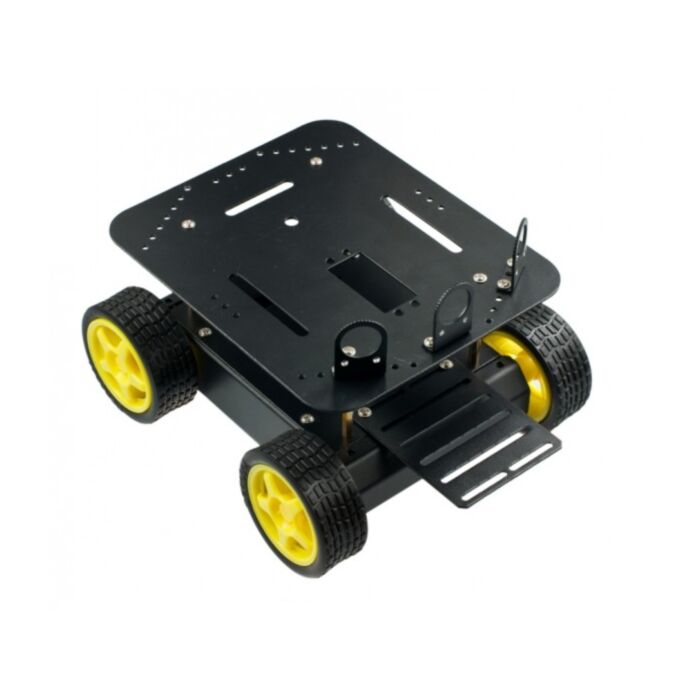

The DFRobot 4WD Arduino Mobile Platform is intended for use with the DFRobot ROMEO Microcontroller and includes 4x drive motors, 4x wheels and a complete chassis with mounting hardware. The included second level allows you to add even more electronics and even has a space for a standard servo motor. The high-strength aluminum alloy body material provides flexibility in rapid movement particularly in outdoor grass, gravel, sand or sloped surface. The 4WD Arduino Mobile Platform is also suitable for robot competitions and research related projects.

Application

  • 4WD Arduino mobile robot development platform
  • 4 high-quality micro-speed motor
  • Electrical supply voltage: 3 ~ 12V
  • Complete chassis with mounting hardware
  • Variety of sensors can be added

Specification

  • 4WD Mobile platform Motors: 3-12V DC
  • Speed: 90cm/s
  • Dimensions: 200mm x 170mm x 105mm
  • Motor Specification
    • Gear Ratio 1:120
    • No-load speed(3V):100RPM
    • No-load speed(6V):200RPM
    • No-load current(3V):60mA
    • No-load current(6V):71mA
    • Stall current(3V):260mA
    • Stall current(6V):470mA
    • Torgue (3V): 1.2Kgcm
    • Torque (6V): 1.92Kgcm
    • Size: 55mm x 48.3mm x 23mm
    • Weight:45g

Shipping List

Warning: Motor encoders are not compatible with this Platform

Optional Parts

Documents

Projects

  • Raspberry Internet Rover(Based on Pirate 4WD platform and Romeo V2)
