Pico Inky Pack

SKU: PIM634 Brand: Pimoroni

Retired Product

Replaced by: Badger

This product has been replaced by: Badger
This product is no longer available. This page is only for reference.

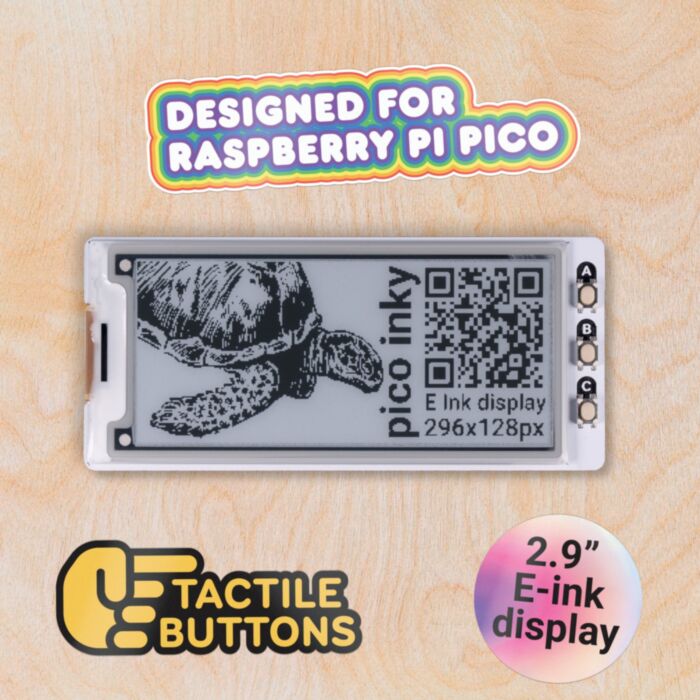

A svelte 2.9" (296x128px) mono E Ink® display for Raspberry Pi Pico / Pico W.

Pico Inky Pack features the speedy 2.9" e-paper display that you can find on Badger 2040, coupled with three handy buttons for interfacing. Equip it to the back of your Pico or Pico W to give it a classy, readable display (and +1 to crispness). This screen leaves plenty of pins free on the Pico, so it's ideal for combining with other Packs, sensors or breakouts.

Pimoroni are super hyped to try this screen with the shiny new Raspberry Pi Pico W and see what we can do with the new wireless connectivity. Can we make it display tweets or news headlines or live bus timetables or traffic updates? Perhaps we can hook it up to our home automation and use it as a little dashboard?

Your Pico will need to have pin headers soldered to it (with the pins pointing downwards) to attach to our add-on boards.

RP2040 x E Ink®

Pimoroni are big fans of electronic paper at Pirate HQ - it makes for a lovely, crisp, high contrast display that's readable even in bright sunlight and it doesn't squirt unnecessary blue light into your environs like LCDs do. It's also ultra low power (EPD displays only consume power while they're refreshing), and the images on the display stick around for a really long time whilst the display is unpowered.

Using a RP2040 chip means we can drive the hardware in fun, experimental, low level ways. Pimoroni has written custom drivers for the EPD display that prioritise low power consumption whilst enabling lightning fast refresh rates.

Features

2.9" black and white E Ink® display (296 x 128 pixels)

Ultra wide viewing angles
Ultra low power consumption
Dot pitch - 0.227 x 0.226 mm

3 x tactile buttons
Built in Captain Resetti (reset button!)
Pre-soldered socket headers for attaching to Pico
Compatible with Raspberry Pi Pico/Pico W.
Fully assembled
No soldering required (as long as your Pico has header pins attached).
C/C++ and MicroPython libraries
Schematic (coming soon!)

A Raspberry Pi Pico / Pico W is not included so make sure to grab one!

Software

Our C++/MicroPython libraries are packed with nifty software tweaks to get the most out of this screen. You'll get best performance using C++, but if you're a beginner we'd recommend using our batteries included MicroPython build for ease of getting started.

Notes

Measurements: 87 x 38.7 x 9.7 mm (L x W x H, approx)
This pack is wideboi. Even though it's bigger than our other Pico Packs, Inky Pack will still work with Pico Omnibus or Pico Decker, if you want to use more than one Pico Pack at once. Please note though that if you plug it into a Pico Decker, it will overhang the addon slots next to it.

About Raspberry Pi Pico

Raspberry Pi Pico is a flexible, low cost microcontroller development board from the folks at Raspberry Pi, based on their very own chip - the RP2040. It's easily programmable over USB with C/C++ or MicroPython, and ideal for using in all sorts of physical computing projects, devices and inventions - Pimoroni are so excited to see what you make with it! As of June 2022, you can also buy a Raspberry Pi Pico W which has wireless connectivity.

Pimoroni has called our Pico-sized add-ons packs, as they're designed to attach to the back of your Pico as if it were wearing a very stylish back pack (or a miniature jet pack, if you prefer). Pimoroni has also got Pico bases (larger add-on boards with a space to mount your Pico on top) and some other boards that let you do interesting hackerly things like using multiple packs at once - click here to view them all!
