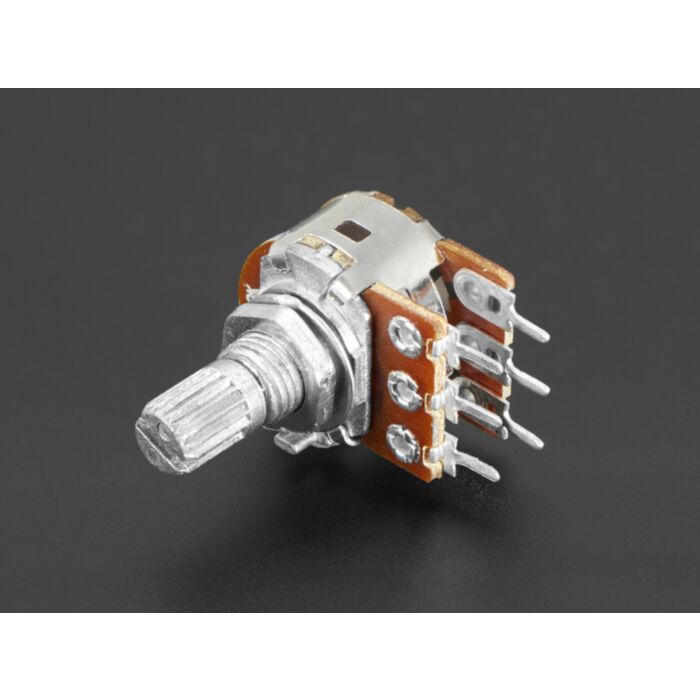

Panel Mount 10K Dual Linear Potentiometer - 10K Dual Linear

SKU: ADA3392 Brand: Adafruit

This Panel Mount 10K Dual Linear Potentiometer is a dual-ganged potentiometer that will satisfy all your stereo-signal needs. Instead of just one potetiometer, you...

$3.70 AUD, inc GST

$3.36 AUD, exc GST

Quantity Discounts:

10-25 $3.23 (exc GST)
25+ $3.13 (exc GST)

Out of Stock

This Panel Mount 10K Dual Linear Potentiometer is a dual-ganged potentiometer that will satisfy all your stereo-signal needs. Instead of just one potetiometer, you actually get two separate pots, 'ganged' together. Turning the grippy shaft twists both standard linear-taper 10Kohm potentiometers. It's smooth and easy to turn, but not so loose that it will shift on its own. They also offer this potentiometer in a singular configuration.

Unlike many of Adafruit's other potentiometers, this one is not breadboard-friendly. The pins are about 0.2" apart so it will fit into a breadboard, but the two rows are close together so you'd short the two halves. Thus, we suggest soldering wires to the pins as necessary, using these in a perf-board that doesn't have the rows connected, or designing a custom PCB.

Once you're done prototyping, you can drill a hole into your project box and mount the potentiometer using the included washer and hex nut. Adafruit have got plenty of matching T18-splined knobs that you can pair up

Technical Details

10K ohm potentiometer, linear taper
100,000 Cycle Life
16mm Body
Rotational travel: 300°
Static Stop Strength: 90 oz-in
Rotational Torque: 0.5 to 1.25 oz-in

Product Dimensions: 26.3mm x 25.0mm x 17.0mm / 1.0" x 1.0" x 0.7"

Product Weight: 7.7g / 0.3oz
