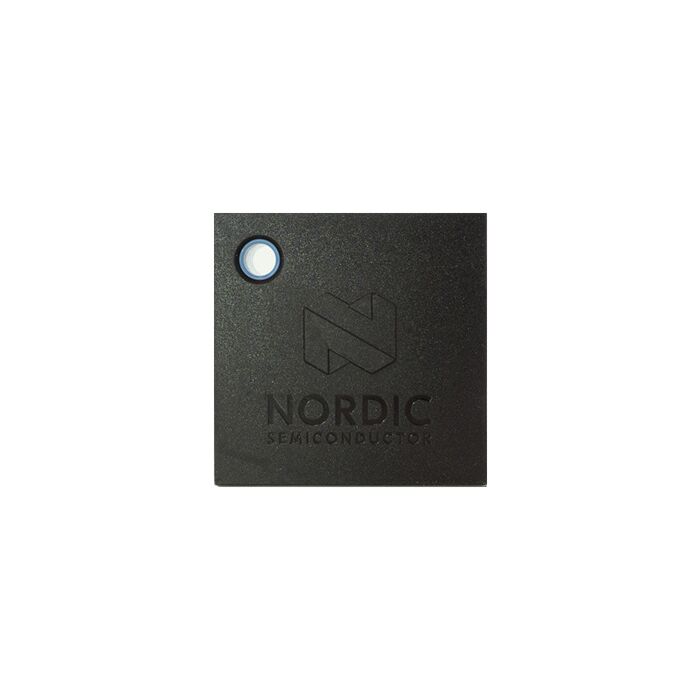

Nordic Semiconductor Thingy:52™ IoT Sensor Development Kit

SKU: KIT-16821 Brand: Sparkfun

Retired Product

Replaced by: Nordic

This product has been replaced by: Nordic
This product is no longer available. This page is only for reference.

The Nordic Thingy:52™ is an easy-to-use prototyping platform, designed to help in building prototypes and demos, without the need to build hardware or even write firmware. It is built around the nRF52832 Bluetooth 5 SoC.

All sensors and actuators can be configured over-the-air using Bluetooth Low Energy. It makes it possible to create demos and prototypes without starting from scratch. It connects to Bluetooth Low Energy-enabled smart phones, tablets, laptops and similar devices, and it sends/receives data from/to its sensors/actuators to an app or cloud. It includes an NFC antenna, and has 1 button and 1 RGB LED that simplifies input and output.

It comes with the accompanying Nordic Thingy:52 app for iOS and Android, and a web Bluetooth API app. It also offers cloud connectivity through the IFTTT web service.

It is powered with a rechargeable Li-Po battery with a capacity of 1440 mAh, that can be charged via USB. Source code for firmware and mobile apps and hardware layout and schematics are available.

Features

Highly configurable IoT sensor kit
nRF52832 System on Chip (SoC)
Low power consumption
Near Field Communication (NFC) support
Configurable RGB LED and button
Cloud connectivity
Android and iOS apps
Web Bluetooth API
Environmental sensors
- Temperature
- Humidity
- Air pressure
- Air quality (CO2 and TVOC)
- Color and light intensity
9-axis motion sensing
- Tap detection
- Orientation
- Step counter
- Quaternions
- Euler angles
- Rotation matrix
- Gravity vector
- Compass heading
- Raw accelerometer, gyroscope, and compass data
Built-in speaker and microphone
Over-the-Air firmware upgradable
