ModMyPi - Pi Camera Box Bundle (Case, Lens & Wall Mount) - A+

SKU: CE05778 Brand: ModMyPi

Retired Product

Replaced by: CE07177
This product has been replaced by: CE07177
This product is no longer available. This page is only for reference.

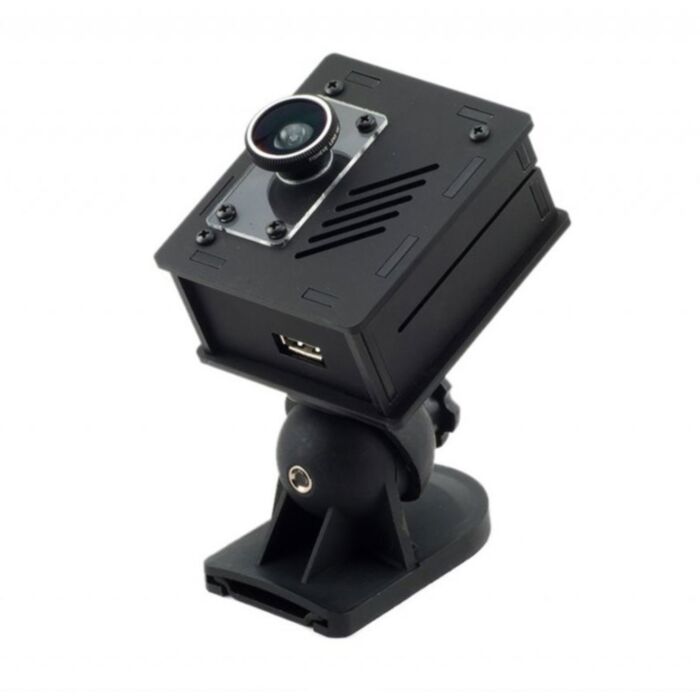

This bundle includes a specially designed black matte Pi Camera Box Case, a Magnetic Fish-Eye Lens and Camera Box Wall Mount for the Raspberry Pi Model A+.

The Camera Box has been upgraded to fit the Raspberry Pi 3 A+ / Raspberry Pi A+ and V2 Camera Module / Noir Camera Module (Sold Separately)

The flexibility of this design is ideal for using a Raspberry Pi and its camera module in a variety of applications such as security with a wide angle fish-eye lens, process monitoring, computer vision, high-definition time lapses, motion sensing and many other fun projects.

Pi Camera Box Case

The 'ModMyPi Pi Camera Box' is designed for hosting a Raspberry Pi computer (model A+) and a Pi Camera module together in a compact and versatile enclosure. This all-integrated design ensures that the camera's fragile ribbon cable doesn't get damaged while exposed during operation. This case can accommodate an optional magnetic camera lens, which opens up new possibilities above and beyond the outstanding optical quality of the Pi Camera module. The black matte case is opaque, ensuring that the red led mounted on the Pi Camera module will not affect the ambient light captured by the camera. The back of the 'Pi Camera Box' can accept an optional wall-mounting bracket for permanent installations.

Features

  • Black matte acrylic
  • Assembly time: about 10 minutes
  • Access to all of Pi's connectors
  • Features vents on the bottom, top, left and right walls
  • Features a slot for a GPIO ribbon cable
  • Dimensions: 101mm x 70mm x 33.3mm
  • 3mm thick black acrylic case (7 pieces, including left walls for both models A and B)
  • 4x rubber feet

Camera Box Wall Mount

The Raspberry Pi Camera, enclosed with the Pi in the Camera Box, and equipped with a fish eye lens, is a very capable surveillance and monitoring system that is easy to connect and program. To make the most of it, the Pi Camera box should be steadily mounted to a wall or a ceiling and should be properly angled. This bracket allows tilting and swiveling of the device. Just tighten the thumb screws when you have found the right position and you're done.

Features

  • Bracket max. weight: up to 3.5kg (7.7 lbs)
  • Wall/ceiling mounting screws
  • Tilt angle: -24° to +15°
  • Swivel angle: ~75° left and right
  • Thumb screws for easy angle adjustments


Magnetic Fish-Eye Lens

The Raspberry Pi's camera offers great features out-of-the-box, which can be enhanced by adding interchangeable lenses. The fish-eye lens will give your Raspberry Pi camera a panoramic view of its surroundings, making it perfect for surveillance, security, and general monitoring scenarios. The Pi Camera Box is designed to receive the small metal ring needed for binding the magnetized fish-eye lens to the case.

Features

  • Magnetic fish-eye lens
  • 180-degree angle (see note below)
  • Self-adhesive metal ring mount
  • Plastic lens cap
  • Key-chain attachment

Pi Camera Box Assembly Instructions
