MODBUS-RTU RS485 Soil EC and pH Monitoring Sensor (IP68, 5-30V)

Skip to the beginning of the images gallery

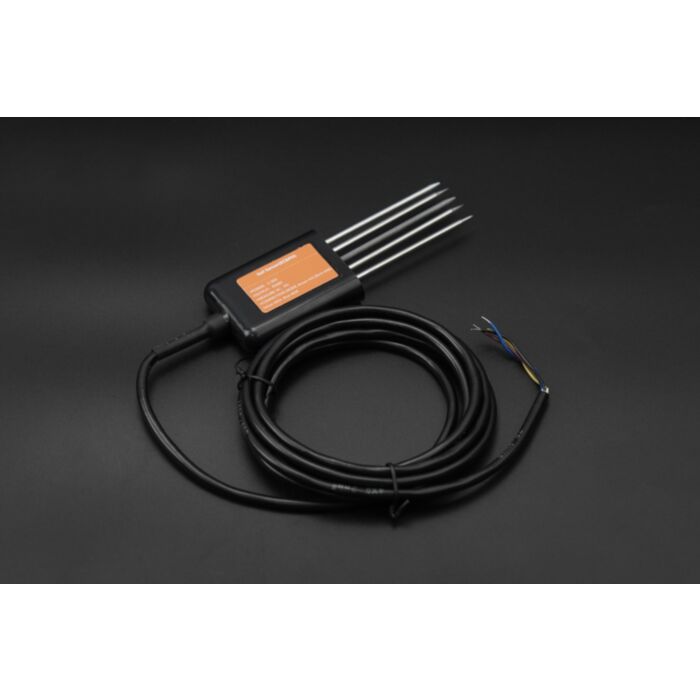

MODBUS-RTU RS485 Soil EC and pH Monitoring Sensor (IP68, 5-30V)

SKU: SEN0603 Brand: DFRobot

The 2-in-1 integrated soil sensor features reliable soil pH and EC monitoring. Ideal for agriculture and soil data collection. Compatible with Arduino UNO...

Special Price $91.22 AUD, inc GST

Regular Price $117.91 AUD, inc GST

$82.93 AUD, exc GST

Special pricing ends 05 August 2024

* this special may end earlier than shown

Available with a lead time
Expect dispatch between May 16 and May 20

The soil sensor provides quick access to soil electrical conductivity (EC) and pH data, optimizing plant growth conditions. It accommodates a wide voltage power supply of 5-30V and transmits data via RS485, utilizing the reliable MODBUS-RTU protocol. The response of the soil sensor is swift, with stable and reliable output. It is compatible with Arduino UNO R3 and TTL to 485 expansion board for swift test environment setup.

The soil sensor boasts an IP68 protection level, vacuum-filled and sealed with black flame-retardant epoxy resin. The probe, crafted from 316 stainless steel, offers rust-proof, waterproof, anti-corrosion, salt-alkali corrosion resistance, and long-term electrolysis resistance properties. Its performance is influenced by the soil salt content. Compact in size, it can be buried in the soil for extended periods and is compatible with various soil types.

Wiring Diagram of soil sensor and Arduino Uno

Probe Material - 316 Stainless Steel

The soil sensor features an automatic temperature compensation function for conductivity, ensuring measurement accuracy regardless of environmental changes. Its applications span across agricultural irrigation, greenhouses, floriculture and vegetable farming, grassland pastures, rapid soil testing, plant cultivation, scientific experiments, grain storage, and other soil environment testing scenarios.

Soil electrical conductivity (EC) represents the salinity level in the soil. These parameters serve as crucial indicators of soil fertility and health, with a direct impact on plant life. High salt content in soil impedes water absorption by plants, despite high soil moisture content. This condition could eventually “burn” the plant. Optimal plant growth occurs within preferred environmental conditions, including specific ranges of soil moisture, temperature, and EC levels. Data on these parameters is essential for growers to understand necessary actions for ensuring plant health and achieving higher yields.

Soil pH, also referred to as “soil reaction”, is an acid-base reaction of the soil solution. It primarily depends on the concentration of hydrogen ions in the soil solution, expressed by the pH value. A solution with a pH value of 7 is neutral; a solution with a pH value less than 7 exhibits an acidic reaction; a solution with a pH value greater than 7 shows an alkaline reaction. Soil pH can generally be categorized into the following levels:

PH value Soil acidity and alkalinity

<4.5 Extremely acidic

4.5-5.5 Strongly acidic

5.5-6.5 acidic

6.5-7.5 Neutral

7.5-8.5 alkaline

8.5-9.5 Strongly alkaline

>9.5 Extremely alkaline

How to install and use the soil sensor

Features

5-30V wide voltage power supply

RS485 output, can be used with Arduino

With automatic temperature compensation, high precision, fast response and stable output

Stainless steel probe can be buried in soil or water for a long time

Resin vacuum filling and sealing, IP68 protection level

Applications

Applications of RS485 EC and pH Soil Sensor - Agricultural Irrigation and Greenhouses

Specification

Power supply voltage: DC 5-30V

Power consumption: 0.5W@24V

Output mode: RS485

Detection parameters: Electrical Conductivity (EC), PH

EC parameters

Measuring range: 0-20000us/cm

Resolution: 1us/cm

Accuracy: 0-10000us/cm@±3%FS, 10000-20000us/cm@±5%FS

Temperature compensation: memory temperature compensation, compensation range 0-50°C

pH parameters

Measuring range: 3-9pH

Resolution: 0.1pH

Protection level: IP68

Probe material: anti-corrosion special electrode

Sealing material: black flame retardant epoxy resin

Working temperature: -20°C~+60°C

Cable length: 2m

Size: 123*45*15mm

Documents

Product wiki

Parts List

RS485 Soil Sensor (EC&PH) x1
