micro: Maqueen (with micro:bit/IR Remote Controller)

SKU: ROB0148-3 Brand: DFRobot

Retired Product

Replaced by: ROB0148

This product has been replaced by: ROB0148
This product is no longer available. This page is only for reference.

Introduction

Remind: This is a set of multiple product combinations, each product with independent packaging and delivery. Batteries are not included.

I am Maqueen Hello, my name is Maqueen, is a graphical programming robot for STEM education, which inherits playability and simple operation of micro:bit. The Mini-body, interesting features and plug-and-play allow children to quickly learn graphic programming in entertaining, nurturing children's interest in science and logical thinking. Suggest Age: 8 + Maqueen is accessible to Mind+ Programming platform now. Mind+ is a Scratch3.0-based graphical programming platform from DFRobot, supporting python, Arduino and other programming platforms. At present, Mind+ has been applied to all kinds of sensors, modules and related educational products.

Best DIY Robot kit for beginners - Micro:Bit

DFRobot micro Maqueen Motor and Line Sensor

Amazing! DIY Robot kit Maqueen V2.0 - BBC Micro:Bit

Amazing DIY Robot Kit

Line follower robot - Micro: bit robot project - How to make a Snake Robot

Maqueen micro:bit Educational Programming Robot Platform

Playing with the BBC Micro:Bit robot

DIY Cheap Education Robot with 20USD

Plataforma Robot de Programación Educativa | Maqueen micro bit

micro-bit robot multipurpose MAQUEEN programmed with scratch perfect for CHILDREN

Smartphone controlled Robot

Como programar y armar robot Maqueen con control remoto x infrarrojo con arduini mini por DFRobot

The STEM Robot for Kids: Maqueen Runs The Egg

Features

Support for Makecode, will support Scratch and python later.
Small size, flexible movement.
All-metal miniature gear motor, good quality, strong driving force.
Line patrol, ambient light, LED lights, ultrasonic interface, buzzer, I2C interface, mechanical expansion screw hole, etc. ... full-featured, highly expandable.
Exclusive customized POM bearing wheel, flexible and reliable, strong obstacle crossing ability.
Easy to install, easy to use.

Specification

Supply Voltage: 3.5V~5V DC ( Three AAA batteries or 3.6V~3.7V lithium battery )
Infrared Grayscale Sensor(High-low level) x 2
Buzzer x 1
Infrared Receiver (NEC decoder) x 1
LED Lights (High-low level control) x 2
RGB Ambient Light (16 million colors) x 4
SR04, SR04P Ultrasonic Interface(5V) x 1
IIC Interface (3.3V) x 1
Gravity Extension Interfaces (P1, P2) x 2
N20 All-metal Gear Motor x 2
Motor Reduction Ratio: 1:150
Maximum Rotate Speed: 133 rpm
Motor Drive Mode: PWM motor drive
Bracket and Protective Cover Extension M3 Screw Hole x 6
Programming Method: Makecode graphical programming, Mind graphical programming (based on Scratch 3.0)
Dimension: 81mm x 85 mm x 44mm/3.19 x 3.35 x 1.73in
Weight: 75.55g

Documents

Product wiki

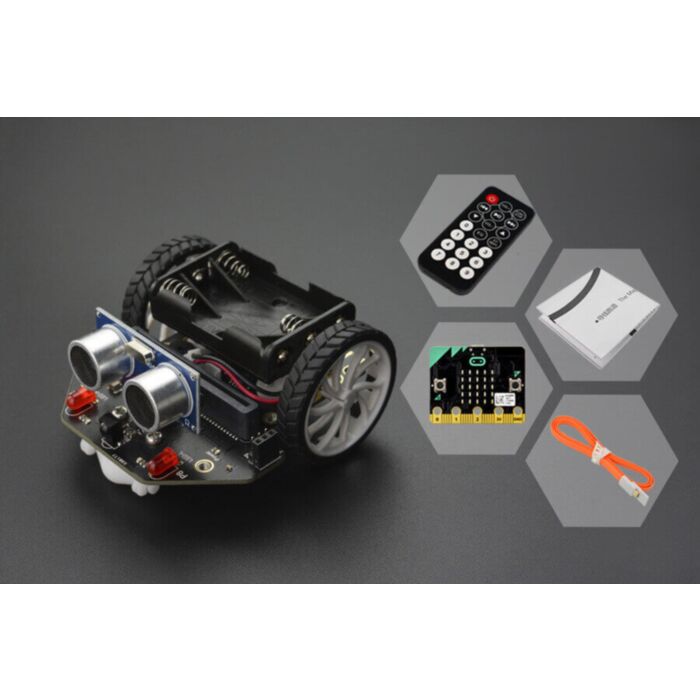

Shipping List

micro:Maqueen micro:bit Educational Programming Robot Platform *1

micro:bit - an Educational Creative Tool for Kids *1

Flat Noodle Micro USB Cable 1.2m *1

micro:Gamepad *1

micro: Maqueen Line-tracking Map *1
