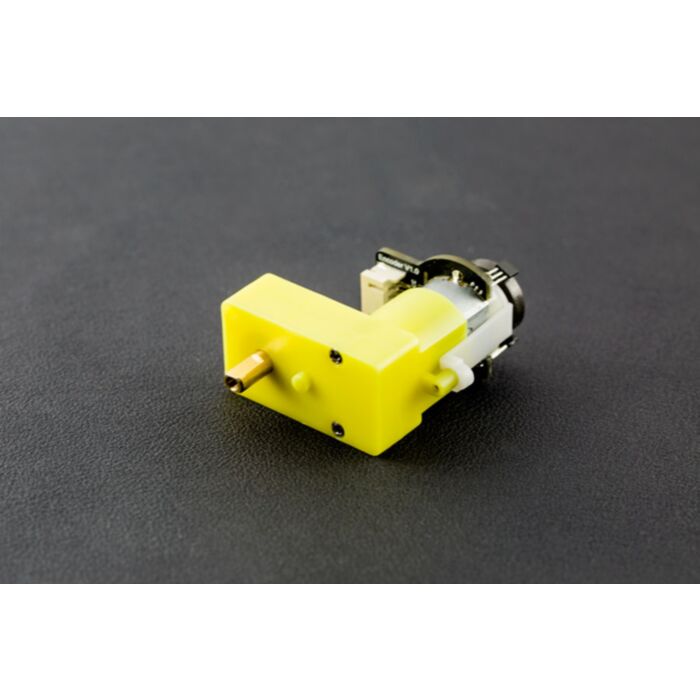

Micro DC Geared Motor w/Encoder-SJ02 (6V 160RPM 120:1)

Rating:
100% of 100
SKU: FIT0458 Brand: DFRobot
This is the DFRobot Micro DC geared motor with encoder. It is a motor with a 120:1 gearbox and an integrated quadrature encoder that provides a resolution of 16 pulse single per round giving a maximum output of 1920 within one round. With an Arduino controller and motor driver, applications for this include a closed-loop PID control or PWM motor speed control. This motor is an ideal option for mobile robot projects. The copper output shaft, embedded thread and reinforced connector greatly extends the motor's service life.
$13.20 AUD, inc GST
$12.00 AUD, exc GST

Available with a lead time
Expect dispatch between Mar 11 and Mar 18

Quantity Discounts:

  • 10-25 $11.64 (exc GST)
  • 25+ $11.40 (exc GST)
- +

0 from local stock, 1 supplier stock; your order will dispatch between Dec 1 to Dec 10. And yes, stock levels and lead times are accurate!

Shipping:

  • $6+ Standard (5+ days*, tracked)
  • $10+ Express (2+ days*, tracked)
  • FREE Pickup (Newcastle only - must order online*)

Shipping costs may increase for heavy products or large orders.

Exact shipping can be calculated on the view cart page.

*Conditions apply, see shipping tab below.

Introduction

This is the DFRobot Micro DC geared motor with encoder. It is a motor with a 120:1 gearbox and an integrated quadrature encoder that provides a resolution of 16 pulse single per round giving a maximum output of 1920 within one round. With an Arduino controller and motor driver, applications for this include a closed-loop PID control or PWM motor speed control. This motor is an ideal option for mobile robot projects. The copper output shaft, embedded thread and reinforced connector greatly extends the motor's service life.

Specification

  • Gear ratio: 120:1
  • No-load speed @ 6V: 160 rpm
  • No-load speed @ 3V: 60 rpm
  • No-load current @ 6V: 0.17A
  • No-load current @ 3V: 0.14A
  • Max Stall current: 2.8A
  • Max Stall torque: 0.8kgf.cm
  • Rated Torque: 0.2kgf.cm
  • Encoder Operating Voltage: 4.5~7.5V
  • Motor Operating Voltage: 3~7.5V (Rated voltage 6V)
  • Operating Ambient Temperature: -10 ~ +60°C
  • Weight: 50g

Documents

Parts List

  • Micro DC Motor with Encoder-SJ02 x1
  • JST 2-Pin motor cable x1
  • JST 4-Pin encoder cable x1
