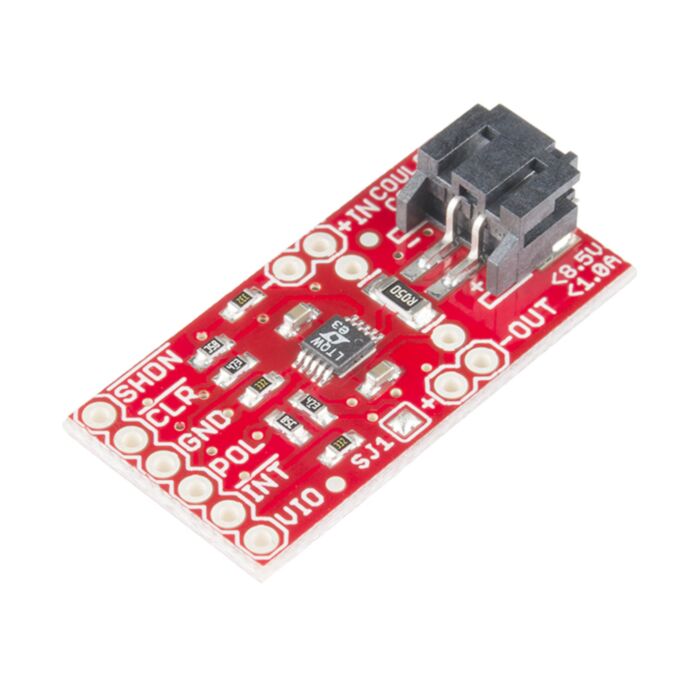

LTC4150 Coulomb Counter Breakout

SKU: BOB-12052 Brand: Sparkfun

Odometers are extremely useful for cars, they tell you how far you have gone, wouldn’t it be nice if you were able to have a device that does the same for electrical current? The LTC4150 Coulomb Counter Breakout is here to be your odometer for current. If you are wondering: a coulomb is defind as, to put it simply, one amp for one second. This breakout is capable of constantly monitoring the current your sensor is using, is able to add it up, and will give you a pulse each time a given amount of amp-hours have been used. When used effectively and if you start with a full battery, you’ll always know exactly how much of it is left!

$27.60 AUD, inc GST

$25.09 AUD, exc GST

Available with a lead time
Expect dispatch between Dec 27 and Dec 30

Quantity Discounts:

10-25 $24.34 (exc GST)
25+ $23.84 (exc GST)

Odometers are extremely useful for cars, they tell you how far you have gone, wouldn't it be nice if you were able to have a device that does the same for electrical current? The LTC4150 Coulomb Counter Breakout is here to be your odometer for current. If you are wondering: a coulomb is defind as, to put it simply, one amp for one second. This breakout is capable of constantly monitoring the current your sensor is using, is able to add it up, and will give you a pulse each time a given amount of amp-hours have been used. When used effectively and if you start with a full battery, you'll always know exactly how much of it is left!

At one end of the Coulomb Counter Breakout are headers labeled IN and OUT. Connect your battery or power supply to the IN header or JST battery connector (they're identical), and connect the OUT header to your project. At the other end of the Coulomb Counter you'll find a header with six pins. These are the pins you'll need to connect to your microcontroller and include VIO (Voltage Input), INT (Interrupt), POL (Polarity), GND (Ground), CLR (Clear), and SHDN (Shutdown). Simply install this breakout out between your power source and your circuit, that way all the current your circuit uses needs to pass through the Coulomb Counter to be measured.

Features:

Operating Voltage: 2.7V - 8.5V
Operating Current: 1A
Indicates Charge Quantity and Polarity
±50mV Sense Voltage Range
32.55Hz/V Charge Count Frequency
1.5µA Shutdown Current

Documents:

Schematic
Eagle Files
Hookup Guide
Datasheet (LTC4150)
GitHub (Example Code & Design Files)
Product Video

This product is listed in:

Sensors>Current
