Kitronik Tricolour LED Board

SKU: CE09195 Brand: Kitronik
The Kitronik TriColour LED board is a pre-built strip board designed for low-power lighting displays, such as edge-lit signs and illustrations. It has...
$5.95 AUD, inc GST
$5.41 AUD, exc GST

Available with a lead time
Expect dispatch between Mar 06 and Mar 11

Quantity Discounts:

  • 10-25 $5.25 (exc GST)
  • 25+ $5.14 (exc GST)
- +

0 from local stock, 1 supplier stock; your order will dispatch between Dec 1 to Dec 10. And yes, stock levels and lead times are accurate!

Shipping:

  • $6+ Standard (5+ days*, tracked)
  • $10+ Express (2+ days*, tracked)
  • FREE Pickup (Newcastle only - must order online*)

Shipping costs may increase for heavy products or large orders.

Exact shipping can be calculated on the view cart page.

*Conditions apply, see shipping tab below.

Does not include acrylic - See if a local Fab Lab, Makerspace, or your Workplace has a laser cutter to make your own laser-cut artwork! Use the edge-cut files to insert into the PCB

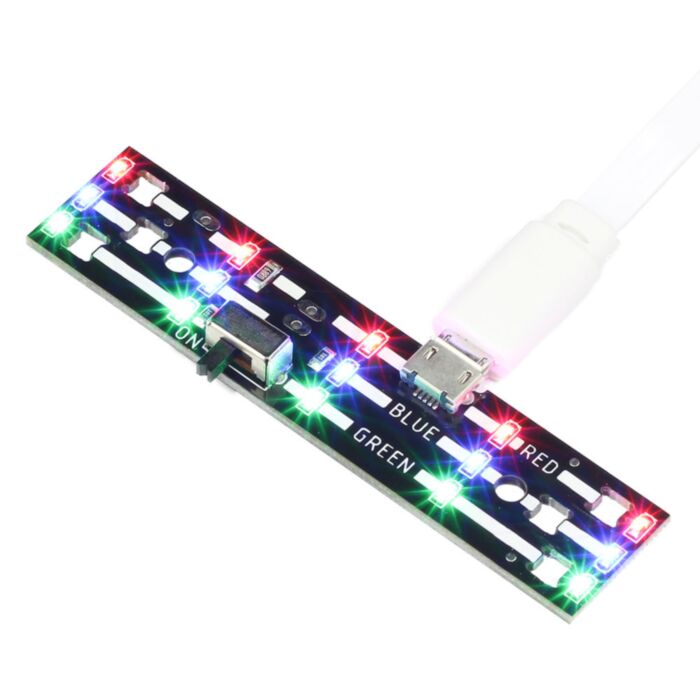

The Kitronik TriColour LED board is a pre-built strip board designed for low-power lighting displays, such as edge-lit signs and illustrations. It has been designed such that its power requirement is within the supply rating of a computer USB port (under 100mA).

The board features 15 LEDs; 5 x green, 5 x blue, and 5 x Red running in three colour rows down the length of the board. This allows for edge-lit designs featuring three separately lit acrylic sign parts, making it a great platform for more ambitious and imaginative designs.

The PCB is approximately 75mm long, 17mm wide, and is provided with a pair of M3 mounting holes, and sets of alignment holes to align 3mm (nominal) acrylic with the LEDs. The side-mounted switch can be used to turn on/off the LEDs. An additional switch can be connected in parallel with the PCB switch to allow remote mounting within an enclosure.

When using a remote switch the PCB-mounted switch should be left switched to ‘Off’. The remote switch is wired across the pads marked +5V and Switched Voltage.

Power is supplied to the board via a Micro USB power connector. It is possible to connect a non-USB power supply to the board via the 5V and 0V pads. Caution: voltages over 5.5V may cause damage to the board. Wire to +5V and 0V to use the onboard switch, or wire the 5V to a remote switch and then into the Switched Voltage and 0V pads to use a remote switch.

It is possible to wire one switch to control several boards simultaneously. Caution: voltages over 5V may cause permanent damage to the board.

Features:

  • Level up your edge-lit signs, static displays, and illustrations with the TriColour LED board.
  • 5 LEDs; 5 x green, 5 x blue, and 5 x Red running in three colour rows down the length of the board.
  • It has been designed such that it is within the supply rating of a computer USB port (under 100mA).
  • The PCB is approximately 75mm long, 17mm wide.
  • There are two M3 mounting holes.
  • The LEDs are controlled by an onboard on/off switch, there are also pads to allow you to connect a remote switch.
  • Power is supplied to the board via a Micro USB power connector.
  • The board also features power pads to allow for powering via a non-USB power source.
  • One remote on/off switch can be used to multiple boards simultaneously.

Contents:

  • 1 x Kitronik TriColour LED board.

Dimensions:

  • Length: 75mm.
  • Width: 17mm.
  • Max Height: 7mm.

Requires:

Resources:



This product is designed and manufactured in the UK by Kitronik.
