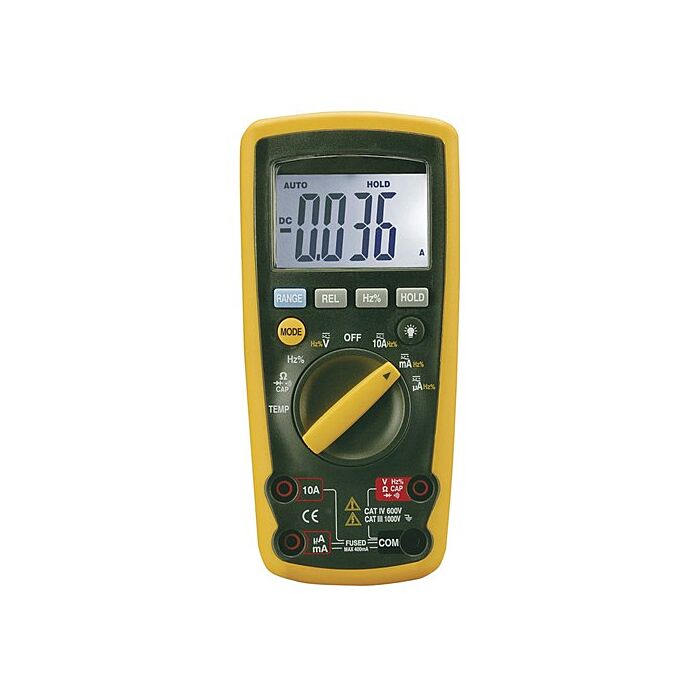

IP67 True RMS Autoranging Cat IV DMM with Wireless USB

Retired Product

Replaced by: CE05530

This product has been replaced by: CE05530
This product is no longer available. This page is only for reference.

A quality true RMS multimeter with a wireless USB computer interface, non-contact voltage indicator, relative zero and data hold. Double moulded housing is impact resistant and quite durable, and IP67 waterproof rating makes this DMM capable of even the harshest conditions. Wireless USB interface and included logging software allow for computer based live data logging whilst keeping your computer completely isolated and protected.

ﾕ IP67 waterproof
ﾕ True RMS
ﾕ Wireless USB interface
ﾕ PC logging software
ﾕ Auto power-off
ﾕ Backlight
ﾕ Non-contact voltage
ﾕ Data hold
ﾕ Diode test
ﾕ Autoranging
ﾕ Audible continuity
ﾕ 10A current range
ﾕ Double moulded case
Part No QM1571
Display 4000 count
Security Class Cat IV 600V
Basic DCV accuracy 0.500%
DC voltage 400mV, 4V, 40V, 400V, 1000V (ﾱ0.5%)
AC voltage 400mV, 4V, 40V, 400V, 1000V (ﾱ0.8%)
DC current 4mA, 40mA, 400mA, 10A (ﾱ1.2%)
AC current 4mA, 40mA, 400mA, 10A (ﾱ1.8%)
Resistance 400R, 4k, 40k, 400k, 40M (ﾱ0.8%)
Capacitance 4nF, 40nF, 4ﾵF, 40ﾵF, 100uF(ﾱ3%)
Frequency 4kHz, 40kHz, 400kHz, 4MHz, 10MHz (ﾱ1.5%)
Inductance -
Temperature -20ﾰC to +760ﾰC (ﾱ3.0%)
Ave/RMS True RMS
Input impedance 10M
Special features Wireless USB, IP67, True RMS, non-contact voltage
Dimensions 170(L) x 79(W) x 50(H) mm
