Industrial USB TO TTL (C) 6pin Serial Cable, Original FT232RNL Chip, Multi Protection Circuits, Multi Systems Support, With Hardware Flow Control

SKU: WS-26739 Brand: Waveshare

Retired Product

Replaced by: RS232 Adapter
This product has been replaced by: RS232 Adapter
This product is no longer available. This page is only for reference.
Industrial USB TO TTL (C) 6pin Serial Cable, Original FT232RNL Chip, Multi Protection Circuits, Multi Systems Support, With Hardware Flow ControlIndustrial USB to TTL serial cable Type C

Original FT232RNL | Stable Transmission | Multi Devices | Multi Systems

Suitable for serial port debugging of industrial equipments, with hardware flow control

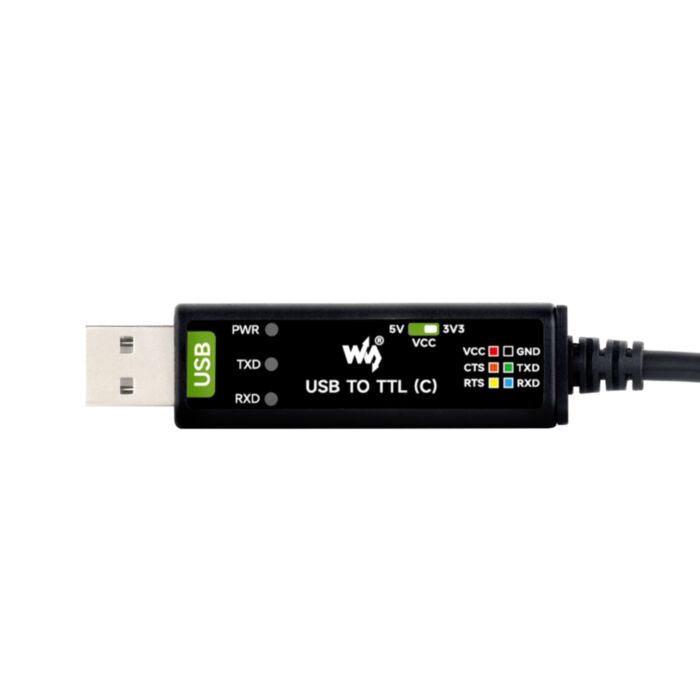

Industrial USB TO TTL 6pin serial cable, adopts original FT232RNL chip, onboard power supply and signal indicators, supports 3.3V/5V voltage level switching, built in self-recovery fuse, ESD and IO protection diode circuits, etc.

Specifications
Product categoryIndustrial USB TO TTL serial cable
Chip schemeFTDI original FT232RNL
Host portUSB
Data rate300bps ~ 3Mbps
Device PortUART
USB portConnector: USB-A
Protection: self-recovery fuse, ESD protection
UART portConnector: separated 6pin female header
Protection: IO protection diode
IndicatorPWR: power indicator, turns on when there is USB connection and voltage is detected
TXD: TX indicator, turns on while the USB port is sending data
RXD: RX indicator, turns on while the device port is sending data back
CableBlack, PVC sheath, total length 1m
Onboard Original Chips

Adopts Original FT232RNL Chips, Providing Better Stability And Compatibility

Multiple systems support

Compatible with popular systems like Win7/8/8.1/10/11, Mac, Linux, Android...

Three LED Indicators

Easily checking the operating status, convenient for programming / debugging

Pinouts Definition
VCC3.3V or 5V output, configured by switch
GNDGround
TXDConnecting to MCU.RXD (signal direction: MCU.RX < < FT232 < < PC.TX)
RXDConnecting to MCU.TXD (signal direction: MCU.TX > > FT232 > > PC.RX)
RTSConnecting to MCU.CTS (signal direction: MCU.CTS < < FT232 < < PC.RST)
CTSConnecting to MCU.RTS (signal direction: MCU.RTS > > FT232 > > PC.CTS)
Outline dimensions

* The above dimensions are measured manually and may have some errors

Resources & ServicesWiki:www.waveshare.com/wiki/USB_TO_TTL_(C)Selection guide
PartnumberUSB TO TTLUSB TO TTL (B)USB TO TTL (C)USB TO TTL (D)
PRODUCT CATEGORYIndustrial USB TO TTL converterIndustrial USB TO TTL serial cable
ChipFT232CH343GFT232
Data rate300bps ~ 3Mbps50bps ~ 6Mbps300bps ~ 3Mbps
Hardware flowSupportedNot supported
OS supportWin7/8/8.1/10/11, Mac, Linux, Android
USB portConnector: USB-A Protection: resettable fuse, ESD protection
UART portConnector: 8PIN fool-proof header Protection: IO protection diodeConnector: separated 6pin female header Protection: IO protection diodeConnector: separated 4pin female header + SH1.0 3PIN fool-proof connector Protection: IO protection diode
IndicatorsPWR: power indicator, turns on when there is USB connection and voltage is detected TXD: TX indicator, turns on while the USB port is sending data RXD: RX indicator, turns on while the device port is sending data back

USB TO TTL (C) x1
