High Precision Handheld Signal Generator

SKU: FIT0778 Brand: DFRobot

Light brightness cannot be adjusted to be totally extinguished? Motors cannot be controlled to be stationary? Or the adjustable voltage cannot output 0V? Now for...

$45.25 AUD, inc GST

$41.14 AUD, exc GST

In stock, ships same business day if ordered before 2PM
Delivered by Wed, 27th of Nov

Quantity Discounts:

10-25 $39.90 (exc GST)
25+ $39.08 (exc GST)

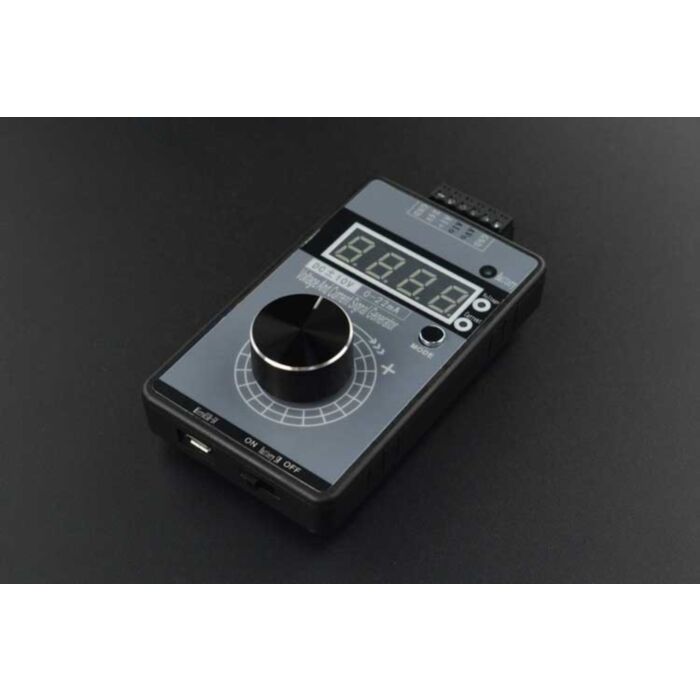

This handheld signal generator is a versatile tool that can be used for various tasks such as debugging motor rotation, controlling light brightness, and testing external modulation signal source hardware. It has two power supply methods, three adjustment modes, and a 4-digit highlight digital tube that displays data.

The device has the capability of current output, positive and negative voltage output, and a linear output with an accuracy level of 0.05V that can be calibrated. It is fully compatible with 2, 3, and 4-wire systems and comes with output short-circuit protection and power reverse connection protection mechanisms. Videos linked below showcase the product's accuracy and output capabilities, making it a valuable tool for anyone needing a reliable source of voltage and current signals.

Note: The manufacturer of this product makes it in two versions. One including a LiPo battery, the other not. Both have a switch on the bottom for the battery. We stock the version without the battery. If you feel capable, you can open it up and solder in a suitable battery.

Specification

Power Supply: Micro USB-5V, external DC15-30V
Output Voltage: -10~+10V
Output Current: 0~22mA
Voltage Accuracy: 0.05V
Current Accuracy: 0.05mA
Protection Mechanism: output short circuit protection, power supply reverse connection protection
Size: 100*60*20mm / 3.94*2.36*0.79inches

Documents

Parts List

High Precision Handheld Signal Generator x1
Micro USB Cable x1
Screwdriver x1
User Manual x1
Accessories Pack (Alligator clip, connector, etc) x1
