FeatherWing OLED - 128x32 OLED Add-on For All Feather Boards

SKU: ADA2900

$25.00 AUD, inc GST
$22.73 AUD, exc GST
FeatherWing OLED - 128x32 OLED Add-on For All Feather Boards
25 AUD

SKU: ADA2900

$25.00 AUD, inc GST
$22.73 AUD, exc GST
2 reviews 0 5 4.5

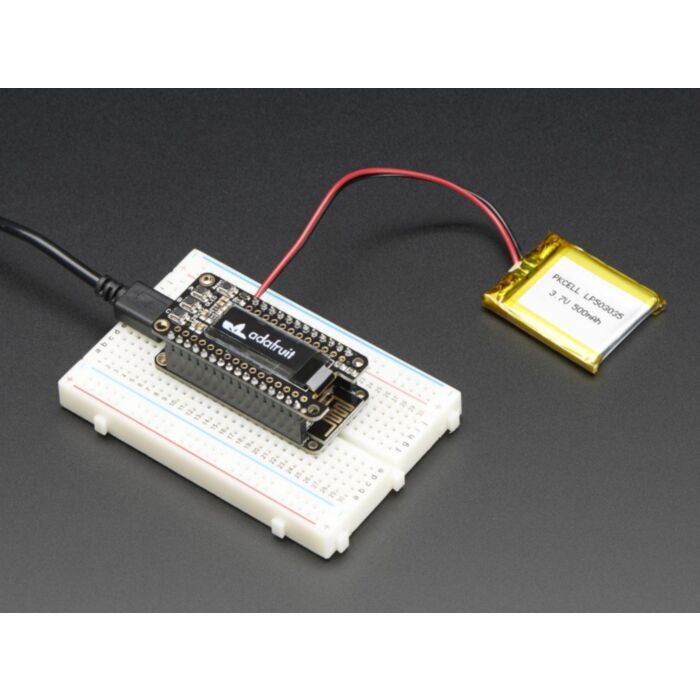

A Feather board without ambition is a Feather board without FeatherWings! This is the FeatherWing OLED: it adds a 128x32 monochrome OLED plus 3 user buttons to any Feather main board. Using Adafruit's Feather Stacking Headers or Feather Female Headers you can connect a FeatherWing on top of your Feather board and let the board take flight!

These displays are small, only about 1" diagonal, but very readable due to the high contrast of an OLED display. This screen is made of 128x32 individual white OLED pixels and because the display makes its own light, no backlight is required. This reduces the power required to run the OLED and is why the display has such high contrast; Adafruit really like this miniature display for its crispness! They also toss on a reset button and three mini tactile buttons called A B and C so you can add a mini user interface to your feather.

Tested works with Adafruit's Feather 32u4, M0 and ESP8266 boards. The OLED uses only the two I2C pins on the Feather, and you can pretty much stack it with any other FeatherWing, even ones that use I2C since that is a shared bus. To use, simply follow Adafruit's tutorial to install Adafruit's Arduino library, its basically a Feather-shaped version of the 128x32 I2C OLED breakout

Check out Adafruit's range of Feather boards here.

Technical Details

This product is listed in:

Documentation and Resources:
  • Hello World with the OLED FeatherWing
  • The OLED Featherwing by Adafruit is a particularly interesting Wing; it gives you a 128x32 monochrome OLED display right on top of your feather board. There's also three buttons to use that are internally connected to your MCU and accessible via the ...
  • Wings of the Feather
  • The Feather boards are the brains of your project, we took a closer look at the different models in our Birds of Feather article, check that out first (especially if you have no idea what the difference is between a feather and a wing). You can plug ...
  • The Maker Revolution
  • The Maker Revolution celebrates the creation of new devices and the modification of existing ones - the transition from a consumer buying goods to eventually having a major part in their creation. The Maker Revolution places strong emphasis on free (...
  • Wi-Fly with Feather Boards
  • I’ll level with you; the idea of microcontrollers and wireless networks was a little daunting to me initially. How on earth was I going to connect and control it with Wi-Fi?! But when I eventually I waded into the world of networking microcontr...
  • Boards of a Feather
  • Have you ever used an Arduino board, and wanted to hook it straight up to a JST connected LiPo battery but knew it wouldn’t work? Or maybe you wanted a microcontroller with built-in wireless capabilities? Well, Adafruit has developed their fam...

Product Comments


Customer Reviews

  1. Review by Chris verified purchaser
    Rating
    80

    I like this add-on for Feather. A little bit limited by the 128x32 size, but the three included momentary buttons are nifty. Struggling to get it to work with the Adafruit GPS add-on though. (Posted on 29/06/2017)

  2. Review by Terry verified purchaser
    Rating
    100

    Worked well out of the box. Very bright! Not too current hungry and libraries from Adafruit allow it to be dimmed. Good size for my smartwatch project. (Posted on 17/04/2017)
