DRV8834 Low-Voltage Stepper Motor Driver Carrier (Header Pins Soldered)

SKU: POLOLU-2874 Brand: Pololu

This version of our DRV8834 Low-Voltage Stepper Motor Driver Carrier ships with male header pins installed, so no soldering is required to use it with an...

$15.90 AUD, inc GST

$14.45 AUD, exc GST

Available with a lead time
Expect dispatch between Dec 26 and Dec 30

Quantity Discounts:

10-25 $13.87 (exc GST)
25+ $13.45 (exc GST)

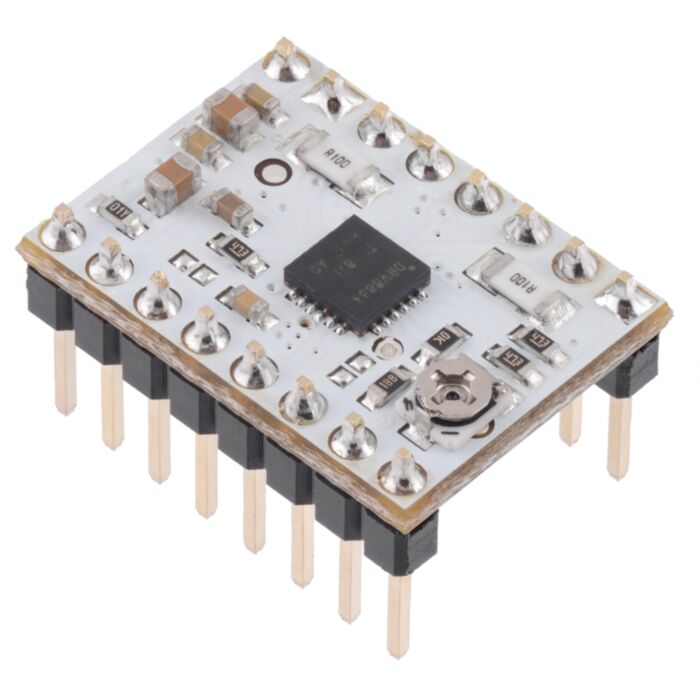

This version of Pololu's DRV8834 Low-Voltage Stepper Motor Driver Carrier ships with male header pins installed as shown in the main product picture, so no soldering is required to use it with an appropriate 16-pin socket or solderless breadboard. Please see the DRV8834 Low-Voltage Stepper Motor Driver Carrier product page for more information about the driver.

People often buy this product together with:

Custom Laser Cutting Service

Dimensions

Size:	0.6" × 0.8"
Weight:	2.5 g

General specifications

Minimum operating voltage:	2.5 V
Maximum operating voltage:	10.8 V
Continuous current per phase:	1.5 A¹
Maximum current per phase:	2 A²
Minimum logic voltage:	2.5 V³
Maximum logic voltage:	5.5 V³
Microstep resolutions:	full, 1/2, 1/4, 1/8, 1/16, and 1/32
Reverse voltage protection?:	N
Header pins soldered?:	Y

Identifying markings

PCB dev codes:	md22a
Other PCB markings:	0J7097

Notes:

1: Without a heat sink or forced air flow.
2: With sufficient additional cooling.
3: This driver works with 2.5 V to 5.25 V logic. It does not take an external logic power supply.

File downloads

DRV8834 low-voltage stepper motor driver carrier schematic diagram (105k pdf)

Printable schematic diagram for the DRV8834 low-voltage stepper motor driver carrier.
Dimension diagram of the DRV8834 Low-Voltage Stepper Motor Driver Carrier (215k pdf)
3D model of the DRV8834 Low-Voltage Stepper Motor Driver Carrier (3MB step)
Drill guide for DRV8834 Low-Voltage Stepper Motor Driver Carrier (38k dxf)

This DXF drawing shows the locations of all of the board’s holes.

Recommended links

Texas Instruments DRV8834 stepper motor driver datasheet
Video: setting the current limit on Pololu stepper motor driver carriers
Texas Instruments DRV8834 product page

Texas Instruments product page for the DRV8834, where you can find the latest datasheet and additional resources.
Arduino library for A4988, DRV8825, DRV8834, DRV8880

This Arduino library, written by forum member laurb9, allows users to control a stepper motor with Pololu's A4988, DRV8825, or DRV8834 carriers. The library has functions that enable users to set rotational rate, change microstepping mode, and specify how many steps to take or specify how many degrees to rotate.
