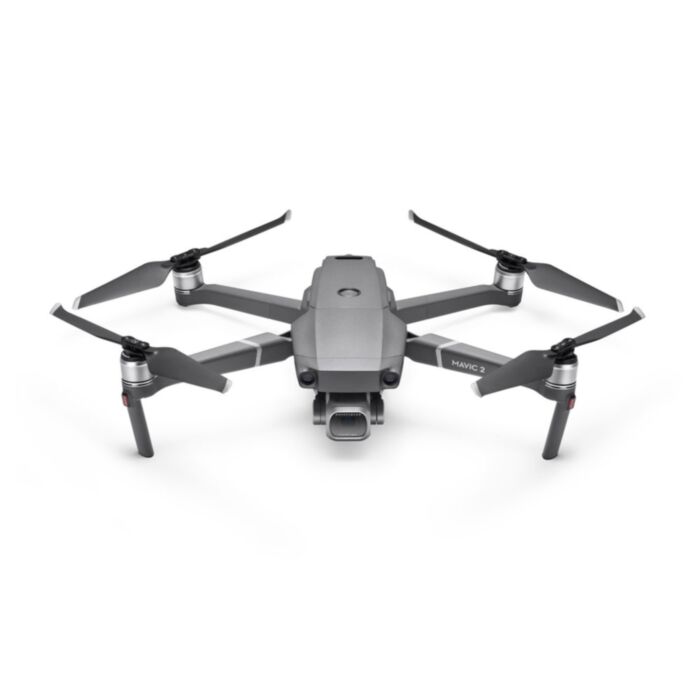

DJI Mavic 2 Pro

See the bigger picture

The latest flagship consumer drone from DJI

Features

• Hasselblad L1D-20c Camera Iconic Image Quality
• 20MP 1"CMOS Sensor
• Adjustable Aperture, f/2.8 - f/11
• 10-bit Dlog-M colour profile
• 1-bit HDR Video

Foldable and Portable - Create wherever you go

OcuSync 2.0 Digital Video Transmission System

Explore more of the world smoothly and safely

• 8km 1080p live video
• 2.4/5.8 GHz real-time auto switching
• 40 Mbps download speed
• 120ms low latency

DJI Smart Controller

DJI Smart Controller comes with a 5.5inch 1080p built-in Ultra bright monitor that maintains clear visibility and vivid colours even in direct sunlight. The DJI GO 4 app is built into the screen and also supports third-party apps. It can easily transfer your aerial photos and videos from the DJI Smart Controller to your mobile device using the DJI Go 4 app's new GO Share function. Boot up time is 20~30s minimal and users can get in the air in a matter of seconds.

• Twice as bright as conventional smart devices at 1000 cd/m²
• HDMI port and Micro SD card slot
• Go Share function
• -20°C - 40°C operating temperature

Fly Faster, Longer, and Quieter

• 31min - currently the longest flight time for a consumer drone 72kph max speed in Sport mode (no wind conditions)
• Features DJI low-noise flight technology

Omnidirectional Obstacle Sensing

• Obstacle sensors on all sides of the aircraft
• Advanced Pilot Assistance Systems (APAS) allow the aircraft to actively avoid obstacles in from of and behind it.
• Additional Bottom Auxiliary Light for low-light conditions, which assists the downward sensors.

Omnidirectional Obstacle Sensing includes left/right, up/down, and forward/backward obstacle sensing. Sensing for the left/right directions is only available in ActiveTrack or Tripod Mode. Omnidirectional obstacle sensign does not fully cover the circumference of a 360-degree arc. The left/right obstacle sensing system only works in specific modes and environments. DJI warranty does not cover any loss caused by crashing when flying left or right, even when ActiveTrack or Trip[od Mode is activated. Please be aware of your surroundings and App notifications when operating the Mavic 2 to ensure safety.

3-Axis Gimbal

The Mavic 2's 3-axis gimbal provides smooth, stable footage in just about any situation.

Excellent Imaging System - Hasselblad technology

Co-engineered in partnership with Hasselblad after two years of tireless research, the Mavic 2 Pro comes equipped with the all-new Hasselblad L1D-20c camera, which possesses Hasselblad's unique Hasselblad Natural Colour Solution (HNCS), helping user capture gorgeous 20-megapixel aerial shots in stunning colour detail.

1-inch CMOS Sensor

The brand new 1-inch CMOS sensor has an active sensing area four times more effective than the original Mavic Pro, capturing more information in every pixel for better dynamic range, signal-to-noise ratio, and low-light performance.

10-bit Dlog-M Colour Profile

The Mavic 2 Pro supports a 10-bit Dlog-M Colour Profile that yields a higher dynamic range for more flexibility in the grading room.

Adjustable Aperture

An f/2.8-f/11 adjustable aperture gives you more flexibility in handling different light conditions

Hyperlapse

With Hyperlapse, the aircraft shoots stable aerial shots and process them automatically, JPEG and RAW photos can be simultaneously saved on a microSD, leaving more room for post-editing.

HyperLight

Hyperlight photos provide a low-light setting to enhance your images while drastically reducing noise.

H.265 Codec for Higher Quality Video

Both editions support the advanced H.265/HVEC codec, which maintains 50% more information than videos in H.264/AVC, preserving more details.

ActiveTrack 2.0

With the improvements of both hardware and software, ActiveTrack 2.0 gives you a great tracking experience at a whole new level.

Precise recognitions
Now with 2.0, the Mavic 2 maps a 3D view of the environment through the main camera and forward dual vision sensors for greater recognition and accuracy.

Trajectory Prediction
Trajectory prediction algorithms help to maintain tracking when your subject is temporarily blocked by an obstruction.

High-Speed tracking
In open and unobstructed environments, the Mavic 2 can track fast-moving subjects like cars and boats at speeds up to 72kph. Obstacle sensing is not available during high-speed tracking.

Avoiding Obstacles
When tracking a target, the Mavic 2 can plan a flight path on its 3D map. It will read, recognise and avoid obstacles in front of and behind the aircraft, all while shooting your target without interruption.

MAVIC 2 PRO CAMERA TECHNICAL SPECS

Sensor
1” CMOS
Effective Pixels: 20 million

Lens
FOV: about 77°
35 mm Format Equivalent: 28 mm
Aperture: f/2.8–f/11
Shooting Range: 1 m to ∞

ISO Range
Video:100-6400
Photo:100-3200 (auto), 100-12800 (manual)

Shutter Speed
Electronic Shutter: 8–1/8000s

Still Image Size
5472×3648

Still Photography Modes
Single shot
Burst shooting: 3/5 frames
Auto Exposure Bracketing (AEB): 3/5 bracketed frames at 0.7 EV Bias
Interval (JPEG: 2/3/5/7/10/15/20/30/60s RAW:5/7/10/15/20/30/60s)

Video Resolution
4K: 3840×2160 24/25/30p
2.7K: 2688×1512 24/25/30/48/50/60p
FHD: 1920×1080 24/25/30/48/50/60/120p

Max Video Bitrate
100Mbps

Colour Mode
Dlog-M (10bit), support HDR video (HLG 10bit)

Supported File Format
FAT32 (≤ 32 GB)
exFAT (> 32 GB)

Photo Format
JPEG / DNG (RAW)

Video Format
MP4 / MOV (MPEG-4 AVC/H.264, HEVC/H.265)

AIRCRAFT SPECIFICATIONS

Takeoff Weight
Mavic 2 Pro: 907 g
Mavic 2 Zoom: 905g

Dimensions
Folded: 214×91×84 mm (length×width×height)
Unfolded: 322×242×84 mm (length×width×height)

Diagonal Dimensions
354 mm

Max Ascent Speed
5 m/s (S-mode)
4 m/s (P-mode)

Max Descent Speed
3 m/s (S-mode)
3 m/s (P-mode)

Max speed (Near sea level, no wind)
72 kph (S-mode)

Max Service ceiling above sea level
6000 m

Max Flight Time (No Wind)
31 minutes (at a consistent 25 kph)

Max Hovering Time (No Wind)
29 minutes

Max Flight Distance (No Wind)
18 km (at a consistent 50 kph)

Max Wind Speed Resistance
29–38 kph

Max Tilt Angle
35° (S-mode, with remote controller) 25° (P-mode)

Max Angular Velocity
200°/s

Operating Temperature Range
-10°C – 40°C

Operating Frequency
2.400 – 2.483 GHz
5.725 – 5.850 GHz

Transmission Power (EIRP)
2.400 – 2.483 GHz
FCC：≤26 dBm
CE：≤20 dBm
SRRC：≤20 dBm
MIC：≤20 dBm
5.725-5.850 GHz
FCC：≤26 dBm
CE：≤14 dBm
SRRC：≤26 dBm

GNSS
GPS+GLONASS

Hovering Accuracy Range
Vertical:

• ± 0.1 m (when vision positioning is active)
• ± 0.5 m (with GPS positioning)

Horizontal:

• ± 0.3 m (when vision positioning is active)
• ± 1.5 m (with GPS positioning)

Internal Storage
8 GB

GIMBAL SPECIFICATIONS

Mechanical Specifications
Tilt: -135–45° Pan: -100–100°

Controller Range
Tilt: -90–30° Pan: -75–75°

Stabilization
3-axis (tilt, roll, pan)

Max Controller speed (Tilt)
120° /s

Angular Vibration Range
±0.01°

REMOTE CONTROLLER

Operating Frequency
2.400 – 2.483 GHz; 5.725 – 5.850 GHz

Max Transmission Distance (Unobstructed, free of interference)
2.400 – 2.483 GHz; 5.725 – 5.850 GHz
FCC: 8000 m
CE: 5000 m
SRRC: 5000 m
MIC: 5000 m

Operating Temperature Range
0℃ – 40℃

Transmission Power
(EIRP) 2.400 – 2.483 GHz
FCC: ≤26 dBm
CE: ≤20 dBm
SRRC: ≤20 dBm
MIC: ≤20 dBm
5.725-5.850 GHz
FCC: ≤26 dBm
CE: ≤14 dBm
SRRC: ≤26 dBm

Battery
3950 mAh

Operating Current/Voltage
1800 mA ⎓ 3.83 V

Supported Mobile Device Size
Max length: 160 mm; max thickness: 6.5–8.5 mm

Supported USB Port Types
Lightning, Micro USB (Type-B), USB-C

INTELLIGENT FLIGHT BATTERY

Capacity
3850 mAh

Voltage
15.4 V

Max Charging Voltage
17.6 V

Battery Voltage
LiPo 4S

Energy
59.29 Wh

Net Weight
297 g

Charging Temperature Range
5℃ – 40℃

Max Charging Power
80 W

SUPPORTED SD CARDS
Micro SD™
Supporting Micro SD with capacity up to 128 GB and R/W speed up to UHS-I Speed Grade 3
